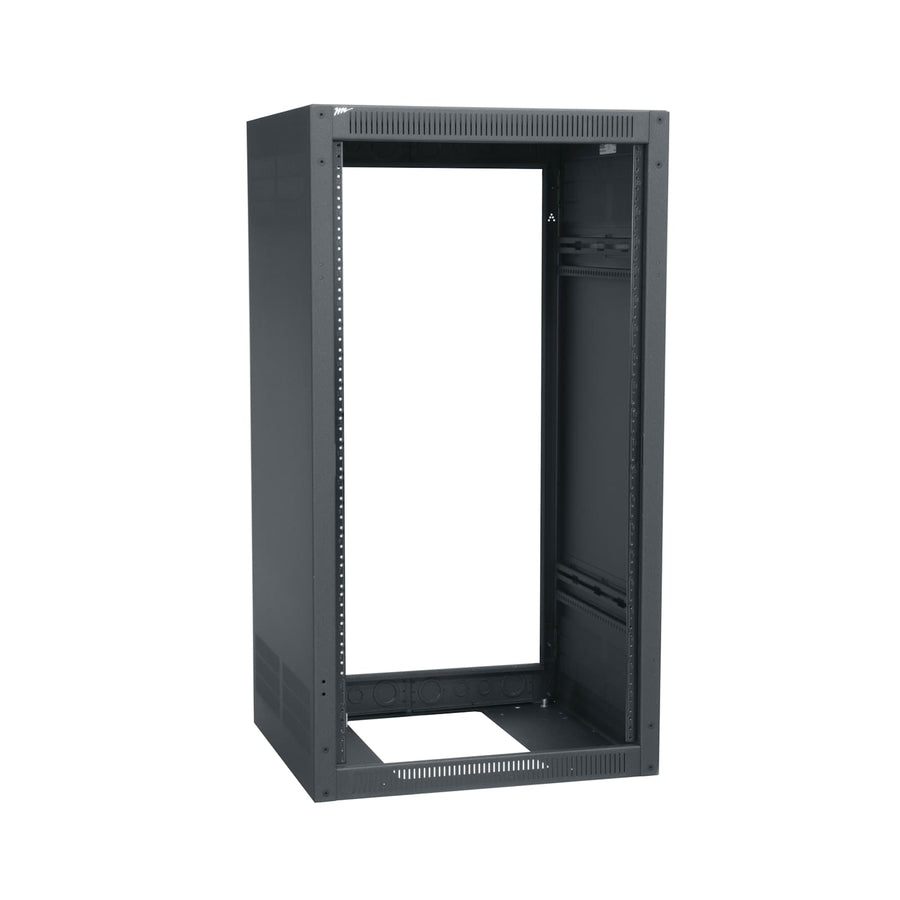

18 RU ERK Series Rack, 20 Inches Deep without Rear Door
18 RU floor-standing rack, 20" deep, featuring a fully welded steel construction and seismic rating
The ERK-1820LRD is an 18 RU floor-standing rack designed for professional AV installations requiring a reliable, standalone enclosure. This frame-only configuration features a 20 in (50.8 cm) depth and a usable depth of 18.47 in (46.9 cm). Built with fully welded steel construction, the unit supports a UL listed load capacity of 2500 lbs (1,134 kg). For high-traffic or high-risk environments, this rack is seismic rated with a seismic load capacity of 597 lbs (270.8 kg). The 19 in (48.3 cm) panel width utilizes standard front adjustable 10-32 threaded rackrails with numbered spaces to simplify equipment mounting. Thermal management is aided by top and bottom venting in the rack sides, and cable organization is simplified via integrated lacing points and slotted rackrail brackets. This TAA compliant unit is finished in a black wrinkle powder coat.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 20 in (50.8 cm) |
| Height | 35.63 in (90.5 cm) |
| Panel Width | 19 in (48.3 cm) |
| Product Weight | 48.1 lbs (21.8 kg) |
| Rack Units | 18 RU |
| Shipping Weight | 80 lbs (36.3 kg) |
| UL Load Capacity | 2500 lbs (1,134 kg) |
| Usable Depth | 18.47 in (46.9 cm) |
All other specifications 15
| Usable Height | 31.63 in (80.3 cm) |
| Width | 22 in (55.9 cm) |
| Color | Black |
| Federal Ops Country of Origin | USA |
| Finish | Black Wrinkle Powder Coat |
| Material | Steel |
| Product Configuration | Frame Only |
| Rack Rail Type | 10-32 |
| Rear Door | No |
| Seismic Rated | Yes |
| Ships Flat | No |
| TAA Compliant | Yes |
| UPC | 656747006159 |
| Certifications | ASCETAAUL Listed |
| Seismic Load Capacity | 597 lbs (270.8 kg) |
Resources
You'll need these with it
PDT Low Profile Vertical Power Strip, 16 Outlet, 20A
PDT-1620C-NS$351.90
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
PD Slim High Density Vertical Power Strip, 8 Outlet, 15A, Basic Surge Protection - 10 ft Cord
PD-815SC$210.60
2 RU Select Series UPS Backup Power, 2200VA
UPS-S2200R$1,935.00
Dual LED Work Light with Interconnect Cable
LT-CABUTL-DUAL$333.00
115V Fan 4 1/2 Inch, 50 CFM at 30dBA
QFAN$136.80
1 RU Adjustable Rackshelf 16 Inches to 26 Inches Deep
VSA-1626$211.50
Leveling Feet Isolating
LF-ISO$55.80
18 RU Vented Front Door for DWR and ERK Racks, 64% Open
LVFD-18$501.30
Caster Base for 20 Inch Deep ERK Series - 700 pounds
CBS-ERK-20R$356.40
PDT Low Profile Vertical Power Strip, 6 Outlet, 15A
PDT-615C-NS$232.20
Select Series UPS Backup Power Systems - UPS-SRBP-500
UPS-SRBP-500$351.00
Questions about this part
Will the ERK-1820LRD work in a seismic environment?
Yes, this rack is seismic rated with a seismic load capacity of 597 lbs (270.8 kg) when installed with ERK-Z4 brackets.
What accessories are needed to convert this to a full enclosure?
You can add a LVFD-18 vented front door or other ERK Series doors to complete the enclosure.
Does this rack include a rear door or power strip?
This specific SKU is a frame-only configuration without a rear door. PDT or NEXSYS power strips, such as the PDT-615C-NS, must be purchased separately.
What is the maximum load this rack can support?
The ERK-1820LRD is UL listed with a 2,500 lbs (1,134 kg) load capacity.
Can I add casters to this rack?
Yes, the ERK-1820LRD is compatible with the CBS-ERK-20R Caster Base for 20 inch deep units.
