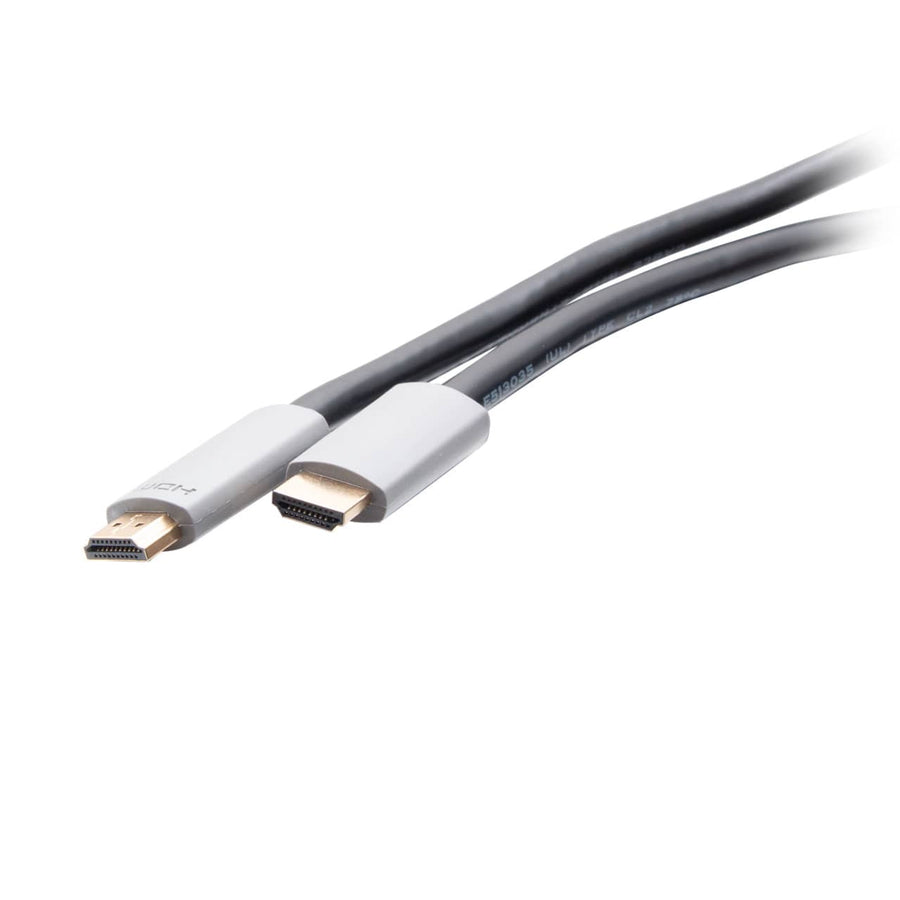

16.5ft (5m) Plus Series Select High Speed HDMI® Cable with Ethernet
16.5ft High Speed HDMI® cable with Ethernet, CL2 rated for in-wall installations and 4K @ 60Hz support
The C2G CG50631 is a 16.5ft (5m) High Speed HDMI® Cable designed for connecting multimedia source devices in desktop or commercial audio-video applications. This cable is specifically engineered for in-wall installations, featuring a CL2 rated jacket to meet safety requirements for concealed cabling. It supports high-bandwidth video with a data transfer rate of 18 GBPS and a video resolution of 4K @ 60Hz. For audio performance, it supports up to 32 audio channels to provide an immersive experience. The cable includes Ethernet support and CEC extensions, allowing for the control of consumer electronics through a single point. Constructed with gold-plated connectors to enhance electrical conductivity and durability, this cable is a reliable solution for professional AV environments. The 0.35 in (8.8 mm) diameter and 3.46 in (88 mm) bend radius make it suitable for various deployment scenarios.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bend Radius | 3.46 in (88 mm) |
| Cable Diameter | 0.35 in (8.8 mm) |
| Cable Length | 16.5 ft (5 m) |
| Package Count | 1 |
| Shipping Weight | 1.05 lbs (0.5 kg) |
| Cable Type | High Speed HDMIVideo |
| Color | Black |
| Connector 1 | (1) HDMI Male |
All other specifications 10
| Connector 2 | (1) HDMI Male |
| HDMI Type | High Speed |
| Jacket Application | In-Wall Rated |
| Jacket Rating | CL2 Rated |
| Signal Type | HDMI |
| TAA Compliant | No |
| Video Resolution | 4K @ 60Hz |
| Certifications | NDAA 889Prop 65REACHRoHSTSCA |
| Data Transfer Rate | 18 GBPS |
| Warranty | Lifetime |
Resources
You'll need these with it
HDMI HDBaseT + RS232 and IR over Cat Extender Box Transmitter to Box Receiver (18Gbps) - 4K 60Hz
C2G30026$503.99
HDMI Over Cat5/6 Extender up to 164ft (50m)
CG60180$198.99
HDMI® HDBaseT + USB-C® Data and Video Over Cat Extender Wall Plate Transmitter to Box Receiver – 4k
C2G31029$725.99
4-Port HDMI® Distribution Amplifier Splitter - 4K 30Hz
CG41058$132.99
HDMI® HDBaseT + RS232 and IR over Cat Extender Single Gang Wall Plate Transmitter to Ultra-Slim Box Receiver - 4K 60Hz
C2G30025$470.99
HDMI over Cat Extender Box Transmitter to Box Receiver - 4K 60Hz
C2G60220$266.99
HDMI® Male to VGA Female Adapter Converter Dongle
CG41350$58.99
2-Port HDMI® Distribution Amplifier Splitter - 4K 30Hz
CG41057$88.99
2-Port HDMI® Distribution Amplifier Splitter - 4K 60Hz
C2G41600$190.99
Questions about this part
Is the C2G CG50631 safe for in-wall installation?
Yes, this cable features a CL2 rated jacket designed specifically for in-wall installation requirements.
What video resolution does the CG50631 support?
This High Speed HDMI® cable supports 4K @ 60Hz resolution and maintains a data transfer rate of 18 GBPS.
Can I use this cable for CEC device control?
Yes, the cable supports CEC extensions, which allows you to control multiple consumer electronics devices through a single control point.
What is the bend radius for this HDMI cable?
The CG50631 has a minimum bend radius of 3.46 in (88 mm) with a cable diameter of 0.35 in (8.8 mm).
Does this cable include HDMI Ethernet?
Yes, the CG50631 is a High Speed HDMI cable that includes Ethernet functionality for multimedia connectivity.
