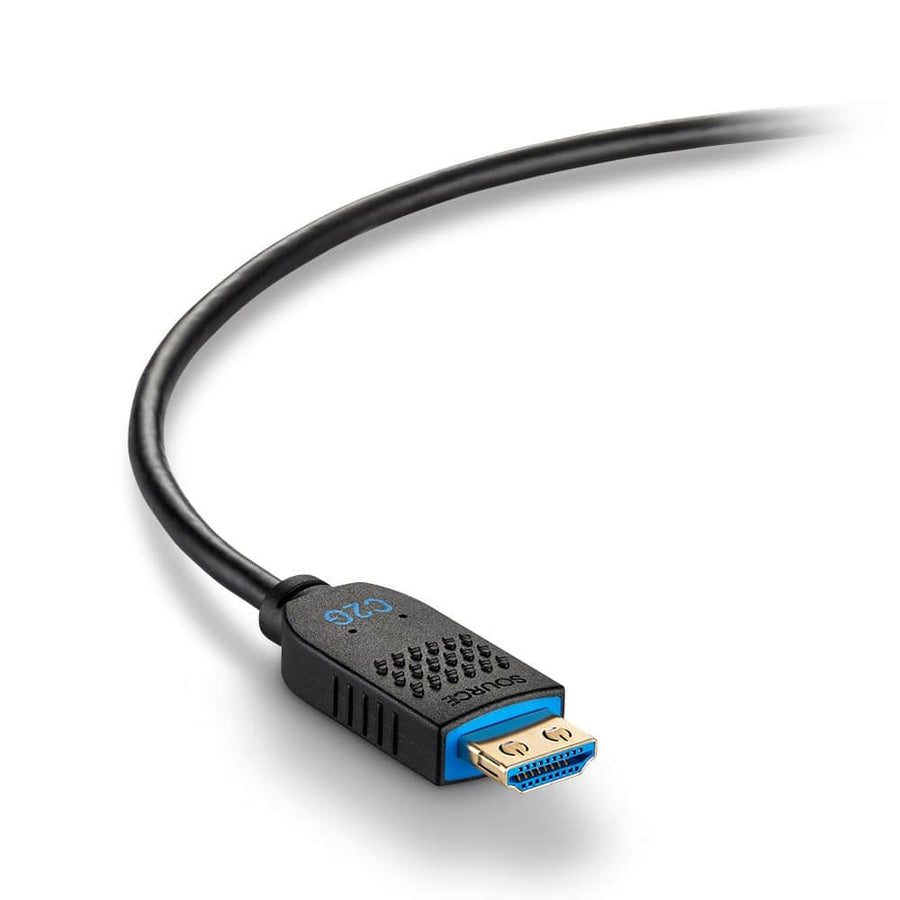

125ft (38.1m) Performance Series AOC High Speed HDMI® Cable
125ft (38.1m) Active Optical HDMI cable supporting 4K @ 60Hz with a plenum-rated jacket
The C2G41487 is a 125 ft (38.1 m) Performance Series Active Optical (AOC) High Speed HDMI® Cable designed for high-performance video transmission in demanding environments. This cable supports video resolutions up to 4K (4096 x 2160) at 60Hz, utilizing an 18 GBPS data transfer rate to maintain signal integrity. Because it uses fiber strand construction, it significantly reduces the risk of EMI/RFI interference, making it a reliable choice for data centers, manufacturing facilities, or surgical theaters where stable, high-resolution displays are essential. This specific SKU features a plenum-rated jacket, allowing for safe installation in the space above dropped ceilings or beneath raised floors in commercial buildings like schools and hospitals. The cable is directional; the source connector is clearly labeled and tagged to distinguish it from the display connector. To ensure ease of use during installation and maintenance, the connectors feature integrated finger grips and a gripping shell that provides 2x greater port retention.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bend Radius | 2.95 in (75 mm) |
| Cable Diameter | 0.22 in (5.5 mm) |
| Cable Length | 125 ft (38.1 m) |
| Shipping Weight | 4.74 lbs (2.2 kg) |
| Cable Type | HDMI |
| Color | Black |
| Connector 1 | (1) HDMI Male |
| Connector 2 | (1) HDMI Male |
All other specifications 9
| HDMI Type | Active Optical |
| Jacket Rating | Plenum Rated |
| Signal Type | HDMI |
| TAA Compliant | No |
| UPC | 757120414872 |
| Video Resolution | 4K @ 60Hz |
| Certifications | NDAA 889Prop 65REACHRoHSTSCA |
| Data Transfer Rate | 18 GBPS |
| Warranty | 5 years |
Resources
You'll need these with it
20ft (6.1m) Performance Series Ultra Flexible Active High Speed HDMI® Cable with Ethernet
C2G10381$121.99
4-Port HDMI® Distribution Amplifier Splitter - 4K 30Hz
CG41058$132.99
HDMI® HDBaseT + RS232 and IR over Cat Extender Single Gang Wall Plate Transmitter to Ultra-Slim Box Receiver - 4K 60Hz
C2G30025$470.99
2-Port HDMI® Distribution Amplifier Splitter - 4K 60Hz
C2G41600$190.99
HDMI Over Cat5/6 Extender up to 164ft (50m)
CG60180$198.99
HDMI over Cat Extender Box Transmitter to Box Receiver - 4K 60Hz
C2G60220$266.99
HDMI® HDBaseT + USB-C® Data and Video Over Cat Extender Wall Plate Transmitter to Box Receiver – 4k
C2G31029$725.99
HDMI® Male to VGA Female Adapter Converter Dongle
CG41350$58.99
2-Port HDMI® Distribution Amplifier Splitter - 4K 30Hz
CG41057$88.99
Questions about this part
Will this C2G41487 cable work for 4K video?
Yes, this cable supports High Speed resolutions up to 4K (4096 x 2160) at 60Hz with an 18 GBPS data transfer rate.
Can I run this HDMI cable in a plenum space?
Yes, this model features a plenum-rated jacket designed for installation in spaces above dropped ceilings or beneath raised floors in commercial buildings.
Is the C2G41487 cable directional?
Yes, this is a directional cable. The source connector is specifically labeled and tagged to ensure correct installation at the display and source ends.
What is the bend radius for this cable?
The minimum bend radius for this 125 ft (38.1 m) cable is 2.95 in (75 mm).
How do I differentiate the source and display ends?
The connectors include integrated finger grips for easy handling, and the source connector is explicitly labeled and tagged for easy identification.
