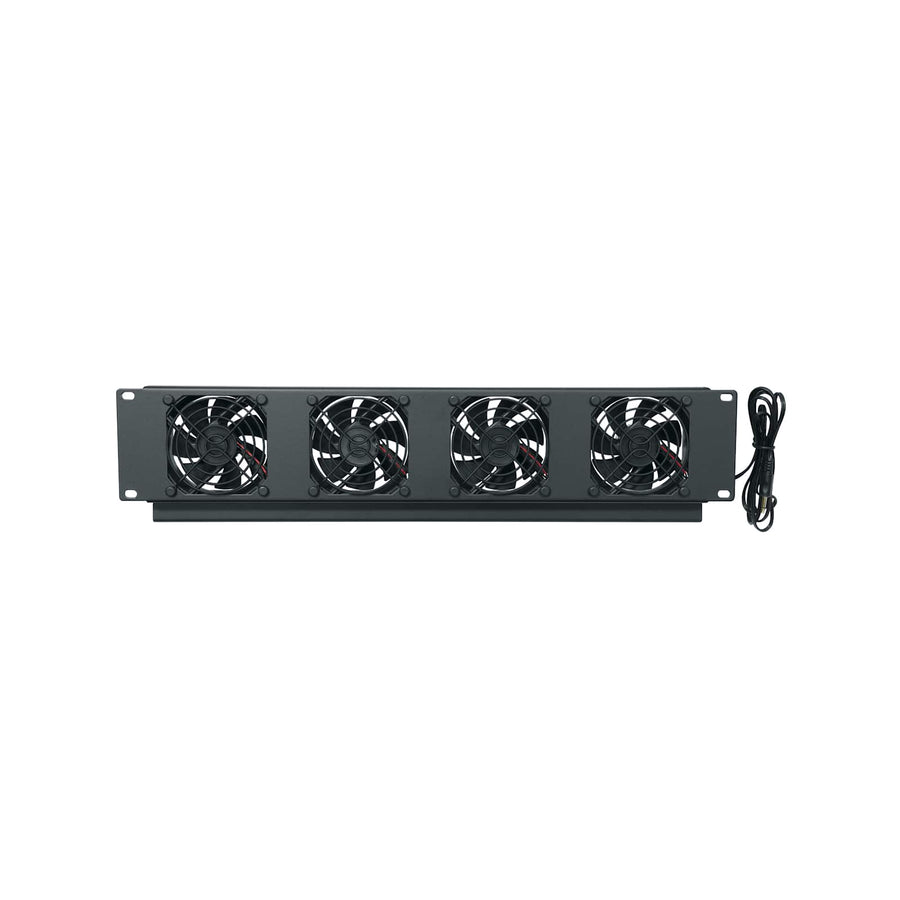

100 CFM DC Fan Kit for BRK Series Racks, 220 - 240VAC
Active DC fan kit for BRK series laminate racks, providing 100 CFM of intelligent thermostatic cooling
The IDCFANKIT-4 is a 100 CFM DC Fan Kit engineered specifically for cooling Middle Atlantic laminate racks within the BRK Series. This active component type provides intelligent cooling through integrated thermostatic control, ensuring efficient thermal management when heat levels rise. Designed for installation in the top of the Rear Access Panel, this 19 in (48.3 cm) wide kit is optimized for the BRK Series environment. It operates on a 220-240VAC input voltage and is TAA compliant for international projects. This kit is a critical thermal management solution for system integrators looking to protect sensitive equipment within enclosed BRK Series enclosures.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| AC Voltage Input | 220-240 V |
| CFM | 100 |
| Depth | 1.21 in (3.1 cm) |
| Height | 3.5 in (8.9 cm) |
| Product Weight | 2 lbs (0.9 kg) |
| Shipping Weight | 3 lbs (1.4 kg) |
| Volts DC | 12 VDC |
| Width | 19 in (48.3 cm) |
All other specifications 6
| Available Internationally | Yes |
| Base Series | BRK |
| Component Type | Active |
| Manufacturer | Middle Atlantic |
| Power Type | DC |
| UPC | 656747104367 |
Resources
You'll need these with it
NEXSYS™ 9 Outlet, 20 Amp Rackmount Power with Multi-Stage Surge Protection
PDX-920R$433.80
1 RU Brush Grommet Panel
BR1$86.40
NEXSYS™ 9 Outlet, 20 Amp Rackmount Power with Series Surge Protection
PDX-920R-SP$1,108.80
NEXSYS™ 9 Outlet, 15 Amp Rackmount Power with Series Surge Protection
PDX-915R-SP$907.20
NEXSYS™ 2 Outlet, 15 Amp Compact Power with Multi-Stage Surge Protection
PDX-215C$262.80
Compact Premium+ PDU With RackLink™, 4 Outlet 15A & 2-Stage Surge
RLNK-P415$1,360.80
1 RU Select Series UPS Backup Power, 1000VA
UPS-S1000R$1,377.00
Rackmount Power, 9 Outlet, 15A, Basic Surge Protection - 9 ft Cord
PD-915R$223.20
Premium+ PDU With RackLink™, 9 Outlet 20A Series Protection Surge
RLNK-P920R-SP$2,318.40
2 RU Select Series UPS Backup Power, 2200VA
UPS-S2200R$1,935.00
Questions about this part
Which rack series is the IDCFANKIT-4 compatible with?
This fan kit is designed specifically for use with Middle Atlantic BRK Series laminate racks.
How is the airflow managed in this fan kit?
The kit provides intelligent cooling via thermostatic control, delivering 100 CFM of airflow in free air conditions.
Where does the IDCFANKIT-4 mount inside the rack?
This unit is designed to be mounted in the top of the Rear Access Panel.
What is the required input voltage for this kit?
The IDCFANKIT-4 requires a 220-240VAC input voltage for operation.
What documentation is available for installation?
The MBRK-BRK Fan Kit Instruction Sheet (PDF) is available for technical guidance during installation.
