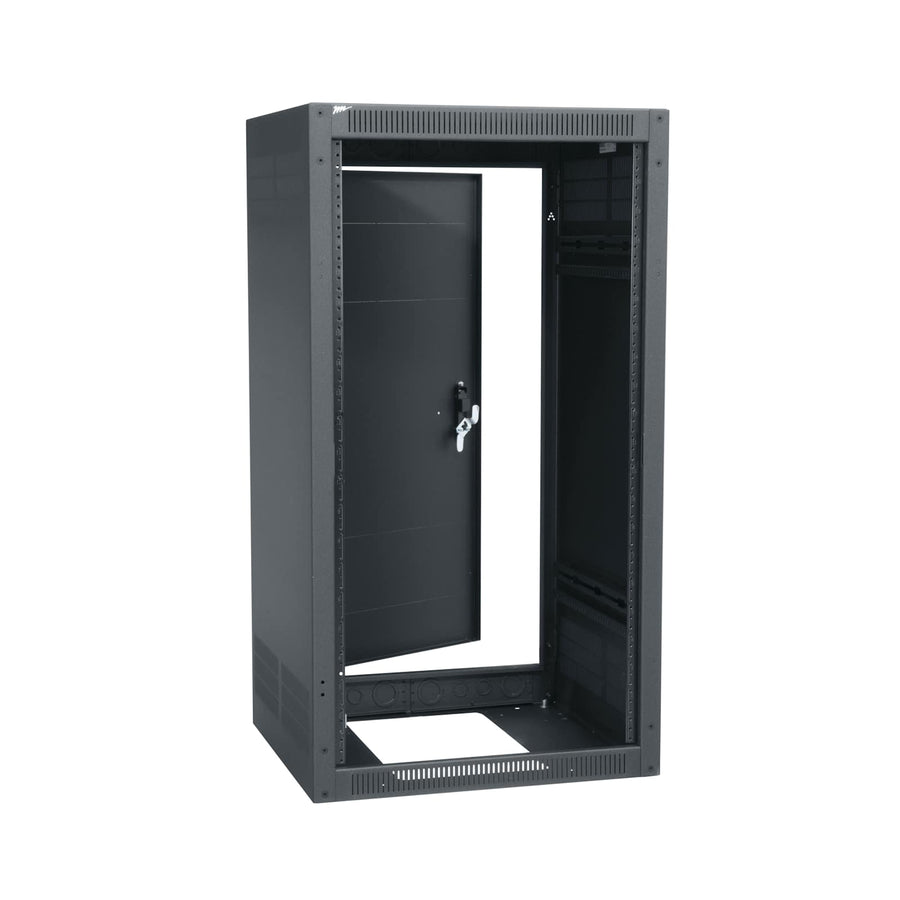

10 RU ERK Series Rack, 25 Inches Deep, Knockdown
10 RU floor-standing knockdown rack, 25 inches deep, with 1000 lbs UL load capacity and a key-locked rear door
The Middle Atlantic ERK-1025KD is an economical, standalone floor-standing rack designed for professional AV environments. This 10 RU series enclosure features a 25 in (63.5 cm) depth with a usable depth of 23.47 in (59.6 cm) and a usable height of 17.5 in (44.5 cm). Built from steel with a black wrinkle powder coat finish, the frame-only configuration is designed as a ready-to-assemble knockdown unit that ships flat to reduce logistics complexity. The rack includes a key-locked standard rear door for equipment security. For thermal management, the sides feature integrated top and bottom venting to support passive airflow. Cable management is facilitated through slotted rackrail brackets and convenient lacing points. The standard front adjustable 10-32 threaded rackrails include numbered spaces for rapid equipment installation. This TAA compliant, UL listed rack is also capable of being ganged to create partitioned multi-bay installations for enhanced security and controlled thermal management.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 25 in (63.5 cm) |
| Height | 21.63 in (54.9 cm) |
| Panel Width | 19 in (48.3 cm) |
| Rack Units | 10 RU |
| Shipping Weight | 65 lbs (29.5 kg) |
| UL Load Capacity | 1000 lbs (453.6 kg) |
| Usable Depth | 23.47 in (59.6 cm) |
| Usable Height | 17.5 in (44.5 cm) |
All other specifications 13
| Width | 22 in (55.9 cm) |
| Color | Black |
| Federal Ops Country of Origin | USA |
| Finish | Black Wrinkle Powder Coat |
| Material | Steel |
| Product Configuration | Frame Only |
| Rack Rail Type | 10-32 |
| Rack Type | Knockdown |
| Rear Door | Yes |
| Ships Flat | Yes |
| TAA Compliant | Yes |
| UPC | 656747082245 |
| Certifications | ASCETAAUL Listed |
Resources
You'll need these with it
1 RU Mounting Rackshelf
UTR1$58.50
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
Rackmount Power, 9 Outlet, 15A, Basic Surge Protection - 9 ft Cord
PD-915R$223.20
Caster Base for 25 Inch Deep ERK Series - 1,300 pounds
CBS-ERK-25$324.00
1 RU BlowerPanel, 100 CFM, 32dB
QBP-2$581.40
FTA Series 4 Inch DC Fan
FT-FAN$90.00
PD Slim High Density Vertical Power Strip, 8 Outlet, 15A, Basic Surge Protection - 10 ft Cord
PD-815SC$210.60
2 RU Select Series UPS Backup Power, 1500VA
UPS-S1500R$1,598.40
Lace Bar 2 Inch Offset, L-Shaped - 10 Pieces
LBP-2A$105.30

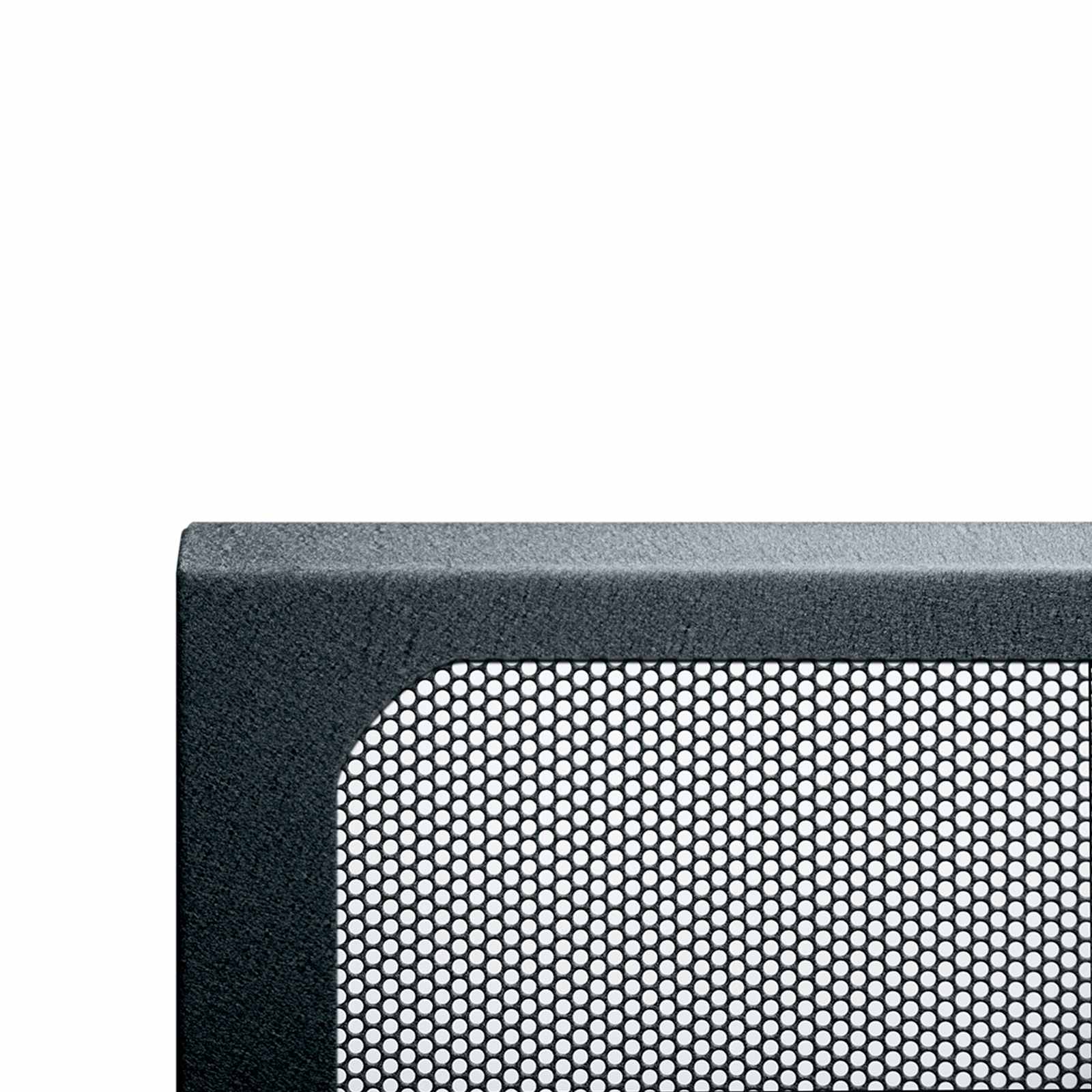

10 RU Vented Front Door for DWR and EWR Racks, 64% Open
LVFD-10$436.50
10 RU Rackrail 10-32 for ERK Series
ERK-RR10$63.90
Select Series UPS Backup Power Systems - UPS-SRBP-500
UPS-SRBP-500$351.00
Questions about this part
Will this rack fit my equipment depth?
The ERK-1025KD has a 25 in (63.5 cm) total depth with a usable depth of 23.47 in (59.6 cm) for equipment clearance.
What accessories are needed to complete the enclosure?
This SKU is a frame-only configuration. You can add a key-locked rear door, vented front doors like the LVFD-10, or a CBS-ERK-25 caster base.
How much weight can this 10 RU rack support?
This rack is UL listed with a total load capacity of 1000 lbs (453.6 kg).
Can I combine multiple ERK series racks together?
Yes, these units can be ganged to create partitioned multi-bay installations for improved security and thermal management control.
Which documents are available for submittals?
You can access the ERK Series Enclosure Instruction Sheet, the Ready-to-Assemble Enclosure A&E Specification Sheet, or the 3D CAD files via the documentation links.
