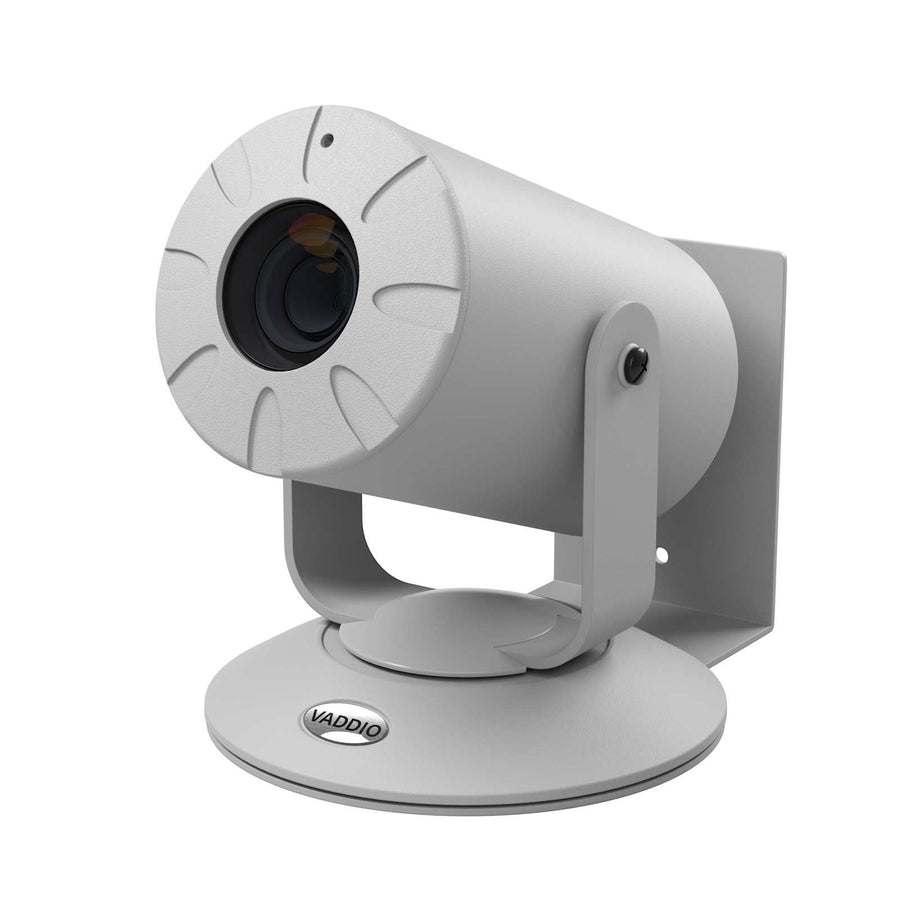

ZoomSHOT 4K with OneLINK Bridge System
White point-of-view camera with 30x optical zoom, UHD 4K resolution, and OneLINK Bridge System extension
The Vaddio ZoomSHOT 4K with OneLINK Bridge System (999-69350-301W) is a high-definition point-of-view camera designed for medium to large rooms. This white-finish solution delivers UHD 4K image quality using a 1/2.8 Exmor CMOS sensor and features a 30x optical zoom with a 70.2° wide-end field of view. The system is built for versatility in houses of worship, lecture capture, live events, and professional A/V integrations. This specific configuration includes the OneLINK Bridge System, which facilitates various outputs including HDMI, RS-232, and USB 3.0. The camera itself features manual pan/tilt movement via an EZ Set tensioning system, allowing for precise manual adjustments without the need for PTZ motors. Control is managed through an IR Shot Commander remote or via RS-232. For installation, the system supports a maximum distance of 150 ft (45.7 m) and includes an EZ Power connection for streamlined setup.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | Camera: 5.8 in (14.73 cm) QUSB: 6 in (15.24 cm) |
| Height | Camera: 7 in (17.78 cm) QUSB: 1.72 in (4.37 cm) |
| Max Distance Support | 150 ft (45.7 m) |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Product Weight | Camera: 3.5 lbs (1.59 kg) QUSB: 1.4 lbs (0.64 kg) |
| Shipping Weight | 1 lbs (0.5 kg) |
| Width | Camera: 5.5 in (14 cm) QUSB: 8.38 in (21.27 cm) |
| 3rd Party Control | RS232 |
All other specifications 35
| Camera Type | Fixed |
| Color | White |
| Compatible With | Vaddio |
| Control Method | IR RemoteRS232 |
| Estimated Room Size | Large RoomMedium Room |
| Field of View | 70.2 Degrees Wide End |
| Field of View Wide | Greater than 70 |
| Focus System | AutoManual |
| Gain | AutoManual |
| Image Sensor Type | 1/2.8 Exmor CMOS |
| Input Ports | EZ Power Video |
| Invertible | Yes |
| Manufacturer | Vaddio |
| Max Resolution | 2160p 30 |
| Minimum Illumination | 0.3 Lux |
| OneLINK Compatibility | No |
| Output Ports | HDMI 1.4bRS-232USB 3.0 |
| Pan and Tilt Range | Tilt 30 degrees to negative 30 degreesUnlimited Pan |
| Pan and Tilt Speed | Manual |
| Pixels | 2.14 Megapixel |
| Power Cord | EU Cord, UK Cord |
| Power Supply | 208A24VDC |
| Power Type | EZ Power |
| Preset Positions | 16 |
| PTZ Motors | No Motors Manual |
| Quick-Connect Compatibility | QUSB |
| Signal Type | HD YPbPrHDMIRS 232USB 2.0 |
| Solution Type | Camera with Extension |
| TAA Compliant | Yes |
| Tri-Sync Motion | No |
| UPC | 840077509156 |
| White Balance | AutoManual |
| Zoom | 30x |
| Certifications | CEFCCTAA |
| Warranty | 3 years |
Resources
You'll need these with it
Questions about this part
Will the ZoomSHOT 4K work for my medium or large room setup?
Yes, this camera is specifically designed for medium and large room applications, including videoconferencing and lecture capture.
What video and data outputs are available with the OneLINK Bridge System?
The system provides simultaneous HDMI 1.4b, RS-232, and USB 3.0 outputs to support various conferencing and recording needs.
How much distance can I run between the camera and the bridge?
The system supports a maximum distance of 150 ft (45.7 m) for its connections.
Does this camera require motors for pan and tilt movement?
No, this model uses manual pan and tilt with an EZ Set tensioning system rather than PTZ motors.
Can I use this as a standalone camera without the extension system?
Yes, the ZoomSHOT 4K can be used as a standalone camera without the OneLINK Bridge System if your application allows.
