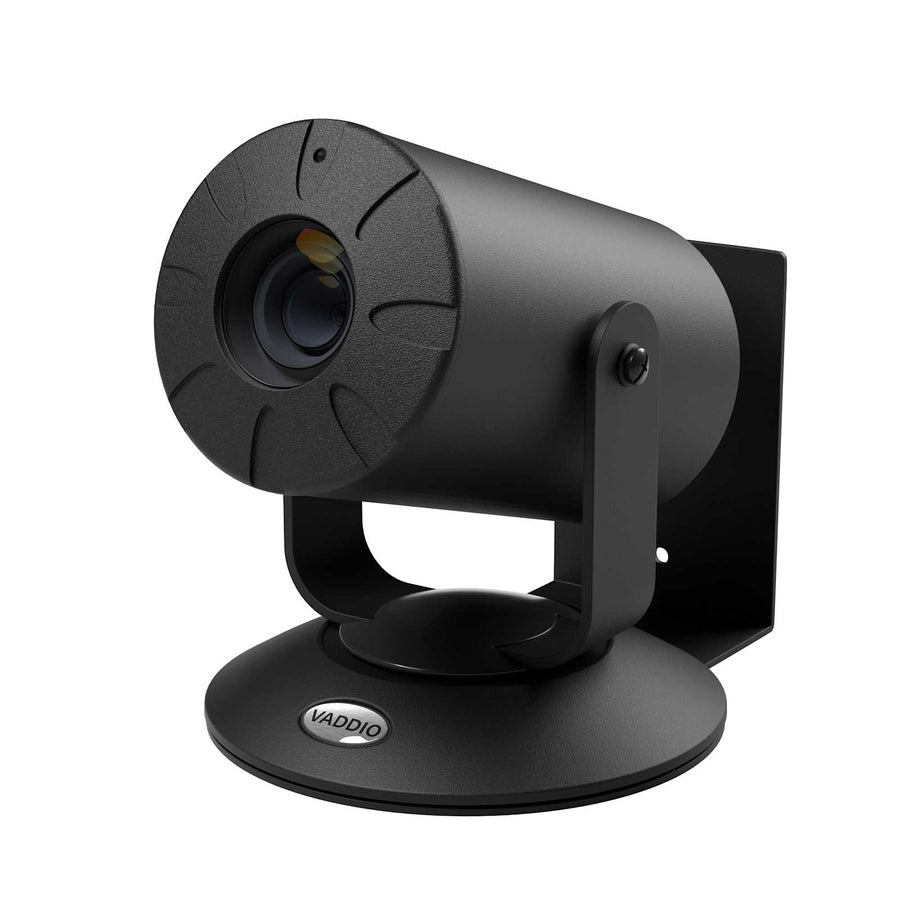

ZoomSHOT 4K with OneLINK Bridge System
UHD 4K fixed camera featuring 30x optical zoom, manual pan/tilt, and OneLINK Bridge System for versatile video capture
The Vaddio 999-69350-301B ZoomSHOT 4K with OneLINK Bridge System provides high-definition point-of-view video for medium and large rooms. This system is built around a 1/2.8" Sony Exmor CMOS image sensor that delivers 2160p at 30 fps for UHD 4K quality. The camera features a 30x optical zoom with a 70.2° wide-end field of view, making it suitable for applications ranging from distance learning classrooms to live events and houses of worship. Control is managed through either an IR Shot Commander remote or RS-232, and the unit offers 16 preset positions to simplify operation. The camera includes a manual pan and tilt system utilizing an EZ Set tensioning system, allowing for quick adjustments without the need for motors. For integrated installations, the OneLINK Bridge System facilitates various outputs including HDMI 1.4b, USB 3.0, and RS-232. This TAA compliant solution is also compatible with QUSB through its EZ Power video input ports.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | Camera: 5.8 in (14.73 cm) QUSB: 6 in (15.24 cm) |
| Height | Camera: 7 in (17.78 cm) QUSB: 1.72 in (4.37 cm) |
| Max Distance Support | 150 ft (45.7 m) |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Product Weight | Camera: 3.5 lbs (1.59 kg) QUSB: 1.4 lbs (0.64 kg) |
| Shipping Weight | 1 lbs (0.5 kg) |
| Width | Camera: 5.5 in (14 cm) QUSB: 8.38 in (21.27 cm) |
| 3rd Party Control | RS232 |
All other specifications 35
| Camera Type | Fixed |
| Color | Black |
| Compatible With | Vaddio |
| Control Method | IR RemoteRS232 |
| Estimated Room Size | Large RoomMedium Room |
| Field of View | 70.2 Degrees Wide End |
| Field of View Wide | Greater than 70 |
| Focus System | AutoManual |
| Gain | AutoManual |
| Image Sensor Type | 1/2.8 Exmor CMOS |
| Input Ports | EZ Power Video |
| Invertible | Yes |
| Manufacturer | Vaddio |
| Max Resolution | 2160p 30 |
| Minimum Illumination | 0.3 Lux |
| OneLINK Compatibility | No |
| Output Ports | HDMI 1.4bRS-232USB 3.0 |
| Pan and Tilt Range | Tilt 30 degrees to negative 30 degreesUnlimited Pan |
| Pan and Tilt Speed | Manual |
| Pixels | 2.14 Megapixel |
| Power Cord | EU Cord, UK Cord |
| Power Supply | 208A24VDC |
| Power Type | EZ Power |
| Preset Positions | 16 |
| PTZ Motors | No Motors Manual |
| Quick-Connect Compatibility | QUSB |
| Signal Type | HD YPbPrHDMIRS 232USB 2.0 |
| Solution Type | Camera with Extension |
| TAA Compliant | Yes |
| Tri-Sync Motion | No |
| UPC | 840077509149 |
| White Balance | AutoManual |
| Zoom | 30x |
| Certifications | CEFCCTAA |
| Warranty | 3 years |
Resources
You'll need these with it
Questions about this part
This camera is designed for medium and large rooms, offering a 30x optical zoom and a 70.2° field of view to cover diverse environments.
This camera is designed for medium and large rooms, offering a 30x optical zoom and a 70.2° field of view to cover diverse environments.
The 999-69350-301B is a solution-type package that includes the ZoomSHOT 4K camera and the OneLINK Bridge Extension for expanded connectivity.
The 999-69350-301B is a solution-type package that includes the ZoomSHOT 4K camera and the OneLINK Bridge Extension for expanded connectivity.
You can control the camera via an IR remote using the Shot Commander or through RS-232 serial control.
You can control the camera via an IR remote using the Shot Commander or through RS-232 serial control.
The package includes a thin profile wall mount and mounting hardware, though a 535-2000-206 suspended ceiling mount is available as a compatible accessory.
The package includes a thin profile wall mount and mounting hardware, though a 535-2000-206 suspended ceiling mount is available as a compatible accessory.
Yes, the 999-69350-301B supports 2160p at 30 fps using its 2.14 megapixel Sony Exmor CMOS sensor.
Yes, the 999-69350-301B supports 2160p at 30 fps using its 2.14 megapixel Sony Exmor CMOS sensor.
