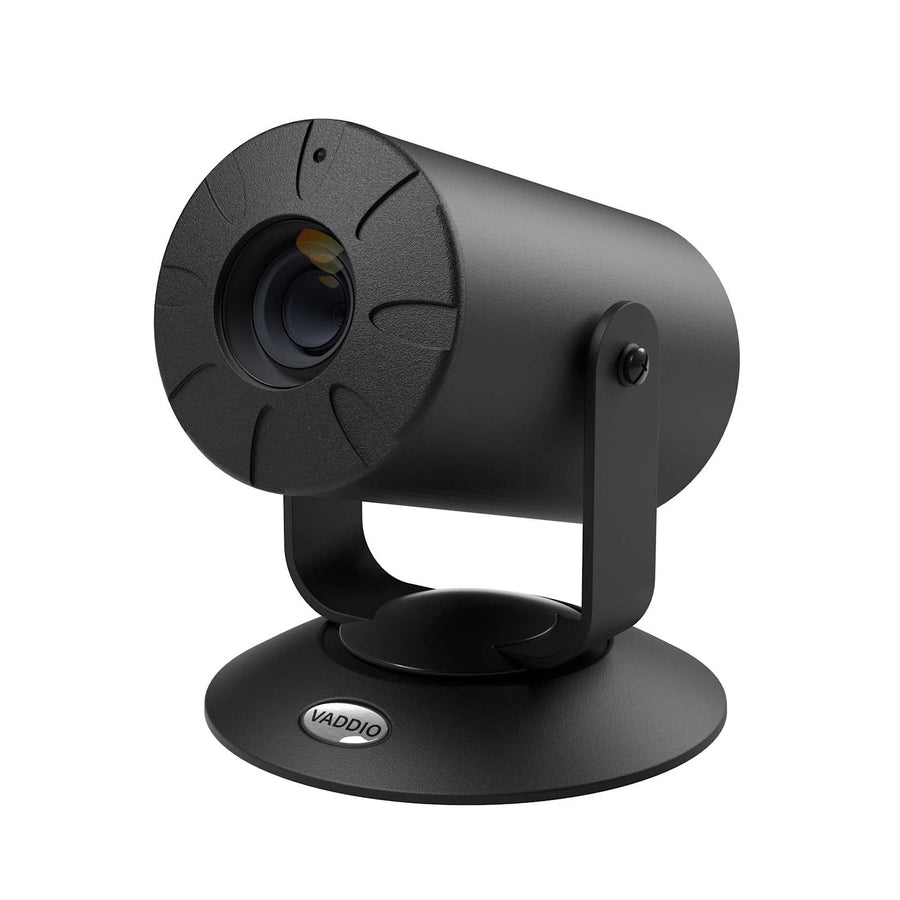

ZoomSHOT 4K
UHD 4K fixed camera with 30x optical zoom, manual pan/tilt, and RS-232 control for medium to large rooms
The Vaddio ZoomSHOT 4K is a versatile, high-definition point-of-view camera designed for diverse environments including lecture capture, distance learning classrooms, houses of worship, and live events. This fixed camera captures UHD 4K video at 2160p 30 fps using a 1/2.8" Sony Exmor CMOS image sensor. It features a 30x optical zoom and a 70.2 degree wide-end field of view, making it an effective solution for medium and large rooms. Control is managed via an IR remote or RS-232, and the unit supports 16 preset positions for efficient camera operation. While the pan and tilt functions are manual via an EZ Set tensioning system, the camera provides high-quality imaging with auto and manual options for focus, gain, and white balance. Connectivity includes HDMI 1.4b and RS-232 output ports, alongside EZ Power Video and RS-232 input ports. This TAA compliant camera is built for professional A/V system integration and UCC applications.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 5.8 in (14.7 cm) |
| Height | 7 in (17.8 cm) |
| Max Distance Support | 150 ft (45.7 m) |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Product Weight | 3.5 lbs (1.6 kg) |
| Shipping Weight | 1 lbs (0.5 kg) |
| Width | 5.5 in (14 cm) |
| 3rd Party Control | RS232 |
All other specifications 33
| Camera Type | Fixed |
| Color | Black |
| Compatible With | Vaddio |
| Control Method | IR RemoteRS232 |
| Estimated Room Size | Large RoomMedium Room |
| Field of View | 70.2 Degrees Wide End |
| Field of View Wide | Greater than 70 |
| Focus System | AutoManual |
| Gain | AutoManual |
| Image Sensor Type | 1/2.8 Exmor CMOS |
| Input Ports | EZ Power VideoRS232 |
| Manufacturer | Vaddio |
| Max Resolution | 2160p 30 |
| Minimum Illumination | 0.3 Lux |
| OneLINK Compatibility | No |
| Output Ports | HDMI 1.4bRS-232 |
| Pan and Tilt Range | Tilt 30 degrees to negative 30 degreesUnlimited Pan |
| Pan and Tilt Speed | Manual |
| Pixels | 2.14 Megapixel |
| Power Cord | EU Cord, UK Cord |
| Power Type | EZ Power |
| Preset Positions | 16 |
| PTZ Motors | No Motors Manual |
| Quick-Connect Compatibility | QMiniQUSB |
| Signal Type | RS 232 |
| Solution Type | Camera Only |
| TAA Compliant | Yes |
| Tri-Sync Motion | No |
| UPC | 840077509064 |
| White Balance | AutoManual |
| Zoom | 30x |
| Certifications | CEFCCTAA |
| Warranty | 3 years |
Resources
You'll need these with it
Thin Profile Wall Mount for Vaddio ConferenceSHOT 10, ConferenceSHOT FX, and EasyIP 10 cameras
535-2000-244$101.70
Suspended Ceiling Mount for Vaddio Cameras
535-2000-206$141.30
Questions about this part
Will the Vaddio ZoomSHOT 4K fit my room setup?
This camera is intended for medium and large rooms. It features a 70.2 degree wide-end field of view and 30x optical zoom to cover various distances.
How do I control the pan and tilt on the 999-69350-001B?
The ZoomSHOT 4K uses manual pan and tilt via an EZ Set tensioning system. It does not have internal PTZ motors, but you can save 16 preset positions for quick recall.
What control signals and ports are supported by this camera?
The camera supports RS-232 control via both input and output ports and includes an HDMI 1.4b output for video signals.
What additional hardware is needed for a complete installation?
While the package includes a thin profile wall mount and an IR Shot Commander remote, you may choose to use a Vaddio QMini or QUSB for Quick-Connect compatibility.
What is the maximum cable run for this camera?
The device supports a maximum distance of 150 ft (45.7 m) for signal transmission.
