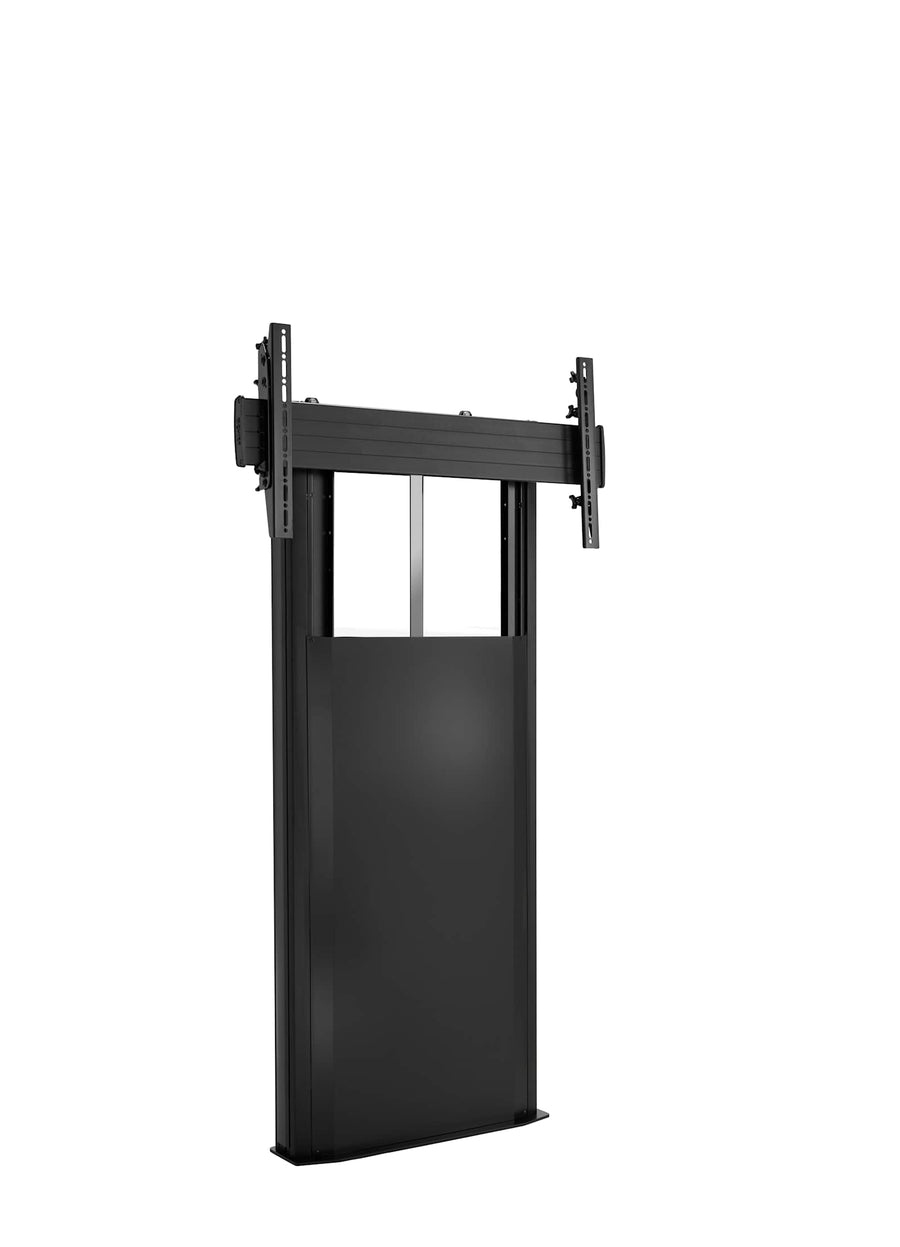

XFA1UB Extra-Large Fusion® Manual Height Adjustable Floor Support Mount
Manual height adjustable floor stand for 55"–100" displays, 300 lbs capacity, featuring micro-adjustable Centris Technology
The Chief XFA1UB is an extra-large manual height adjustable floor support mount designed for professional AV environments such as corporate boardrooms and classrooms. This universal floor-cart solution supports a single display ranging from 55" to 100" in size, with a maximum weight capacity of 300 lbs (136 kg). Using Centris Technology, installers can easily adjust the screen's tilt and roll using integrated knobs. The stand's height can be manually adjusted by a single user via a turn knob, providing a height range between 41.5 and 61.5 inches (106–156 cm). For faster adjustments during installation, a 1/2" hex bit on a power drill can be used. This model features flexible cable covers to allow for easy lay-in access anywhere along the column. To maintain a clean aesthetic in professional spaces, the rear side of the display and its components can be concealed using Chief Fusion® Universal Back Covers. This stand is suitable for landscape orientation or portrait orientation if the screen is at least 27" tall and features a 400 x 400mm mounting pattern or smaller.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 6.3 in (16 cm) |
| Height | 64.4 in (163.6 cm) |
| Shipping Dimensions | 67.91" x 43.73" x 8.86" (172.5 x 111.1 x 22.5 cm) |
| Shipping Weight | 113.78 lbs (51.6 kg) |
| Typical Screen Size | 55" - 100" (1397mm - 2540mm) |
| Weight Capacity | 300 lbs (136 kg) |
| Width | 36.8 in (93.5 cm) |
| Adjustability | Micro-Adjustable, Height Adjustable |
All other specifications 8
| Application | Floor-Cart |
| Color | Black |
| Number of Displays | 1 |
| Orientation | Landscape |
| Solution Type | Universal |
| TAA Compliant | No |
| UPC | 841872168982 |
| VESA Mounting Pattern | 200 x 200mm - 800 x 400mm |
Resources
You'll need these with it
Fusion® Side Channel Speaker Adapter, Extra-Large Displays
FCA841$255.20
Center Channel Speaker Adapter-FCA530
FCA530$135.20
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
Side Speaker Adapters
FCA535$178.40
Fusion® Medium Storage Accessory, PC
FCA515$213.60
Fusion® Carts and Stands Medium CPU Holder - FCA651B
FCA651B$265.60
Fusion® Small Storage Accessory, PC
FCA510$200.80
Fusion® Carts and Stands Large CPU Holder - FCA650B
FCA650B$358.40
Fusion® UNIVERSAL CLAMP KIT, 2
FCA520$54.40
Proximity™ Component Storage Panel, Interface
CSMP9X12$52.00
FCA613B, Fusion® Large Height-Adjustable Accessory Shelf, Black
FCA613B$456.00
Verified fitment
Questions about this part
Will the Chief XFA1UB fit my display?
This mount is verified against 6,205 display models from 269 manufacturers, including the Samsung 460DX, Sony 65BZ30P, LG 100QNED85AU, Panasonic LH98QM1KD, and Philips 37FD9954.
How much weight can this stand actually hold?
The XFA1UB has a maximum weight capacity of 300 lbs (136 kg) for a single display.
What do I need to buy to hide my cables?
To provide an aesthetic covering to the rear side of the display and components, you should use Chief Fusion® Universal Back Covers.
What is the height adjustment range for the XFA1UB?
The manual height adjustment allows you to move the screen to any height between 41.5 and 61.5 inches (106–156 cm).
Which document should I use for submittals?
Installers can use the XFA1U Technical Drawing (PDF) or the XFA1U CAD Drawing (dwg) for architectural and system submittals.
