Side Speaker Adapters
Side speaker adapters for Fusion® Series carts, stands, and ceiling mounts, supporting displays up to 60" diagonal

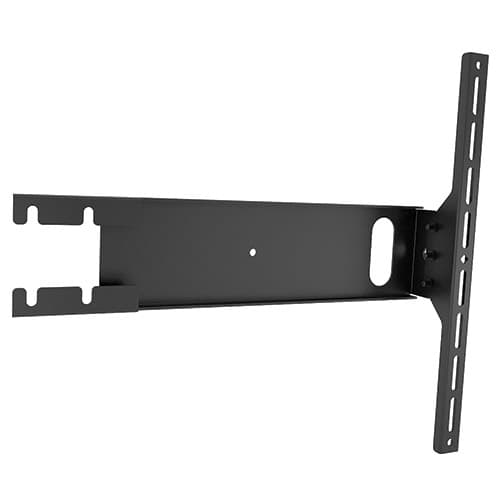

The Chief FCA535 is a pair of left/right side speaker adapters designed for use with the Fusion® Series. These adapters are compatible with Fusion® Series carts, stands, and flat panel ceiling mounts, providing a mounting solution for side-mounted speakers. The design is infinitely adjustable, allowing installers to position speakers so they sit flush with the side of the TV. This adaptability is particularly useful when integrating audio into existing display setups. The system is expandable to accommodate TVs up to 60" diagonal and supports a weight capacity of 10 lbs (4.5 kg) per side. For installers requiring specific submittal documentation, the FCA535 technical drawing and CAD drawings are available in the resources section.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Dimensions | 18.25" x 10.5" x 6.5" (463.6 x 266.7 x 165.1 mm) |
| Shipping Weight | 6 lbs (2.7 kg) |
| Weight Capacity | 10 lbs (4.5 kg) |
| Accessory Type | Speaker Accessories |
| Application | Side Speaker |
| Color | Black |
| TAA Compliant | Yes |
| UPC | 841872156651 |
| Certifications | TAA |
Resources
Questions about this part
What displays is the FCA535 compatible with?
The FCA535 can be used with displays up to 60" diagonal when used with compatible Fusion® Series mounting hardware.
Can I use these with a Fusion® Series mobile cart?
Yes, these adapters are compatible with Fusion® Series mobile carts, including the LPAU Large Fusion® Manual Height Adjustable Mobile AV Cart.
How much weight can each adapter hold?
Each side speaker adapter has a weight capacity of 10 lbs (4.5 kg).
How do I adjust the speaker position?
The adapters are infinitely adjustable, which allows you to align the speakers so they are perfectly flush with the side of the TV.
Where can I find technical drawings for submittals?
Technical drawings, including PDF and CAD (dwg) formats, are available for the FCA535 in the product resources.
