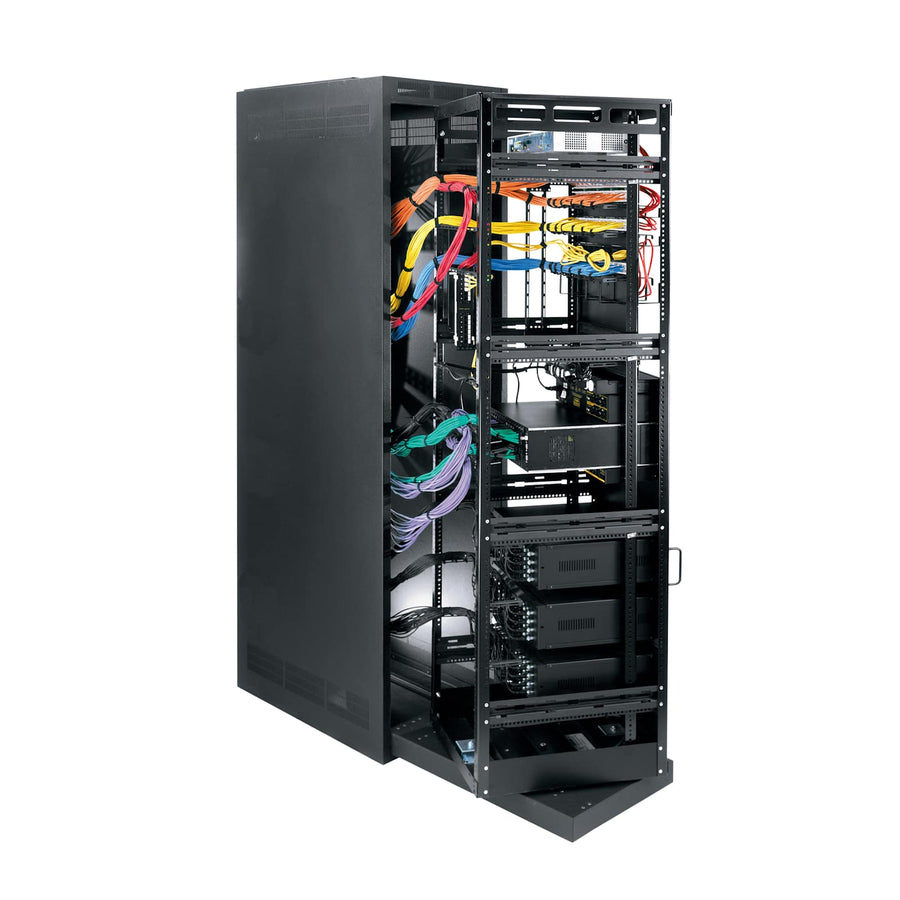

WR Series Roll Out Racks in Steel Enclosure - WR-37-32
37 RU roll out rack in a steel enclosure that rotates for rear equipment access, 32.88" overall depth
The WR-37-32 provides efficient rear access for equipment in tight spaces where an access aisle is not practical. This Middle Atlantic WR Series enclosure features a detachable rack frame that pulls out and rotates, allowing technicians to service rear connections even when the unit is placed against a wall or in back-to-back configurations. This 37 RU steel enclosure is factory-assembled and can have its host enclosure pre-installed on-site. The rack frame can be integrated with equipment and tested off-site prior to installation to streamline deployment. Built with a 32.88" (83.5 cm) overall depth and a 26" (66 cm) usable depth, it accommodates a variety of audio, video, and security hardware. The unit features 4" laser knockouts for cable pass-through or ganging multiple racks together, and the frame includes built-in cable management tie points. It is UL listed and TAA compliant.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 32.88 in (83.5 cm) |
| Height | 76.61 in (194.6 cm) |
| Product Weight | 257.8 lbs (116.9 kg) |
| Rack Units | 37 RU |
| Shipping Weight | 288 lbs (130.6 kg) |
| UL Load Capacity | 750 lbs (340.2 kg) |
| Usable Depth | 26 in (66 cm) |
| Usable Height | 64.75 in (164.5 cm) |
All other specifications 7
| Width | 24 in (61 cm) |
| Federal Ops Country of Origin | USA |
| Finish | Black Wrinkle Powder Coat |
| Rack Rail Type | 10-32 |
| TAA Compliant | Yes |
| UPC | 656747059810 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
PDT Low Profile Vertical Power Strip, 16 Outlet, 20A
PDT-1620C-NS$351.90
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
2 RU Select Series UPS Backup Power, 2200VA
UPS-S2200R$1,935.00
220 CFM Fan Top with Controller
MW-4QFT-FC$1,110.60
10-32 Rackscrew Truss-Head - 100 Piece
HP$41.40
Lace Bar 2 Inch Offset, L-Shaped - 10 Pieces
LBP-2A$105.30
660 CFM Fan Top
MW-6FT-660CFM$817.20
12 RU Copper Bus Bars, 2 Inch Wide
BB-12$148.50
550 CFM Fan Top
MW-10FT-550CFM$702.90

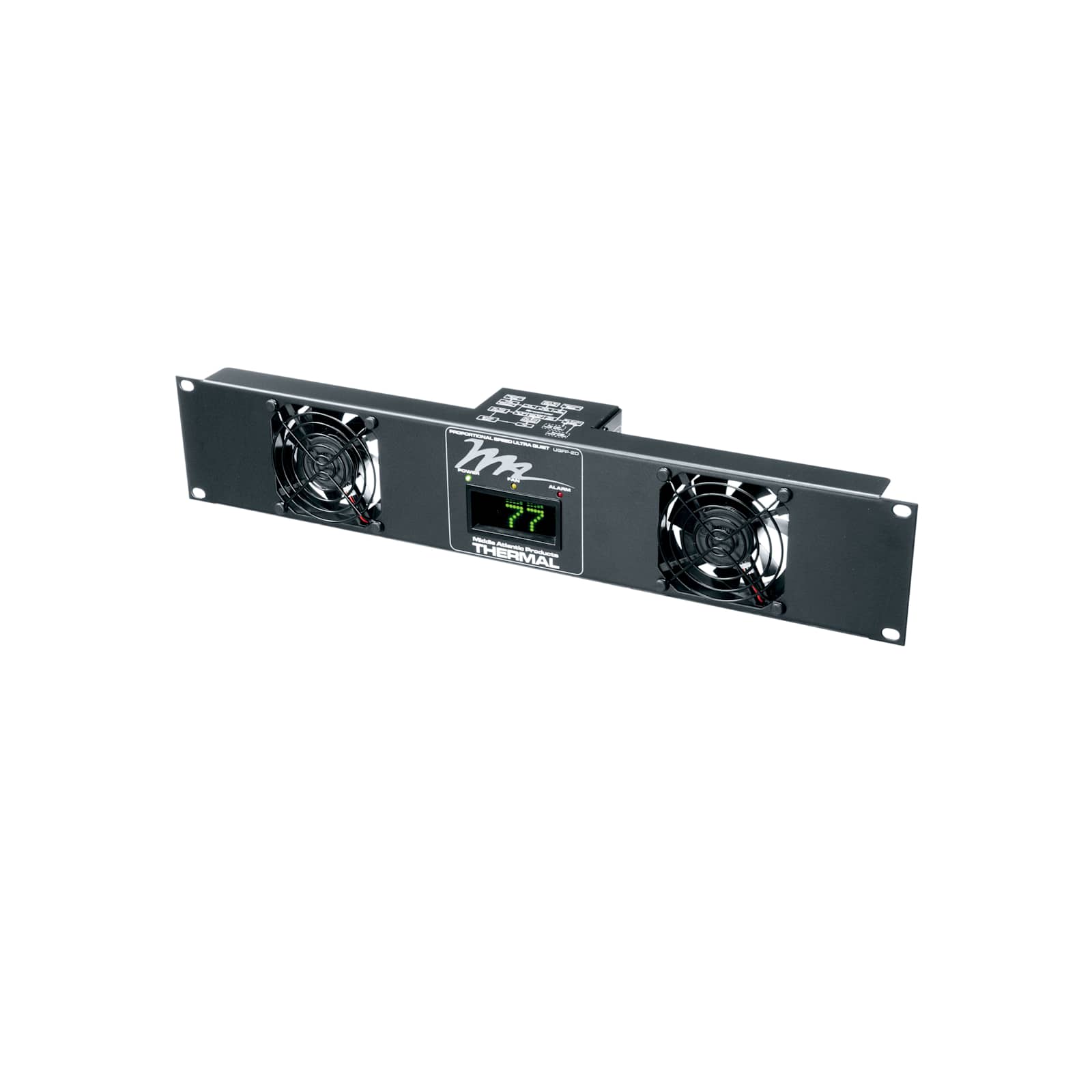

50 CFM Fan Panel, 24dB, 220 - 240VAC
IUQFP-2$558.90
37 RU Lace Strip 3.25 Inches Wide with Tie Posts - 6 Piece
LACE-37-OP$320.40
Select Series PDT Low Profile Vertical Power Strip with Dual Circuit, 10 Outlet, 20A Hardwired
PDT-2X520$418.50
Questions about this part
How does the WR-37-32 handle equipment servicing in tight spaces?
The WR-37-32 features a rotating system where the rack frame pulls out and rotates. This allows for full rear access to equipment connections even when the enclosure is positioned against a wall.
Can I test my equipment before it is installed in the WR-37-32?
Yes, the detachable rack frame can be integrated with your equipment and tested off-site before being placed into the host enclosure.
What is the usable depth for equipment mounting in this 37 RU rack?
While the overall depth of the unit is 32.88" (83.5 cm), the usable depth for equipment is 26" (66 cm).
What accessories are required to make the rack roll out?
The WR Series is engineered to roll out and rotate without the need for any additional accessories.
Does the WR-37-32 support cable pass-through for multiple racks?
Yes, the enclosure includes 4" laser knockouts specifically designed for cable pass-through and for ganging multiple racks together.
