550 CFM Fan Top

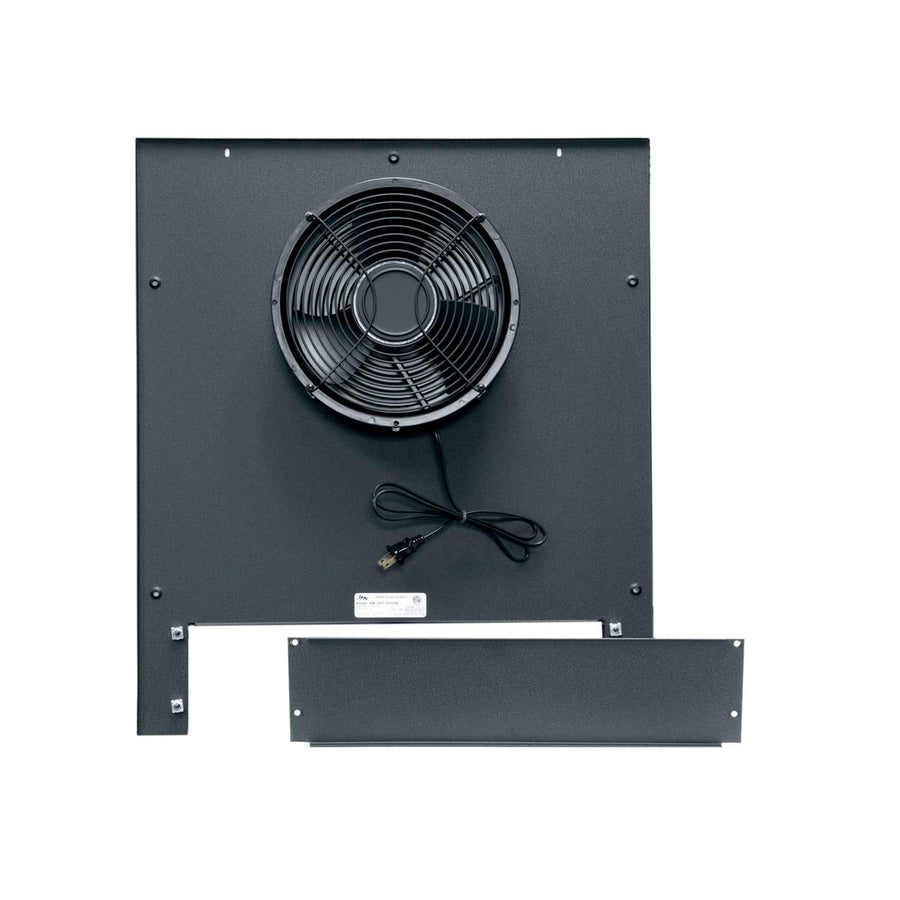

Integrated steel fan top with 550 CFM capacity for Middle Atlantic racks, featuring a 10" fan and removable service plate
The MW-10FT-550CFM is an active, pre-assembled integrated fan top designed to provide efficient thermal management for Middle Atlantic rack enclosures. This steel unit features a single 10" fan delivering 550 CFM to maintain airflow within your equipment stack. It is engineered for use with WR, WRK, MRK, VRK, VMRK, and DRK series racks. To simplify maintenance, the unit includes a removable two-space service plate, which allows technicians to remove the fan top for servicing without the need to disrupt existing cable bundles. This component operates on 120 VAC and comes with a black finish. This TAA-compliant assembly is designed to save installation time by shipping fully assembled and ready for deployment.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| CFM | 550 |
| Height | 25.06 in (63.7 cm) |
| Shipping Weight | 16 lbs (7.3 kg) |
| Volts AC | 120 VAC |
| Width | 21.7 in (55.1 cm) |
| Color | Black |
| Component Type | Active |
| Controlled | No |
| Manufacturer | Middle Atlantic |
| Material | Steel |
| Power Type | AC |
| UPC | 656747093470 |
You'll need these with it
Questions about this part
Which Middle Atlantic racks does this fan top fit?
The MW-10FT-550CFM is compatible with WR, WRK, MRK, VRK, VMRK, and DRK series racks.
Can I service the fan without moving my cables?
Yes, the included two-space service plate allows you to remove the top for maintenance without disrupting your cable bundles.
Is this fan top part of a controlled system?
No, this specific model is not a controlled unit, though it can be used in conjunction with thermostatic controllers like the FC-4-1CA.
What is the power requirement for this unit?
This fan top operates on standard 120 VAC power.
Does this product require a separate controller to operate?
This is an active component that ships pre-assembled; for automated thermal management, you can add accessories like the FC-2-215-1CA or FC-4-1CA thermostatic controllers.
