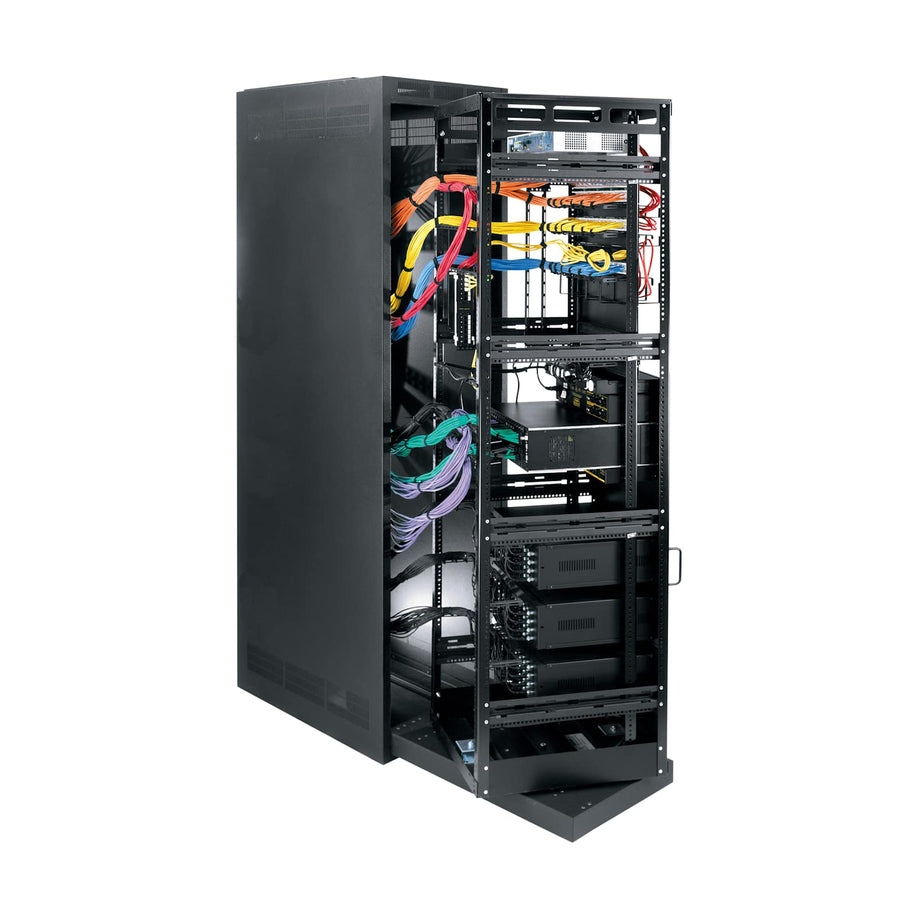

WR Series Roll Out Racks in Steel Enclosure - WR-24-32
24 RU roll out rack in a 32.88 in steel enclosure with rotating frame for rear-access servicing
The Middle Atlantic WR-24-32 is a 24 RU roll out rack housed within a steel enclosure designed to solve rear-access challenges in tight spaces. This system is specifically engineered for installations where equipment is placed against a wall or in back-to-back configurations, making traditional access aisles impractical. The factory-assembled rack frame pulls out and rotates, allowing installers to service rear equipment connections without moving the entire enclosure. This 24 RU enclosure features a 32.88 in (83.5 cm) overall depth with a 26 in (66 cm) usable depth and a total height of 53.85 in (136.8 cm). The frame utilizes standard front and rear 10-32 threaded rackrails with marked spaces and includes built-in cable management tie points. For thermal management, the design incorporates optimized engineering for passive ventilation. To assist with installation and cable routing, the unit provides 4” laser knockouts for pass-through and ganging multiple racks together. This TAA-compliant, UL Listed enclosure is finished in a Black Wrinkle Powder Coat.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 32.88 in (83.5 cm) |
| Height | 53.85 in (136.8 cm) |
| Product Weight | 213.8 lbs (97 kg) |
| Rack Units | 24 RU |
| Shipping Weight | 244 lbs (110.7 kg) |
| UL Load Capacity | 750 lbs (340.2 kg) |
| Usable Depth | 26 in (66 cm) |
| Usable Height | 42 in (106.7 cm) |
All other specifications 7
| Width | 24 in (61 cm) |
| Federal Ops Country of Origin | USA |
| Finish | Black Wrinkle Powder Coat |
| Rack Rail Type | 10-32 |
| TAA Compliant | Yes |
| UPC | 656747102875 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
220 CFM Fan Top with Controller
MW-4QFT-FC$1,110.60
550 CFM Fan Top with Controller
MW-10FT-FC$924.30
Dual LED Work Light with Interconnect Cable
LT-CABUTL-DUAL$333.00
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
380 CFM Fan Top
MW-4FT-380CFM$649.80
660 CFM Fan Top
MW-6FT-660CFM$817.20

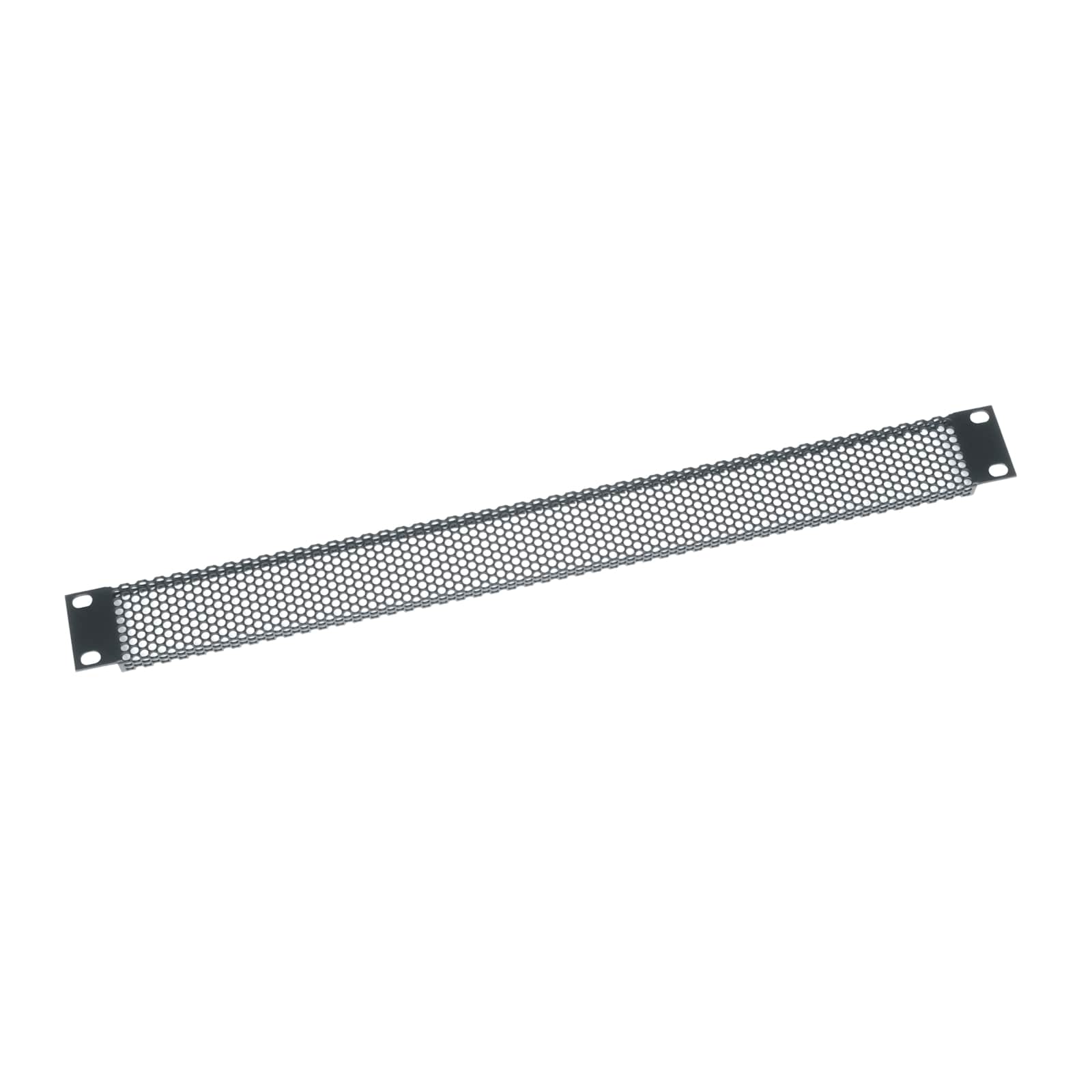

1 RU Rack Vent Panel, Perforated with 64% Open Area
VT1$27.90
12 RU Copper Bus Bars, 2 Inch Wide
BB-12$148.50
1 RU BlowerPanel, 100 CFM, 32dB & Anodized
QBP-2A$640.80
2 RU Utility Rack Drawer
UD2$216.90
Vented Top 64% Open
MW-LVT$143.10
NEXSYS™ 1000VA, 15 Amp Online UPS Backup Power System, Bank Outlet Control
UPX-OL1000R-2$2,860.20
Questions about this part
How do I access the rear of the equipment in a WR-24-32?
The rack frame pulls out and rotates from the host enclosure, providing service access to rear connections even when placed against a wall.
What is the maximum load capacity for this WR-24-32 rack?
This unit is UL Listed with a load capacity of 750 lbs (340.2 kg).
Can I install this rack in a tight space without an access aisle?
Yes, the WR Series is specifically designed for scenarios where an access aisle is not practical, allowing for easy connection servicing via the rotating frame.
What accessories are compatible with the WR-24-32?
Compatible accessories include cooling solutions like the MW-4FT-380CFM Fan Top, power options like the PD T-615C, and lighting like the LT-CABUTL-DUAL Dual LED Work Light.
Is the WR-24-32 TAA compliant?
Yes, this model is TAA compliant and is manufactured in the USA.
