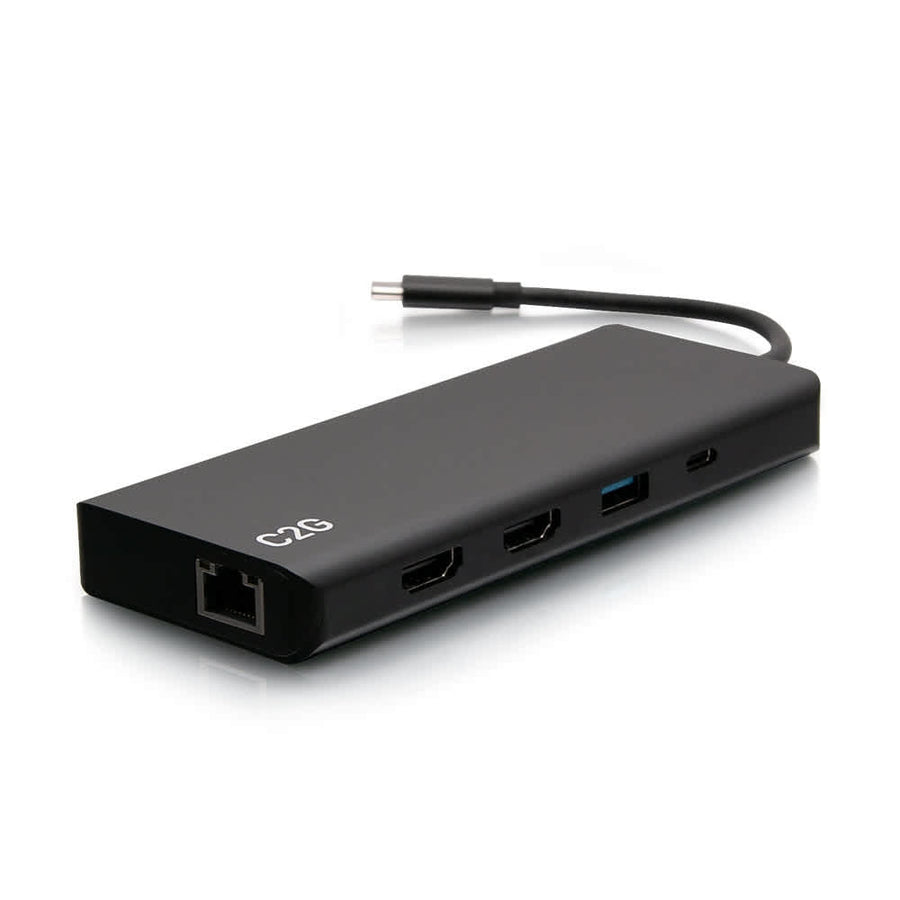

USB-C® 9-in-1 Dual Display Docking Station with HDMI®, Ethernet, USB, 3.5mm Audio and Power Delivery up to 60W - 4K 30Hz (TAA Compliant)
USB-C 9-in-1 docking station supporting dual HDMI and 4K @ 30Hz video with 60W power delivery
The C2G54488 is a USB-C 9-in-1 Dual Display Docking Station designed to expand connectivity for USB-C or Thunderbolt™ 3 enabled laptops. This active device serves as a desktop solution for multitasking in office or home environments, allowing users to connect peripherals such as keyboards, mice, and portable hard drives. It features two HDMI female ports that can drive two displays at 1080p at 60Hz, or a single display at up to 4K (3840 x 2160) @ 30Hz. Data transfer is handled through five USB-A ports: three SuperSpeed USB 3.0 A female ports supporting 5 GBPS and two USB-A ports providing 480Mbps. For networking, the unit includes an RJ-45 female port for Gigabit Ethernet connectivity. The integrated USB-C female port supports up to 60W of Power Delivery to charge the connected laptop. Additionally, a 3.5mm female jack is provided for audio output via headphones or microphones. This TAA Compliant docking station is compatible with Windows, MacOS, and Linux systems.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Power Delivery | 60 W |
| Shipping Weight | 0.64 lbs (0.3 kg) |
| Color | Black |
| Connector 1 | (1) USB-C Male |
| Connector 2 | (1) 3.5mm Female(1) RJ-45 Female(1) USB-C Female(2) HDMI Female(2) USB-A Female(3) USB 3.0 A Female |
| Product Type | Active DeviceDocking Station |
| TAA Compliant | Yes |
| UPC | 757120544883 |
All other specifications 7
| Video Input Support | USB-C |
| Video Output Support | HDMIUSB-C |
| Video Resolution | 1080p4K4K @ 30Hz |
| Works With | LinuxMacOSWindows |
| Certifications | CENDAA 889Prop 65REACHRoHSTAATSCA |
| Data Transfer Rate | 5 GBPS |
| Warranty | 5 years |
Resources
You'll need these with it

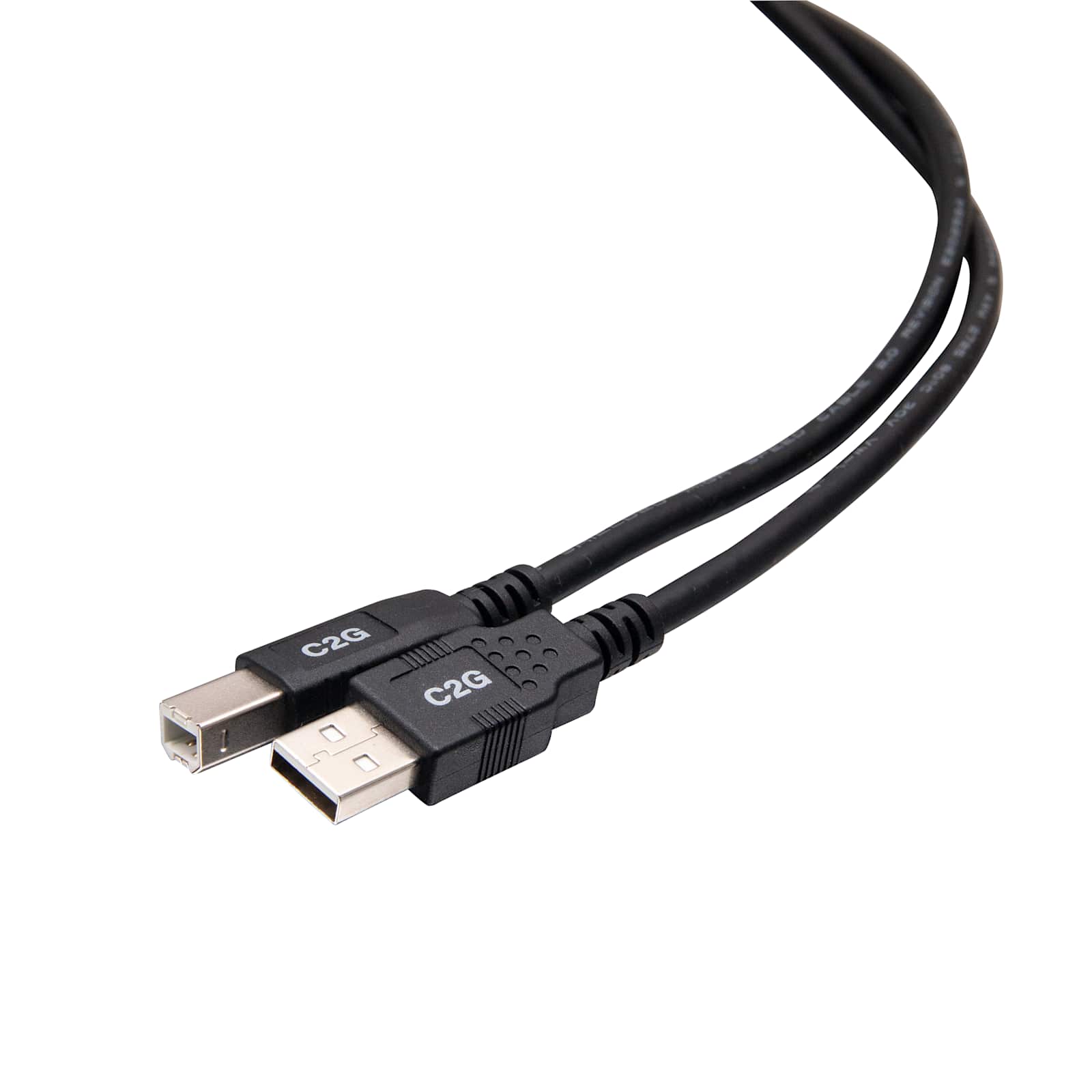

6.6ft (2m) USB 2.0 A/B Cable - Black
CG28102$8.99
9.8ft (3m) USB 2.0 A/B Cable - Black
CG28103$9.99
10ft (3m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - Gray
CG27133$10.99
3.3 ft (1m) USB-C 3.2 (Gen 2) Male to Male Cable (20V 5A)
CG28848$40.99
12ft (3.6m) Performance Series Ultra Flexible Active High Speed HDMI® Cable with Ethernet
C2G10379$89.99
7ft (2.1m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable - Black
CG00729$14.99
25ft (7.6m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - Blue
CG27145$19.99
25ft (7.6m) Performance Series Ultra Flexible Active High Speed HDMI® Cable with Ethernet
C2G10382$139.99
6ft (1.8m) Core Series High Speed HDMI® Cable with Ethernet
CG56783$15.99
6ft (1.8m) USB-C® to USB-A 3.2 Gen 1 (5Gbps) Cable M/M - Black
CG28832$26.99
Questions about this part
Will this C2G54488 docking station work with a Mac?
The C2G54488 is compatible with MacOS, but MST is not supported. When using a Mac, the screen will only be duplicated and will not extend to two separate displays.
What are the video resolution capabilities of the HDMI ports?
You can connect two displays at 1080p at 60Hz via the HDMI ports, or a single display at a maximum resolution of 4K (3840 x 2160) @ 30Hz.
How much power can the USB-C port provide to my laptop?
The USB-C female port supports up to 60W of Power Delivery to power and charge your connected laptop or tablet.
What operating systems is this docking station compatible with?
This docking station is designed to work with Windows, MacOS, and Linux systems.
Does this docking station require extra accessories for networking or audio?
The unit includes an integrated RJ-45 female port for Ethernet and a 3.5mm female jack for audio output, though you may need compatible cables like the CG27133 Cat6 cable for network access.
