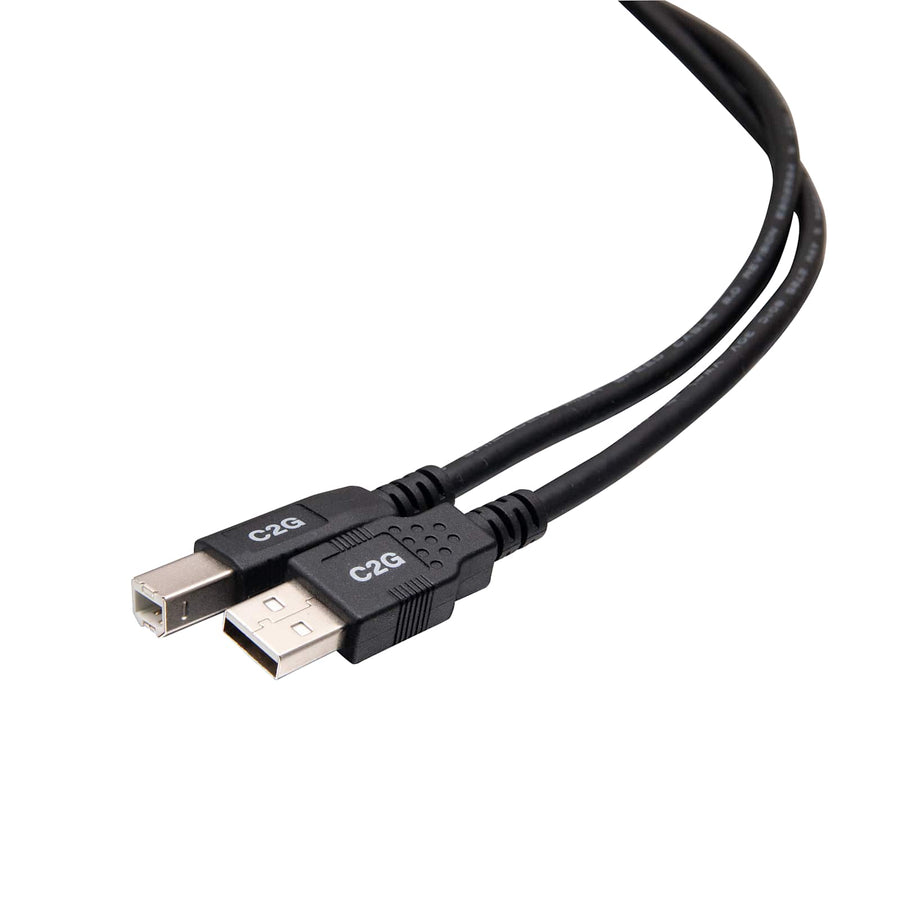

9.8ft (3m) USB 2.0 A/B Cable - Black
9.8ft (3m) USB 2.0 A to B cable for connecting host devices to peripherals like printers and scanners
The C2G CG28103 is a 9.8 ft (3 m) USB 2.0 A/B cable designed to provide a dependable connection between a computer and USB-B peripherals. This cable is built for professional AV and IT environments, ensuring stable performance for hardware such as printers, scanners, and USB hubs. It supports bidirectional signal transmission and data transfer rates up to 480 MBPS. To maintain clean signal transmission in environments with high electromagnetic interference, the cable features both foil and braid shielding. The internal construction utilizes twisted-pair wiring and a 24 AWG wire gauge to reduce crosstalk and support error-free data transfer. This black cable features a PVC jacket with a 0.19 in (4.7 mm) diameter and is compatible with both PC and Mac systems. The operating temperature range for this cable is -4°F to 176°F (-20°C to 80°C) with a maximum operating humidity of 90% RH (Non-Condensing). This product is NDAA 889 compliant and carries RoHS, REACH, TSCA, and Prop 65 certifications.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Amps | 500 mA |
| Cable Diameter | 0.19 in (4.7 mm) |
| Cable Length | 9.8 ft (3 m) |
| Operating Humidity Max | 90% RH (Non-Condensing) |
| Operating Humidity Min | 20% RH (Non-Condensing) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Shipping Weight | 0.28 lbs (0.1 kg) |
| Signal Transmission | Bidirectional |
All other specifications 19
| Storage Humidity Max | 80% RH (Non-Condensing) |
| Storage Humidity Min | 20% RH (Non-Condensing) |
| Storage Temperature | Negative 4 to 176 F |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Wire Gauge | 24 |
| Cable Type | USB |
| Color | Black |
| Connector 1 | (1) USB-A Male(1) USB-A Male |
| Connector 2 | (1) USB-B Male(1) USB-B Male |
| Federal Ops Country of Origin | Indonesia |
| Product Type | Cable |
| TAA Compliant | No |
| Technology Specifications | USB 2.0 |
| UPC | 757120281030 |
| Certifications | NDAA 889Prop 65REACHRoHSTSCA |
| Data Transfer Rate | 480 MBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
Questions about this part
Will this C2G CG28103 cable work with my printer or scanner?
Yes, this USB 2.0 A/B cable is designed to connect host computers to USB-B peripherals such as printers, scanners, and USB hubs.
What is the maximum data transfer speed for the CG28103?
The CG28103 supports USB 2.0 technology with data transfer rates up to 480 MBPS.
Is the CG28103 TAA compliant for government projects?
No, this specific SKU is not TAA compliant. For TAA-compliant options, please refer to part numbers C2G68000, C2G68001, C2G68002, or C2G68003.
What are the environmental operating requirements for this cable?
This cable operates in temperatures ranging from -4°F to 176°F (-20°C to 80°C) and can handle operating humidity levels between 20% and 90% RH (Non-Condensing).
What certifications does this USB cable carry?
This cable is compliant with NDAA 889 and is listed with RoHS, REACH, TSCA, and Prop 65 certifications.
