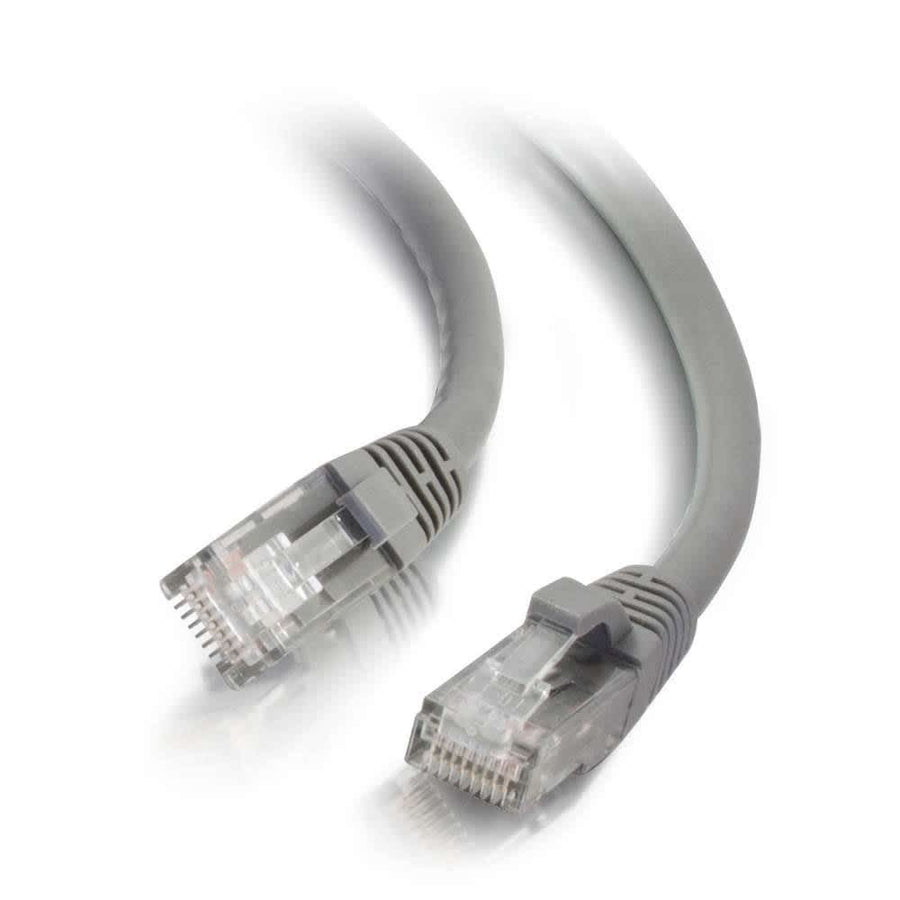

10ft (3m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - Gray
10ft Cat6 snagless UTP patch cable in gray, featuring stranded copper conductors and RJ-45 male connectors
The C2G CG27133 is a 10ft (3.1 m) Cat6 snagless UTP Ethernet network patch cable designed for bandwidth-intensive applications including voice, data, and video distribution. This unshielded twisted pair (UTP) cable uses high-quality stranded copper conductors to minimize Near-End Crosstalk (NEXT) levels. Each individual pair is bonded together to maintain consistent twist-spacing throughout the line, which helps reduce impedance and structural return loss (SRL) up to the termination point. This 0.24 in (6.2 mm) diameter cable uses a T568B wiring scheme and features molded, snagless PVC boots that protect the RJ-45 clips from damage during installation and provide added strain relief. This gray cable meets all Cat6 TIA/EIA standards and is compliant with RoHS, REACH, and CE requirements. This product is part of a larger series available in 10 different colors and lengths up to 150ft to facilitate network color-coding.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 10 ft (3.1 m) |
| Shield Type | UTP |
| Shipping Weight | 0.29 lbs (0.1 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | Gray |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120271338 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
4-Port Surface Mount Box
WP3504WH$4.99
48-Port Keystone Rack Mount Patch Panel
WP48RM$59.99
Questions about this part
Will this C2G CG27133 cable work with my Cat6 patch panel?
Yes, this cable is compatible with various Cat6 hardware, including the 24-Port Rack Mount Patch Panel (SKU: 24845CC6) and 48-Port Rack Mount Patch Panel (SKU: 48845CC6).
Is the CG27133 cable shielded or unshielded?
The CG27133 is an unshielded (UTP) cable that utilizes stranded copper conductors to manage impedance and NEXT levels.
What is the wiring standard for this patch cable?
This 10ft Cat6 cable follows the T568B wiring scheme for standard Ethernet connectivity.
What is the difference between the CG27133 and other cables in this series?
The CG27133 is the gray version of this series; the series offers 10 different colors and lengths up to 150ft to support network color-coding.
Which certification standards does this cable meet?
This cable is compliant with CE, REACH, and RoHS standards and is TIA/EIA Cat6 compliant.
