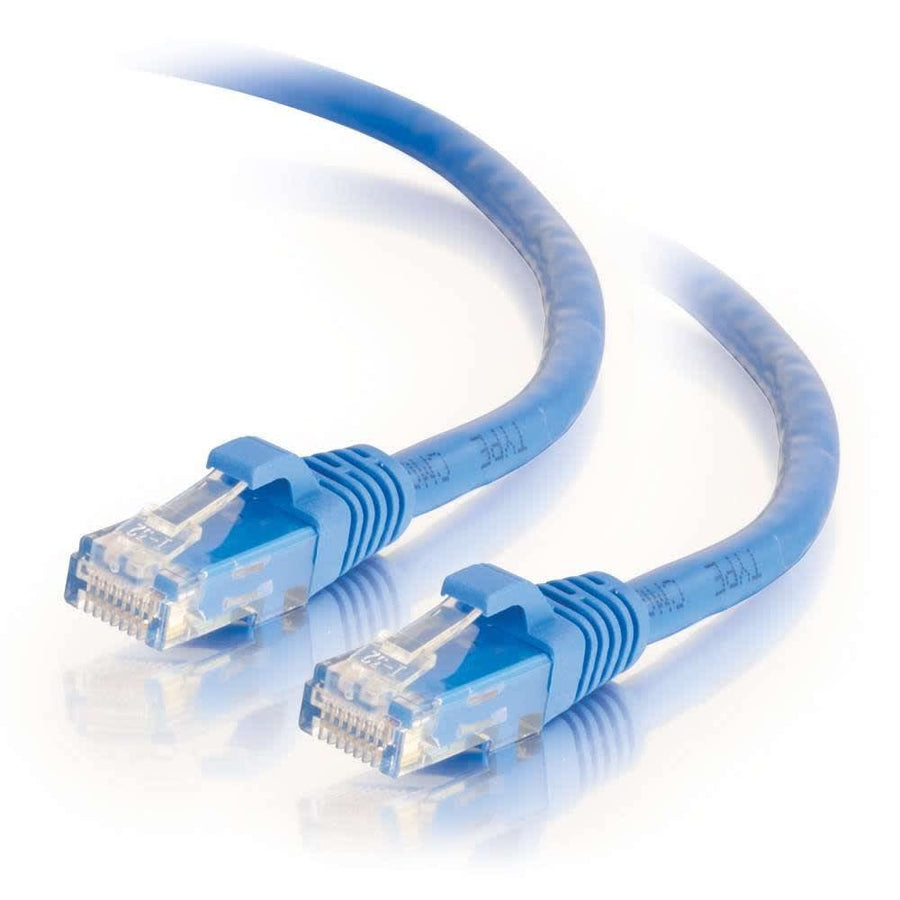

25ft (7.6m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - Blue
25ft Blue Cat6 UTP patch cable with snagless boots and stranded copper conductors for high-bandwidth data applications
The CG27145 is a 25ft (7.6m) Cat6 Unshielded Twisted Pair (UTP) Ethernet network patch cable finished in blue. Engineered for high-bandwidth voice, data, or video distribution, this cable meets all Cat6 TIA/EIA standards to support fast Ethernet and Gigabit computer networks. The design utilizes stranded copper conductors to minimize Near-End Crosstalk (NEXT) levels and reduces both impedance and structural return loss (SRL). To ensure reliable performance, each individual pair is bonded together, maintaining consistent twist-spacing through to the termination point. Each end features RJ-45 male connectors protected by a PVC snagless boot, which shields the clips from damage during insertion and removal while providing added strain relief. This 0.24 in (6.2 mm) diameter cable is suitable for various networking environments where color-coded cabling is required for organized installation.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 25 ft (7.6 m) |
| Shield Type | UTP |
| Shipping Weight | 0.67 lbs (0.3 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120271451 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
8 Port Cat6 Network Interface Module
AC1068$64.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
1-Port Keystone Jack Surface Mount Box - White
CG03831$4.99
LANtest Pro Remote Network Cable Tester with Tone and Probe
CG26847$546.99
4-Port Surface Mount Box
WP3504WH$4.99
48-Port Keystone Rack Mount Patch Panel
WP48RM$59.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
Questions about this part
Will this Cat6 cable work for Gigabit Ethernet networks?
Yes, the CG27145 meets all Cat6 TIA/EIA standards, making it suitable for fast Ethernet and Gigabit computer networks requiring high bandwidth.
What is the difference between this and other CG27145 variants?
The CG27145 is the blue version; this series is available in 10 different colors and various lengths up to 150ft.
What specific components are used in the construction of this cable?
This cable features 24 AWG stranded copper conductors and PVC jacket/hood material with a snagless connector design.
Is this cable suitable for high-density patch panels?
Yes, it is compatible with various C2G components such as the 24-port or 48-port Cat6 Rack Mount Patch Panels.
Does this patch cable come with a warranty?
Yes, this C2G patch cable is covered by a lifetime warranty.
