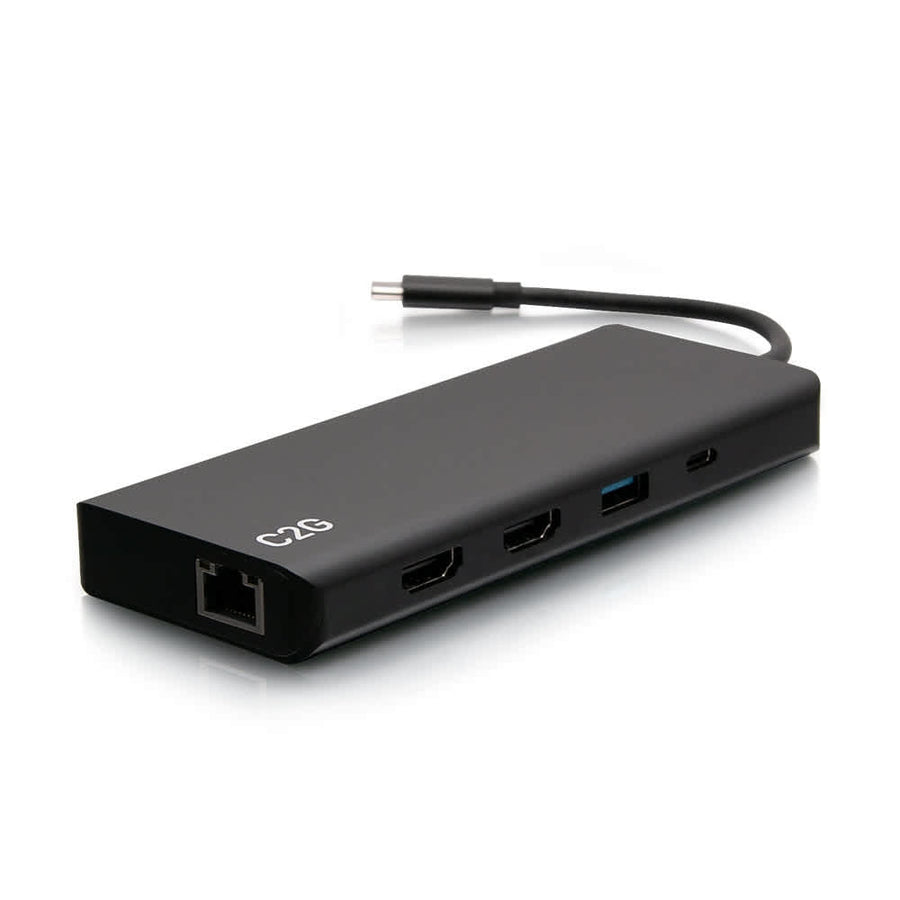

USB-C® 9-in-1 Dual Display Docking Station with 60W Power Supply, HDMI®, Ethernet, USB, 3.5mm Audio and Power Delivery up to 60W - 4K 30Hz (TAA Compliant)
9-in-1 USB-C docking station supporting 4K @ 30Hz via HDMI, 60W Power Delivery, and 5 USB-A ports
The C2G54487 is a USB-C 9-in-1 Dual Display Docking Station that utilizes a single USB-C Male connector to expand a laptop's connectivity. This active device is TAA compliant and includes an integrated 60W power supply to provide Power Delivery to connected laptops or tablets. For video, the dock supports two HDMI outputs for dual displays at 1080p @ 60Hz, or a single HDMI connection capable of 4K (3840 x 2160) @ 30Hz. Data transfer is managed through five USB-A ports: three ports support SuperSpeed 5 Gbps transfers, while the remaining two ports operate at 480 Mbps. Additional interface options include an RJ-45 Female port for Gigabit Ethernet networking, a 3.5mm Female jack for audio peripherals, and one USB-C Female port. This docking station is compatible with Windows, macOS, and Linux systems. Note that macOS does not support MST; when connected to a Mac, displays will be duplicated rather than extended.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Power Delivery | 60 W |
| Shipping Weight | 1.02 lbs (0.5 kg) |
| Color | Black |
| Connector 1 | (1) USB-C Male |
| Connector 2 | (1) 3.5mm Female(1) RJ-45 Female(1) USB-C Female(2) HDMI Female(2) USB-A Female(3) USB 3.0 A Female |
| Product Type | Active DeviceDocking Station |
| TAA Compliant | Yes |
| UPC | 757120544876 |
All other specifications 7
| Video Input Support | USB-C |
| Video Output Support | HDMIUSB-C |
| Video Resolution | 1080p4K4K @ 30Hz |
| Works With | LinuxMacOSWindows |
| Certifications | CENDAA 889Prop 65REACHRoHSTAATSCA |
| Data Transfer Rate | 5 GBPS |
| Warranty | 5 years |
Resources
You'll need these with it
10ft (3m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - Gray
CG27133$10.99
9.8ft (3m) USB 2.0 A/B Cable - Black
CG28103$9.99
6.6ft (2m) USB 2.0 A/B Cable - Black
CG28102$8.99
3.3 ft (1m) USB-C 3.2 (Gen 2) Male to Male Cable (20V 5A)
CG28848$40.99
7ft (2.1m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable - Black
CG00729$14.99
6ft (1.8m) USB-C® to USB-A 3.2 Gen 1 (5Gbps) Cable M/M - Black
CG28832$26.99
25ft (7.6m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - Blue
CG27145$19.99
12ft (3.6m) Performance Series Ultra Flexible Active High Speed HDMI® Cable with Ethernet
C2G10379$89.99
25ft (7.6m) Performance Series Ultra Flexible Active High Speed HDMI® Cable with Ethernet
C2G10382$139.99
6ft (1.8m) Core Series High Speed HDMI® Cable with Ethernet
CG56783$15.99
Questions about this part
Will the C2G54487 work with my Mac?
The C2G54487 is compatible with macOS, but MST is not supported; displays will show mirrored content rather than extended desktops.
What is the maximum video resolution for the HDMI ports?
Using one HDMI port allows for 4K @ 30Hz resolution, while using both HDMI ports supports dual 1080p @ 60Hz displays.
How much power can the docking station provide to my laptop?
The included 60W power supply provides up to 60W of Power Delivery through the USB-C port to charge your device.
How many USB-A devices can I connect at once?
You can connect up to five USB-A devices; three of these ports support data transfer rates of 5 Gbps.
What is the data transfer speed of the USB ports?
Three USB-A ports support SuperSpeed 5 Gbps, while the other two ports support 480 Mbps.
