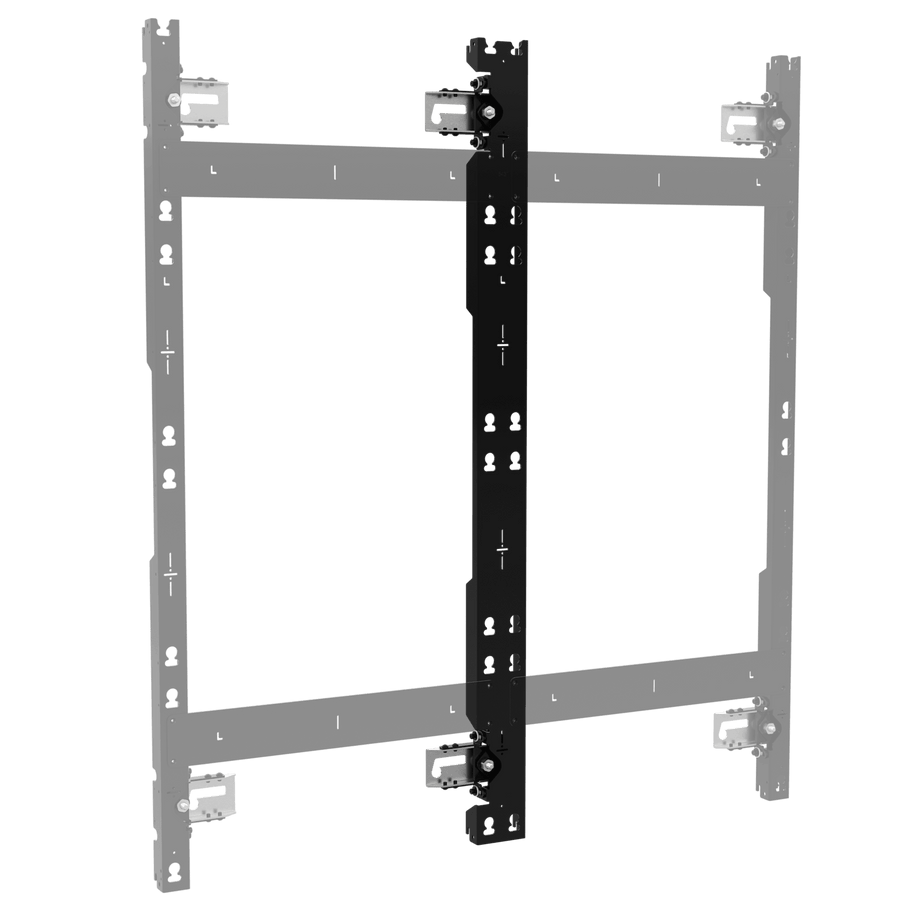

TiLED™ Middle dvLED Wall Mount for LG LSCB Series Ultra Slim, 4 Displays Tall
Middle dvLED wall mount for LG LSCB Series Ultra Slim, supporting 4 displays in a tall landscape configuration
The Chief TILD1X4LG2-M is a middle structural component designed for building modular TiLED™ dvLED video walls. Specifically engineered for the LG LSCB Series Ultra Slim displays, this middle mount is part of a larger system that includes left and right end pieces to accommodate different wall heights. This specific SKU is configured to support a 4-display tall installation in a landscape orientation. The system provides essential X, Y, and Z-axis adjustments, including micro-adjustment and lateral shift, to ensure flawless alignment and perfect positioning across the video wall. It features a 0.75” (19 mm) plumb adjustment and an equipment depth range of 3.29” – 4.04” (84mm-103mm). For complete wall configurations, this middle section must be paired with the appropriate left and right end mounts, such as the TILD1X4LG2-L or TILD1X4LG2-R, and vertical connector kits like the TILVAB2.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Equipment Depth Range | 3.29” – 4.04” (84mm-103mm) |
| Plumb Adjustment | 0.75” (19 mm) |
| Shipping Dimensions | 62.5" x 8.75" x 3.5" (158.8 x 22.2 x 8.9 cm) |
| Shipping Weight | 18 lbs (8.2 kg) |
| Weight Capacity | 20 lbs -9.1 kg/display |
| Accessory Type | InstallationMounting Brackets |
| Adjustability | FixedHeight AdjustableLateral ShiftMicro-Adjustable |
| Application | Wall |
All other specifications 8
| LED Display Model | LG LSCB Series Ultra Slim |
| Manufacturer | LG |
| Number of Displays | 4 |
| Orientation | Landscape |
| Special Features | LED Video WallMulti-Display |
| TAA Compliant | Yes |
| UPC | 841872177212 |
| Certifications | TAA |
Resources
You'll need these with it
TiLED™ dvLED Wall Mount Vertical Connector Kit
TILVAB2$53.60
TiLED™ dvLED M6 Wall Mounting Hardware Kit
TILHDW1$25.60
PAC526, Large In-Wall Storage Box
PAC526$116.80
PAC525, In-Wall Storage Box
PAC525$79.20
TiLED™ Left dvLED Wall Mount for LG LSCB Series Ultra Slim, 3 Displays Tall
TILD1X3LG2-L$528.00
TiLED™ Right dvLED Wall Mount for LG LSCB Series Ultra Slim, 4 Displays Tall
TILD1X4LG2-R$704.80
TiLED™ Right dvLED Wall Mount for LG LSCB Series Ultra Slim, 5 Displays Tall
TILD1X5LG2-R$880.80
TiLED™ Middle dvLED Wall Mount for LG LSCB Series Ultra Slim, 3 Displays Tall
TILD1X3LG2-M$528.00
TiLED™ Left dvLED Wall Mount for LG LSCB Series Ultra Slim, 5 Displays Tall
TILD1X5LG2-L$880.80
TiLED™ Right dvLED Wall Mount for LG LSCB Series Ultra Slim, 3 Displays Tall
TILD1X3LG2-R$528.00
TiLED™ Left dvLED Wall Mount for LG LSCB Series Ultra Slim, 4 Displays Tall
TILD1X4LG2-L$704.80
TiLED™ Middle dvLED Wall Mount for LG LSCB Series Ultra Slim, 5 Displays Tall
TILD1X5LG2-M$880.80
Verified fitment
Questions about this part
Will this mount fit my LG LSCB Series display?
Yes, this is verified for the LG LSCB Series, including models LSCB012 and LSCB015, within 6 verified configurations.
What else do I need to complete the video wall?
You will need the corresponding left and right end mounts (such as TILD1X4LG2-L/R) and a TILVAB2 vertical connector kit.
How do I adjust the display alignment during installation?
The TILD1X4LG2-M provides micro-adjustment, lateral shift, and a 0.75” (19 mm) plumb adjustment for precise X, Y, and Z-axis alignment.
What is the depth requirement for the LED displays?
This mount supports an equipment depth range of 3.29” – 4.04” (84mm-103mm).
Is this product TAA compliant?
Yes, the TILD1X4LG2-M is TAA compliant.
