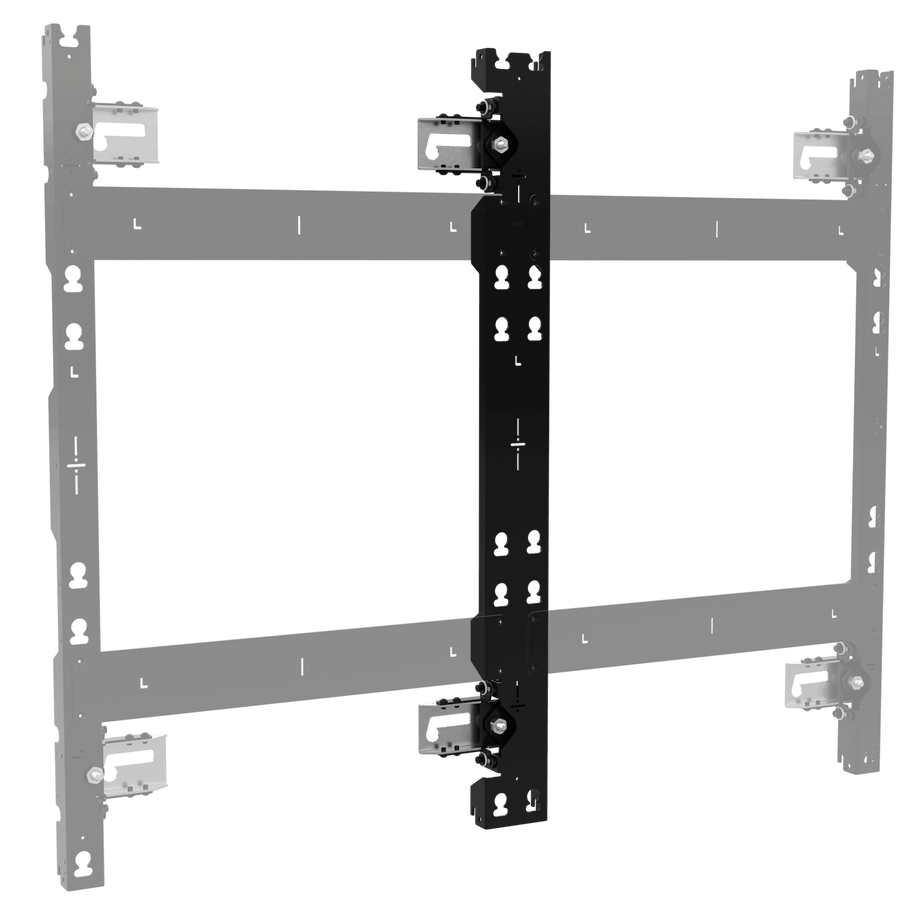

TiLED™ Middle dvLED Wall Mount for LG LSCB Series Ultra Slim, 3 Displays Tall
Middle dvLED wall mount for 3-display tall LG LSCB Series Ultra Slim video walls, featuring micro-adjustability and lateral shift
The TILD1X3LG2-M is a TiLED™ middle component designed to support video wall configurations for the LG LSCB Series Ultra Slim. This specific SKU is the middle mounting section for a 3-display tall vertical arrangement. To complete a full installation, this part must be paired with the appropriate left and right end components, such as the TILD1X3LG2-L and TILD1X3LG2-R. The system provides essential X, Y, and Z-axis adjustments, including lateral shift, height adjustment, micro-adjustment, and 0.75” (19 mm) of plumb adjustment to ensure flawless panel alignment. This mount is rated for a weight capacity of 20 lbs (9.1 kg) per display and accommodates an equipment depth range of 3.29” to 4.04” (84mm-103mm). For secure installation, M6 wall mounting hardware (TILHDW1) is required. This TAA compliant solution is engineered for landscape orientation in professional LED video wall applications.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Equipment Depth Range | 3.29” – 4.04” (84mm-103mm) |
| Plumb Adjustment | 0.75” (19 mm) |
| Shipping Dimensions | 49" x 8.75" x 3.5" (124.5 x 22.2 x 8.9 cm) |
| Shipping Weight | 15 lbs (6.8 kg) |
| Weight Capacity | 20 lbs -9.1 kg/display |
| Accessory Type | InstallationMounting Brackets |
| Adjustability | FixedHeight AdjustableLateral ShiftMicro-Adjustable |
| Application | Wall |
All other specifications 8
| LED Display Model | LG LSCB Series Ultra Slim |
| Manufacturer | LG |
| Number of Displays | 3 |
| Orientation | Landscape |
| Special Features | LED Video WallMulti-Display |
| TAA Compliant | Yes |
| UPC | 841872177182 |
| Certifications | TAA |
Resources
You'll need these with it
TiLED™ dvLED Wall Mount Vertical Connector Kit
TILVAB2$53.60
TiLED™ dvLED M6 Wall Mounting Hardware Kit
TILHDW1$25.60
PAC526, Large In-Wall Storage Box
PAC526$116.80
PAC525, In-Wall Storage Box
PAC525$79.20
TiLED™ Left dvLED Wall Mount for LG LSCB Series Ultra Slim, 3 Displays Tall
TILD1X3LG2-L$528.00
TiLED™ Right dvLED Wall Mount for LG LSCB Series Ultra Slim, 4 Displays Tall
TILD1X4LG2-R$704.80
TiLED™ Right dvLED Wall Mount for LG LSCB Series Ultra Slim, 5 Displays Tall
TILD1X5LG2-R$880.80

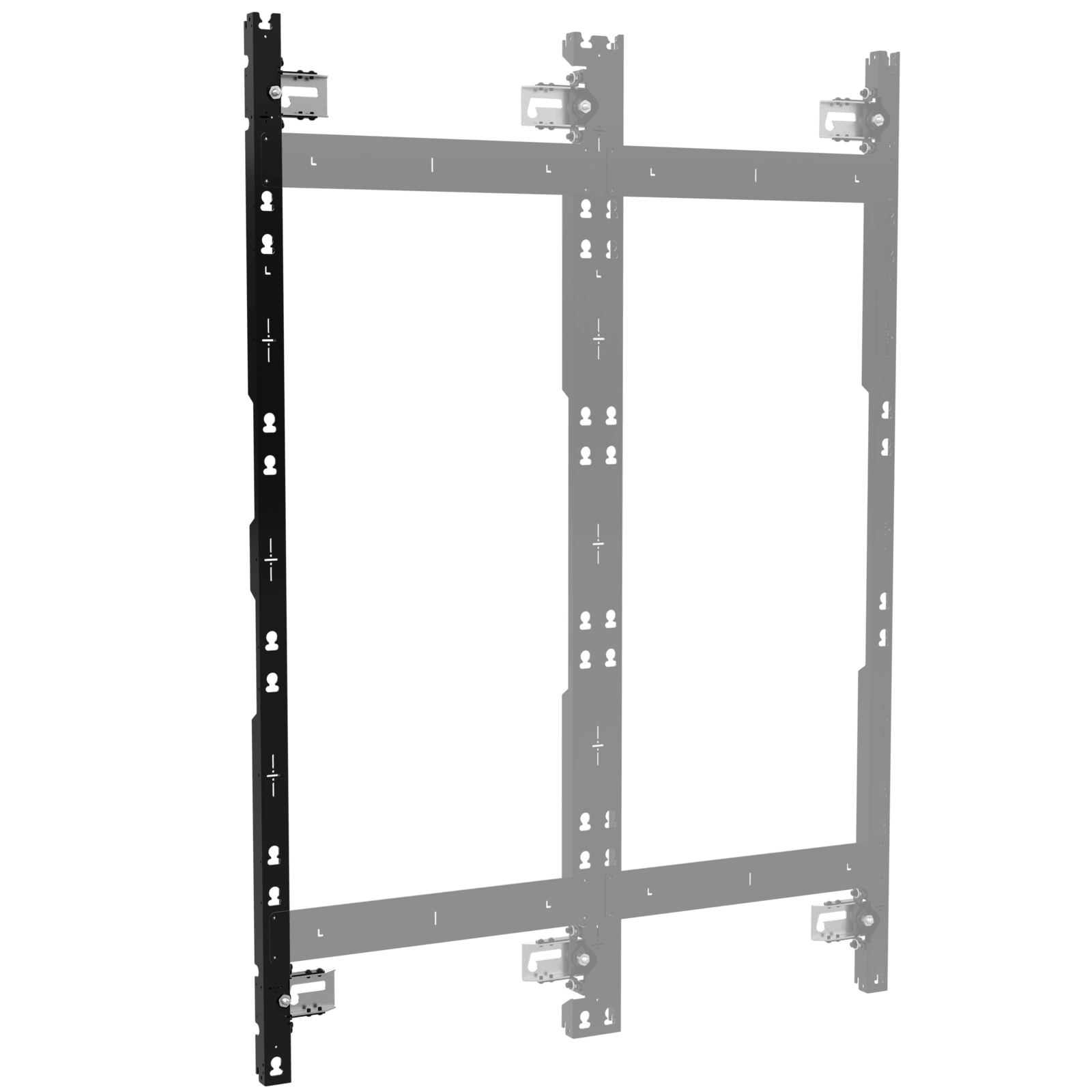

TiLED™ Left dvLED Wall Mount for LG LSCB Series Ultra Slim, 5 Displays Tall
TILD1X5LG2-L$880.80
TiLED™ Right dvLED Wall Mount for LG LSCB Series Ultra Slim, 3 Displays Tall
TILD1X3LG2-R$528.00
TiLED™ Middle dvLED Wall Mount for LG LSCB Series Ultra Slim, 4 Displays Tall
TILD1X4LG2-M$704.80
TiLED™ Left dvLED Wall Mount for LG LSCB Series Ultra Slim, 4 Displays Tall
TILD1X4LG2-L$704.80
TiLED™ Middle dvLED Wall Mount for LG LSCB Series Ultra Slim, 5 Displays Tall
TILD1X5LG2-M$880.80
Verified fitment
Questions about this part
Will the TILD1X3LG2-M fit my LG LSCB Series display?
Yes, this mount is verified for use with LG ELECTRONICS LSCB Series models, including the LSCB012 and LSCB015.
What else do I need to buy to complete the 3-display tall video wall?
To complete the 3-display vertical stack, you will also need the TILD1X3LG2-L left mount and the TILD1X3LG2-R right mount, as well as the TILHDW1 M6 hardware kit.
Can I adjust the alignment once the displays are mounted?
Yes, the system features micro-adjustability, lateral shift, height adjustment, and 0.75” (19 mm) of plumb adjustment to ensure perfectly flush panel edges.
Is this part suitable for landscape orientation?
This mount is specifically designed for landscape orientation in multi-display LED video wall applications.
Which document should I use for submittals and installation?
The TILD1X3LG2 Installation Manual covers the installation process for this part and its siblings in the 3, 4, and 5 display tall series.
