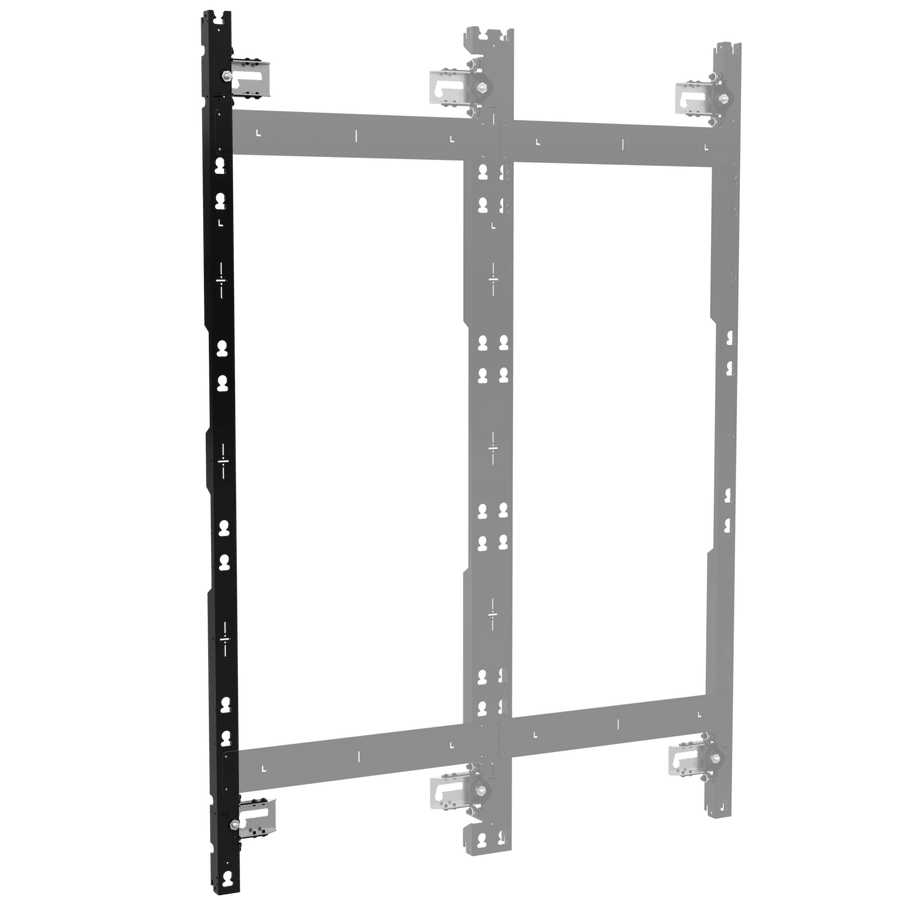

TiLED™ Left dvLED Wall Mount for LG LSCB Series Ultra Slim, 5 Displays Tall
Left structural component for LG LSCB Series Ultra Slim dvLED video walls, configured for 5 displays tall
The TiLED™ TILD1X5LG2-L is a left-side structural component designed specifically for the LG LSCB Series Ultra Slim direct view LED (dvLED) video walls. This modular mounting solution is engineered to support a configuration that is 5 displays tall. To complete a custom video wall assembly, this left component must be used in conjunction with the appropriate middle and right structural components, such as the TILD1X5LG2-M or TILD1X5LG2-R. The system allows for essential X, Y, and Z-axis adjustments, providing the micro-adjustable, lateral shift, and height adjustability required for precise panel alignment. This specific left component supports an equipment depth range of 3.29" – 4.04" (84mm-103mm) and provides 0.75" (19 mm) of plumb adjustment. This TAA compliant solution is built to facilitate flawless multi-display alignment in professional installations.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Equipment Depth Range | 3.29” – 4.04” (84mm-103mm) |
| Plumb Adjustment | 0.75” (19 mm) |
| Shipping Dimensions | 75.5" x 8.75" x 3.5" (191.8 x 22.2 x 8.9 cm) |
| Shipping Weight | 18 lbs (8.2 kg) |
| Weight Capacity | 20 lbs -9.1 kg/display |
| Accessory Type | InstallationMounting Brackets |
| Adjustability | FixedHeight AdjustableLateral ShiftMicro-Adjustable |
| Application | Wall |
All other specifications 8
| LED Display Model | LG LSCB Series Ultra Slim |
| Manufacturer | LG |
| Number of Displays | 5 |
| Orientation | Landscape |
| Special Features | LED Video WallMulti-Display |
| TAA Compliant | Yes |
| UPC | 841872177236 |
| Certifications | TAA |
Resources
You'll need these with it
TiLED™ dvLED Wall Mount Vertical Connector Kit
TILVAB2$53.60
TiLED™ dvLED M6 Wall Mounting Hardware Kit
TILHDW1$25.60
PAC526, Large In-Wall Storage Box
PAC526$116.80
PAC525, In-Wall Storage Box
PAC525$79.20
TiLED™ Left dvLED Wall Mount for LG LSCB Series Ultra Slim, 3 Displays Tall
TILD1X3LG2-L$528.00
TiLED™ Right dvLED Wall Mount for LG LSCB Series Ultra Slim, 4 Displays Tall
TILD1X4LG2-R$704.80
TiLED™ Right dvLED Wall Mount for LG LSCB Series Ultra Slim, 5 Displays Tall
TILD1X5LG2-R$880.80

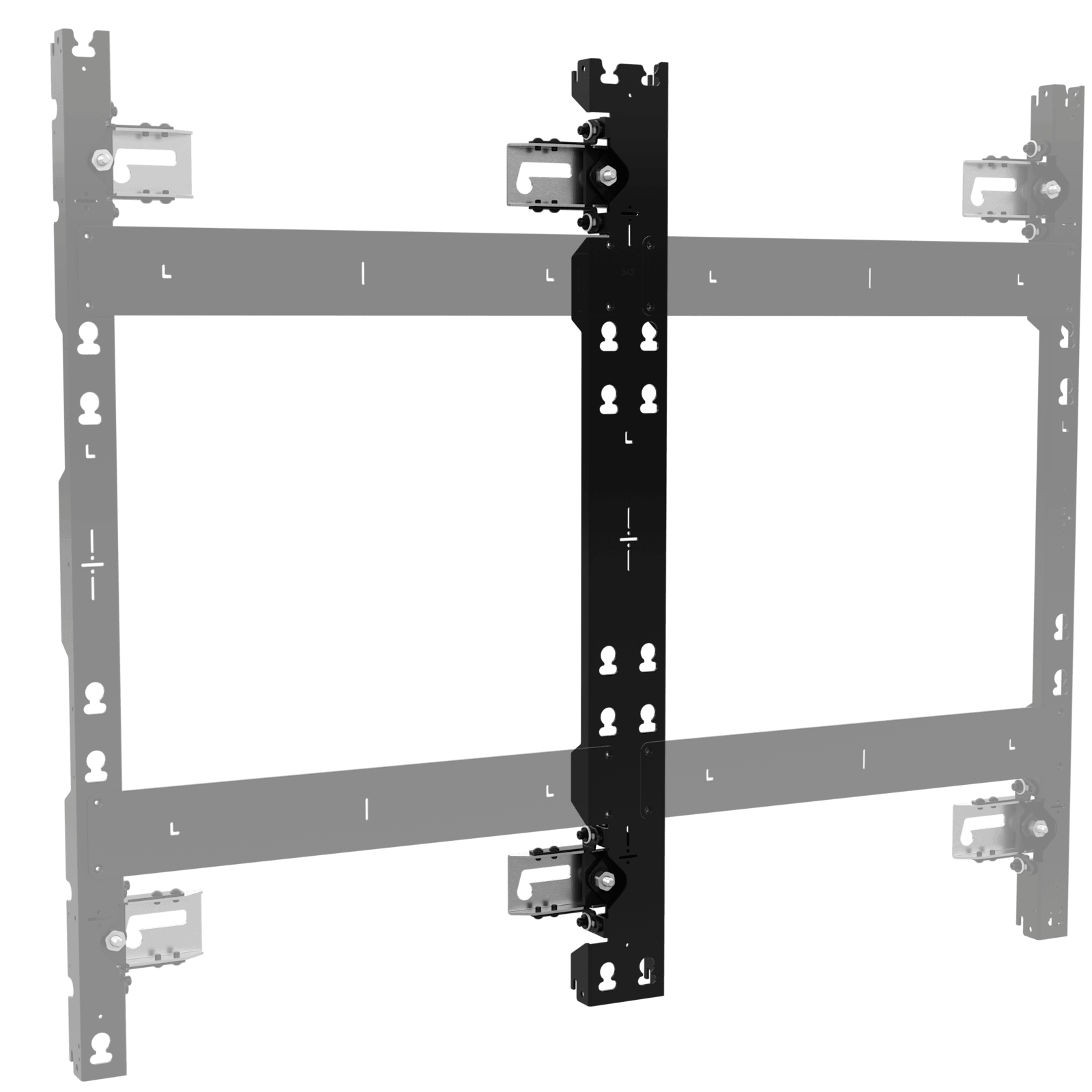

TiLED™ Middle dvLED Wall Mount for LG LSCB Series Ultra Slim, 3 Displays Tall
TILD1X3LG2-M$528.00
TiLED™ Right dvLED Wall Mount for LG LSCB Series Ultra Slim, 3 Displays Tall
TILD1X3LG2-R$528.00
TiLED™ Middle dvLED Wall Mount for LG LSCB Series Ultra Slim, 4 Displays Tall
TILD1X4LG2-M$704.80

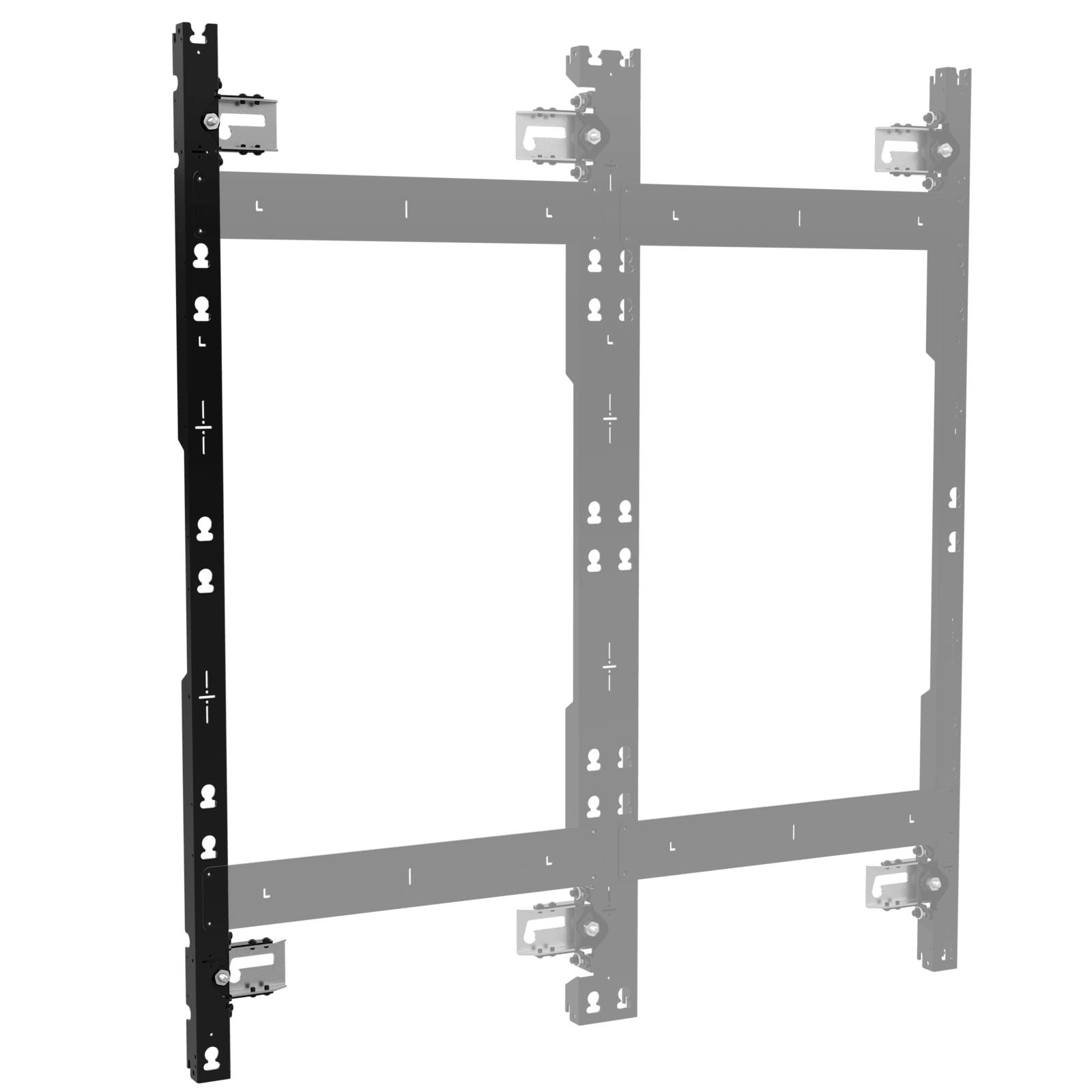

TiLED™ Left dvLED Wall Mount for LG LSCB Series Ultra Slim, 4 Displays Tall
TILD1X4LG2-L$704.80

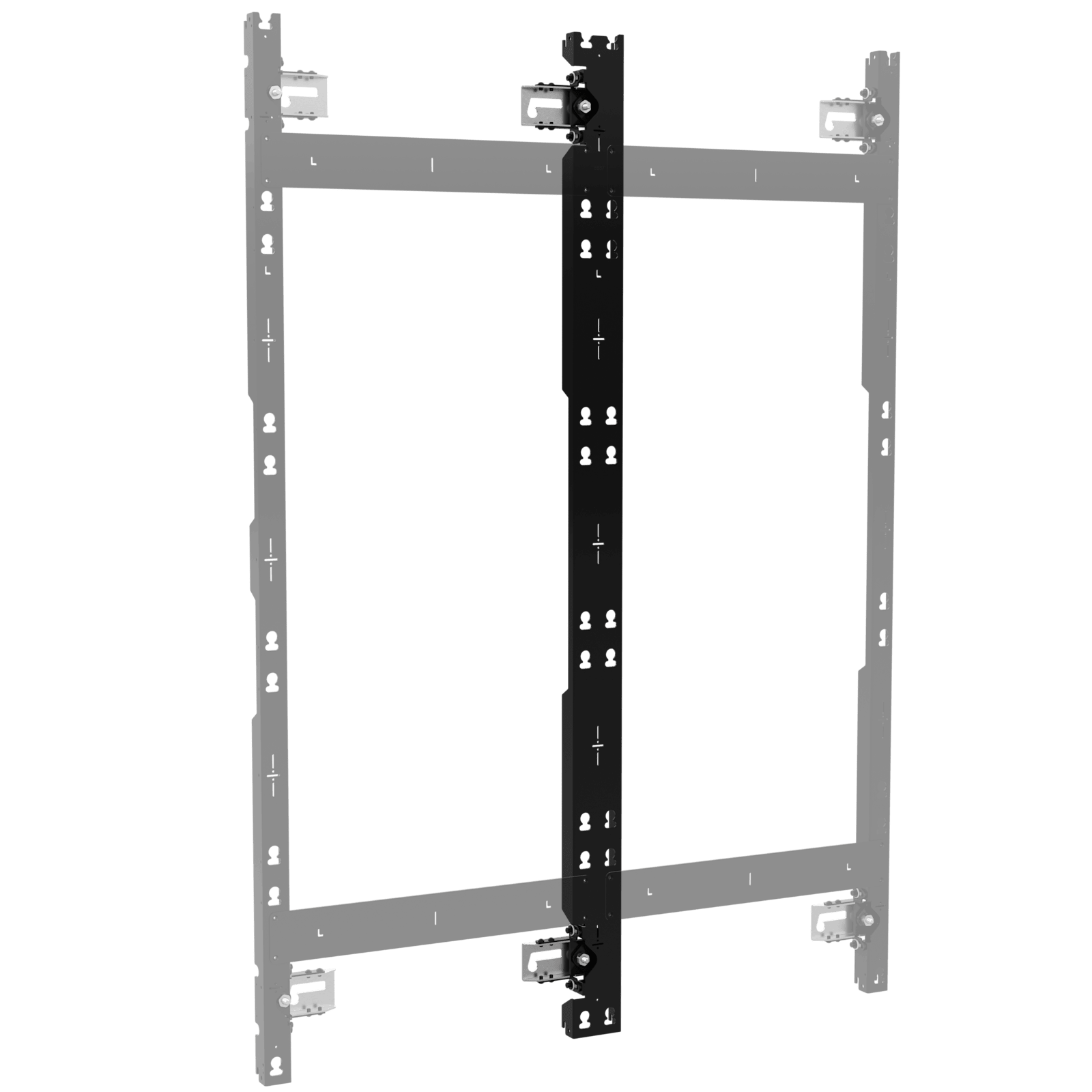

TiLED™ Middle dvLED Wall Mount for LG LSCB Series Ultra Slim, 5 Displays Tall
TILD1X5LG2-M$880.80
Verified fitment
Questions about this part
Will this mount fit my LG LSCB Series displays?
Yes, this is verified for the LG LSCB Series and LSCB012 models, including the LSCB015.
How many displays does this specific SKU support?
The TILD1X5LG2-L is a left-side component configured for a video wall that is 5 displays tall.
What else do I need to buy to complete the video wall?
This is a single structural component; you will also need the corresponding middle and right components, such as the TILD1X5LG2-M or TILD1X5LG2-R, to build the assembly.
Can I adjust the alignment once the display is mounted?
Yes, the system offers micro-adjustable, lateral shift, and height adjustability to ensure perfect panel alignment.
What is the depth requirement for the installation?
The equipment depth range for this mounting solution is 3.29" – 4.04" (84mm-103mm).
