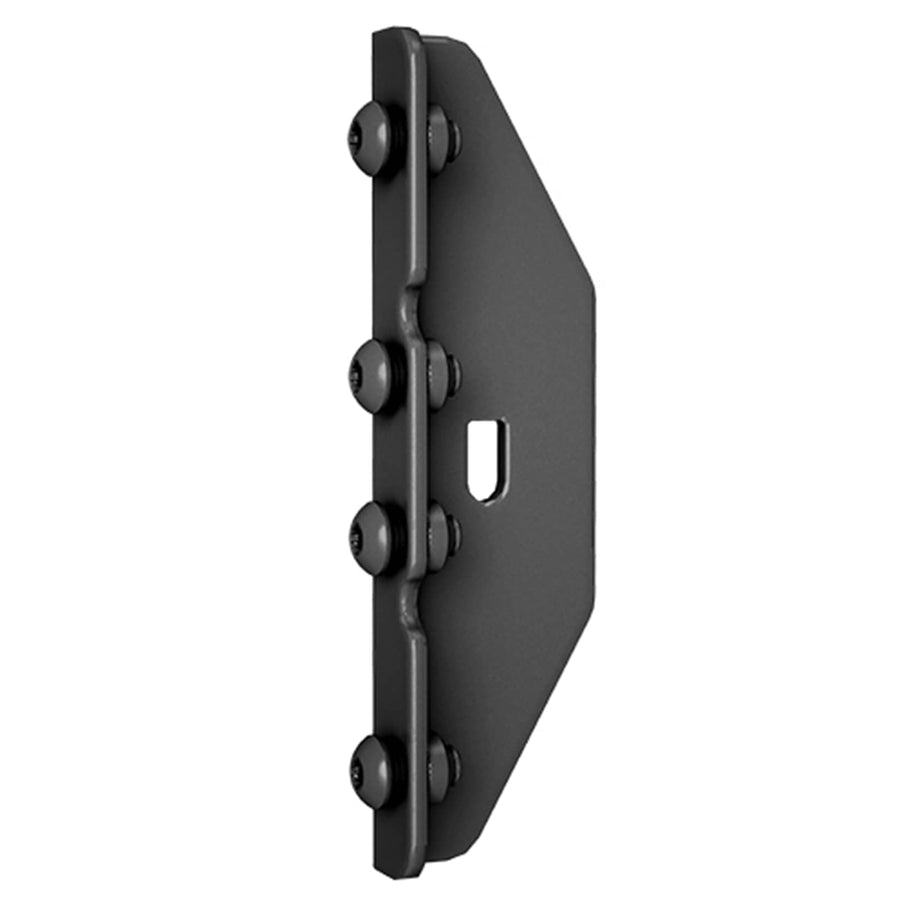

TiLED™ dvLED Wall Mount Vertical Connector Kit-TILVABUU
Vertical connector kit for TiLED™ dvLED wall mount systems, compatible with Barco XT and Unilumin UpanelS models

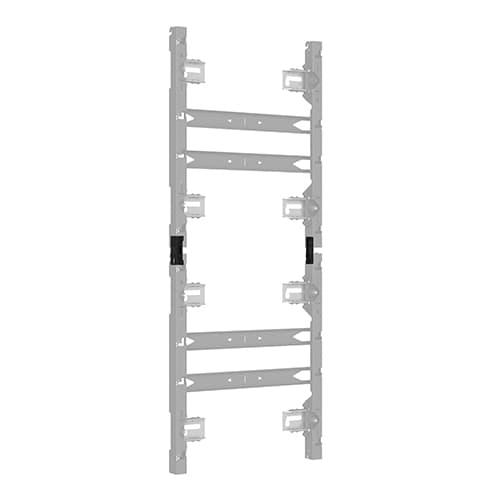

The Chief TILVABUU is a vertical connector kit designed to facilitate the assembly of TiLED™ dvLED wall mount systems. This kit provides the necessary hardware to vertically connect any combination of Chief’s TIL1X2UU, TIL1X3UU, and TIL1X4UU mounting systems. It is engineered specifically for multi-display applications, allowing for a cohesive video wall installation. This accessory is verified for use with 8 specific display models from 2 manufacturers, including Barco XT models (XT0.9, XT1.2, XT1.5, XT1.9) and Unilumin UpanelS models (Upanel .9S, Upanel 1.2S, Upanel 1.5S, Upanel 1.9S). The kit is TAA compliant and is built to work with the XT Series base mounting systems for wall applications. The package contains two brackets required for the vertical connection of the specified mounting rails.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Dimensions | 9.5" x 7" x 1.5" (241.3 x 177.8 x 38.1 mm) |
| Shipping Weight | 1 lbs (0.5 kg) |
| Accessory Type | Installation and Mounting Hardware |
| Application | Wall |
| Base Series | XT Series |
| LED Display Model | Barco XTUnilumin UpanelS |
| Manufacturer | Barco |
| Special Features | Multi-Display |
| TAA Compliant | Yes |
| UPC | 841872173085 |
| Certifications | TAA |
Resources
You'll need these with it
Verified fitment
Questions about this part
Which TiLED™ mounts is the TILVABUU compatible with?
This kit is designed to vertically connect combinations of the Chief TIL1X2UU, TIL1X3UU, and TIL1X4UU mounting systems.
Will this kit work with my Barco or Unilumin displays?
Yes, it is verified for use with Barco XT models such as the XT1.5 and Unilumin UpanelS models like the Upanel 1.2S.
What is included in the TILVABUU kit?
The kit includes two brackets specifically for vertical connection of the mounting systems.
Is this product TAA compliant?
Yes, the TILVABUU is TAA compliant.
What documentation is available for submittals?
You can access the TILVABUU technical drawing in PDF format or the DWG CAD drawing for detailed architectural planning.
