TiLED™ dvLED Wall Mount Vertical Connector Kit-TILVABPT
Vertical connector kit for TiLED™ LED video wall mounting systems, used to connect TIL1X2PT, TIL1X3PT, or TIL1X4PT components

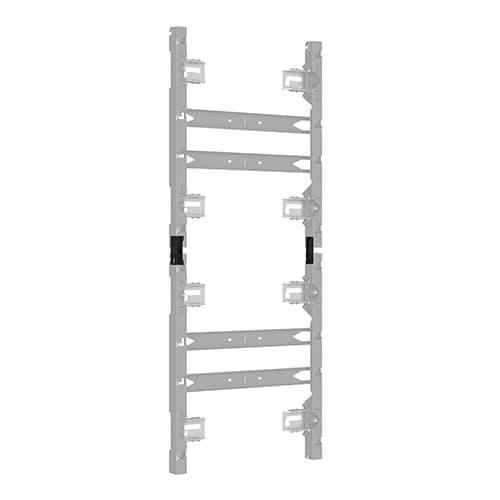

The Chief TILVABPT is a vertical connector kit designed for professional LED video wall installations. This accessory provides the necessary connection between multiple components within a TiLED™ mounting system to facilitate vertical expansion. It is specifically engineered for use with the Leyard TVF series and LG LAS Fine-pitch displays. This kit allows installers to vertically connect any combination of the Chief TIL1X2PT, TIL1X3PT, and TIL1X4PT mounting systems to create a cohesive multi-display array. When configuring large-scale LED video walls, this kit is essential for integrating individual mounting segments into a unified vertical structure. The kit includes two brackets and the required assembly hardware to complete the connection. This product is TAA compliant, making it suitable for projects requiring specific procurement compliance. For complex configurations, installers can use the TiLED™ LED Video Wall Configurator to verify the requirements for their specific layout.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Dimensions | 9.5" x 7" x 1.5" (241.3 x 177.8 x 38.1 mm) |
| Shipping Weight | 1 lbs (0.5 kg) |
| Accessory Type | Installation |
| Adjustability | Fixed |
| Application | Wall |
| Base Series | TVF Series |
| LED Display Model | Leyard TVFLG LAS |
| Manufacturer | Leyard |
| Special Features | LED Video WallMulti-Display |
| TAA Compliant | Yes |
| UPC | 841872173672 |
| Certifications | TAA |
Resources
Verified fitment
Questions about this part
Which Chief mounting systems is the TILVABPT compatible with?
The TILVABPT is designed to vertically connect combinations of the Chief TIL1X2PT, TIL1X3PT, and TIL1X4PT series mounting systems.
What LED display series is this connector kit intended for?
This kit is intended for use with the LG LAS Fine-pitch series and the Leyard TVF series displays.
Is the TILVABPT TAA compliant?
Yes, this product is TAA compliant for projects requiring adherence to these standards.
What is included in the TILVABPT kit?
The kit contains two brackets and the assembly hardware needed for vertical connection.
Which document should I use for submittals for this kit?
Installers can refer to the TILVABPT Technical Drawing (PDF) or the TILVABPT CAD Drawing (dwg) for detailed submittal information.
