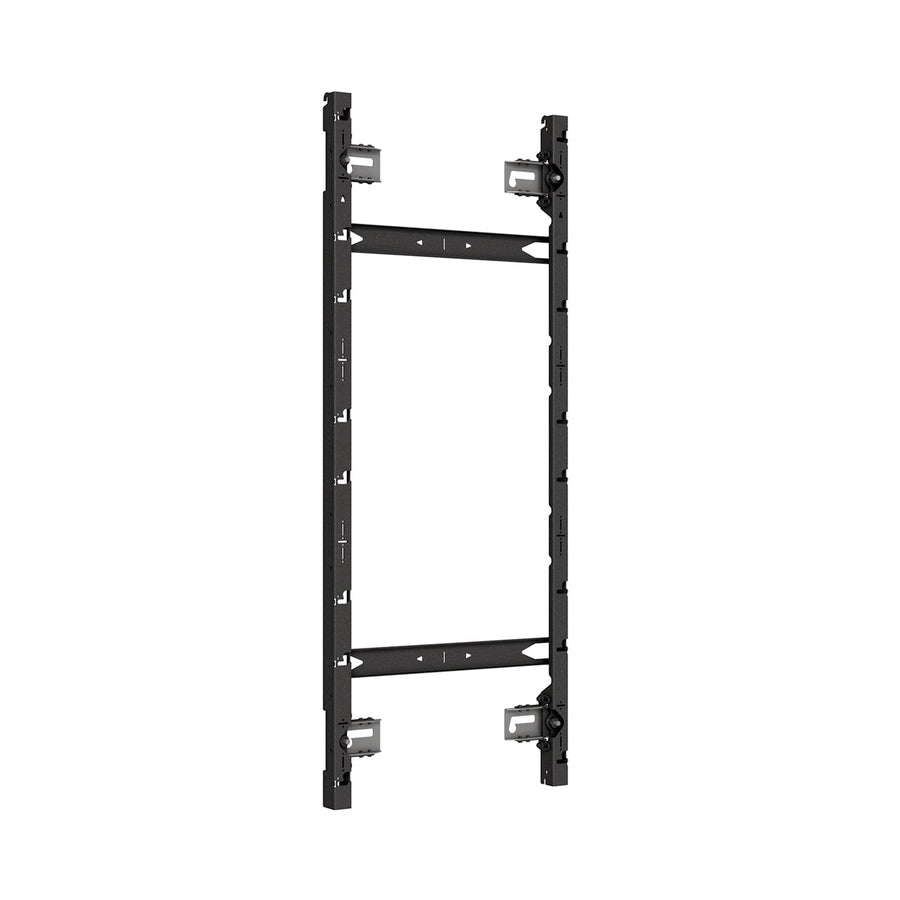

TiLED™ 1x5 dvLED Wall Mount for Unilumin® UpanelS™ and Barco XT Series
Wall mount for 5 Unilumin UpanelS or Barco XT displays in a 1x5 landscape configuration
The Chief TiLED™ TIL1X5UU is a modular wall mount purpose-built for Unilumin® UpanelS™ and Barco XT Series LED displays. Designed to support 5 displays in a landscape orientation, this mount facilitates the creation of expansive, modular video walls through a scalable system. It can be connected to the sides, top, or bottom of other TiLED™ UU mounts, allowing integrators to build various video wall configurations without the need for custom lead times or project registration. This mount features integrated plumb adjustment of 1” (25 mm) to compensate for uneven wall surfaces. Installation is streamlined using offset mounting slots that protect the sides of the LED modules from friction during setup. For low-profile installations, the equipment depth range—with the display installed—is between 3.85" - 4.85" (98mm-123 mm). This UL Listed and TAA Compliant solution provides a standardized, stockable option for professional dvLED installations.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 0.98 in (2.5 cm) |
| Height | 67.09 in (170.4 cm) |
| Overall Dimensions | 67.09" x 21.25" x 0.98” (1704 x 540 x 25 mm) |
| Plumb Adjustment | 1” (25 mm) |
| Shipping Weight | 32 lbs (14.5 kg) |
| Weight Capacity | 100 lbs (45.4 kg) |
| Width | 21.25 in (54 cm) |
| Accessory Type | InstallationMounting Brackets |
All other specifications 11
| Adjustability | FixedHeight AdjustableLateral ShiftMicro-Adjustable |
| Application | Wall |
| Base Series | XT Series |
| LED Display Model | Barco XTUnilumin UpanelS |
| Manufacturer | Barco |
| Number of Displays | 5 |
| Orientation | Landscape |
| Special Features | LED Video WallModularMulti-DisplaySecurityStacked |
| TAA Compliant | Yes |
| UPC | 841872176772 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
TiLED™ dvLED Wall Mount Vertical Connector Kit-TILVABUU
TILVABUU$53.60
PAC526, Large In-Wall Storage Box
PAC526$116.80
PAC525, In-Wall Storage Box
PAC525$79.20
TiLED™ 1x2 dvLED Wall Mount for Unilumin® UpanelS™ and Barco XT Series
TIL1X2UU$423.20

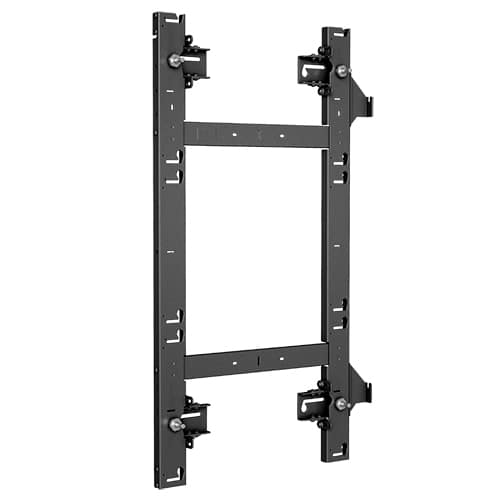

TiLED™ 1x3 dvLED Wall Mount for Unilumin® UpanelS™ and Barco XT Series
TIL1X3UU$634.40

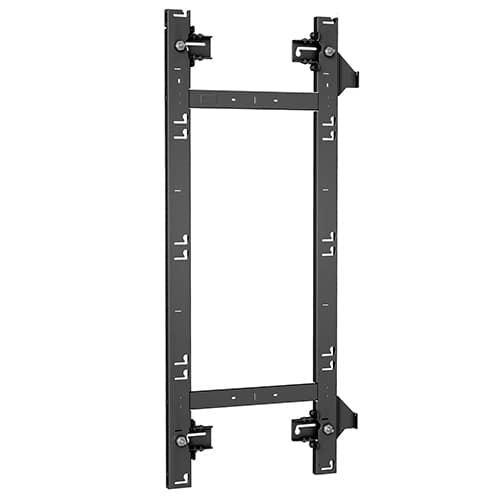

TiLED™ 1x4 dvLED Wall Mount Unilumin® UpanelS™ and Barco XT Series
TIL1X4UU$846.40
Verified fitment
Questions about this part
Will the TiLED™ TIL1X5UU fit my Barco or Unilumin displays?
This mount is specifically designed for the Unilumin® UpanelS™ and Barco XT Series. It is verified to support 5 displays in a 1x5 landscape arrangement.
How do I adjust the mount if my wall is not perfectly level?
The TIL1X5UU includes 1” (25 mm) of integrated plumb adjustment to help you compensate for wall imperfections during installation.
Can I combine this mount with other TiLED™ components?
Yes, the modular design allows you to connect this unit to the sides, top, or bottom of other TiLED™ UU mounts to create custom video wall layouts.
What is the installation depth for a low-profile look?
When the display is mounted, the equipment depth range is between 3.85" - 4.85" (98mm-123 mm).
Does this mount require custom fabrication or long lead times?
No, this is an off-the-shelf solution set that is stockable and ready to ship, avoiding the need for custom manufacturing or project registration.
