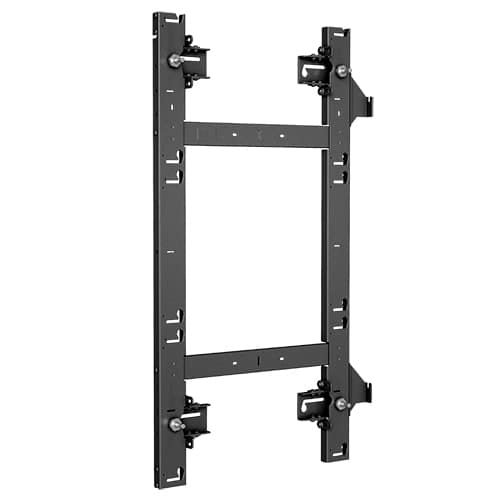

TiLED™ 1x3 dvLED Wall Mount for Unilumin® UpanelS™ and Barco XT Series
Modular 1x3 dvLED wall mount for Barco XT and Unilumin UpanelS displays, featuring 1" plumb adjustment and TAA compliance
The Chief TIL1X3UU is a specialized TiLED 1x3 dvLED wall mount designed to support three LED displays in a landscape orientation. This modular mounting system is purpose-built for use with Barco XT Series and Unilumin UpanelS displays. To facilitate complex video wall configurations, this mount can be connected to the sides, top, or bottom of other TiLED UU mounts, allowing for continuous and creative modular designs. For installers managing uneven surfaces, the integrated 1" (25 mm) plumb adjustment helps compensate for wall imperfections to ensure a level installation. The design incorporates offset mounting slots to protect the sides of the LED modules from damaging friction during the installation process. Additionally, keyhole slots are included to allow for rapid and efficient mounting. When installed with the displays, this system achieves a low-profile result with a depth range between 3.85" and 4.85" (98–123 mm). This is an off-the-shelf, stockable solution that does not require custom lead times or project registration.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 0.98 in (2.5 cm) |
| Height | 40.08 in (101.8 cm) |
| Overall Dimensions | 40.08" x 21.25" x 0.98” (1018 x 540 x 25 mm) |
| Plumb Adjustment | 1” (25 mm) |
| Shipping Weight | 24 lbs (10.9 kg) |
| Width | 21.25 in (54 cm) |
| Accessory Type | InstallationMounting Brackets |
| Adjustability | FixedHeight AdjustableLateral ShiftMicro-Adjustable |
All other specifications 10
| Application | Wall |
| Base Series | XT Series |
| LED Display Model | Barco XTUnilumin UpanelS |
| Manufacturer | Barco |
| Number of Displays | 3 |
| Orientation | Landscape |
| Special Features | LED Video WallModularMulti-Display |
| TAA Compliant | Yes |
| UPC | 841872173078 |
| Certifications | TAA |
Resources
You'll need these with it
TiLED™ dvLED Wall Mount Vertical Connector Kit-TILVABUU
TILVABUU$53.60
TiLED™ 2 High dvLED Wall Mount Side Covers for Unilumin® UpanelS™ and Barco XT Series
TILSC2HUU$307.20
TiLED™ 3 High dvLED Wall Mount Side Covers for Unilumin® UpanelS™ and Barco XT Series
TILSC3HUU$307.20
Verified fitment
Questions about this part
Will the TIL1X3UU work with my Unilumin or Barco displays?
Yes, it is specifically designed for Barco XT Series (including XT0.9, XT1.2, and XT1.5) and Unilumin UpanelS displays (including .9S, 1.2S, 1.5S, and 1.9S).
How does the TIL1X3UU handle uneven walls?
The mount includes 1" (25 mm) of integrated plumb adjustment to help you compensate for imperfections in the wall surface during installation.
Can I expand this mounting system into a larger video wall?
Yes, the modular design allows you to connect this mount to the top, bottom, or sides of other TiLED UU mounts for continuous configurations.
What accessories are needed to complete the installation?
For vertical connections, you may need the TiLED dvLED Wall Mount Vertical Connector Kit (SKU: TILVABUU) and side covers (SKU: TILSC2HUU or TILSC3HUU).
How much clearance is required behind the display?
When the display is mounted, the system maintains a depth range of 3.85" to 4.85" (98–123 mm) for a low-profile finish.
