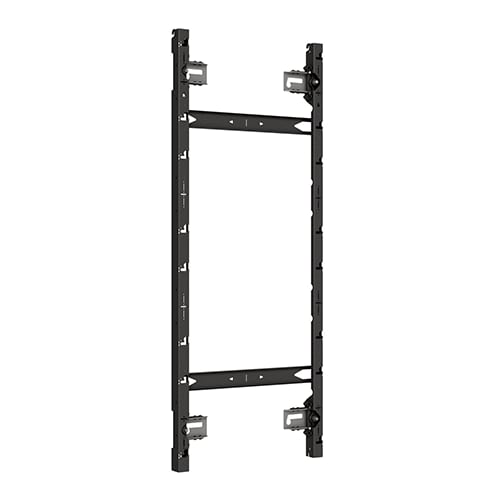

TiLED™ 1x5 dvLED Wall Mount for Philips 27BDL 9000 Series
Modular 1x5 dvLED wall mount for Philips 27BDL 9000 Series displays, supporting 5 vertically stacked displays with multi-axis adjustment
The Chief TIL1X5PH is a TiLED™ dvLED Wall Mount specifically engineered for the Philips 27BDL 9000 Series. This modular system is designed to support 5 displays stacked vertically in a 1x5 configuration to create a continuous, seamless video wall. To ensure a flawless installation, the mount utilizes offset mounting slots that protect sensitive LED cabinets from friction during the setup process. Once the displays are secured, installers can utilize integrated X, Y, and Z-axis adjustments to achieve precise positioning. The X-axis lateral shift allows for exact horizontal alignment, the Y-axis vertical shift ensures perfect cabinet-to-cabinet meeting points, and the Z-axis plumb adjustments compensate for uneven wall surfaces to maintain a perfectly flat mounting plane. This TAA-compliant and UL-listed solution is built for professional modular video wall deployments where high-precision alignment is mandatory.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 2.63 in (6.7 cm) |
| Height | 67 in (170.2 cm) |
| Overall Dimensions | 67" x 23.9" x 2.63” (1701 x 608 x 67 mm) |
| Shipping Weight | 29.5 lbs (13.4 kg) |
| Weight Capacity | 100 lbs (45.4 kg) |
| Width | 23.9 in (60.7 cm) |
| Accessory Type | InstallationMounting Brackets |
| Adjustability | FixedHeight AdjustableLateral ShiftMicro-Adjustable |
All other specifications 10
| Application | Wall |
| Base Series | 9000 Series |
| LED Display Model | Philips 27BDL 9000 |
| Manufacturer | Philips |
| Number of Displays | 5 |
| Orientation | Landscape |
| Special Features | LED Video WallModularMulti-DisplaySecurityStacked |
| TAA Compliant | Yes |
| UPC | 841872175362 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
TiLED™ 3 High dvLED Wall Mount Side Covers for Philips 27BDL 9000 Series
TILSC3HPH$307.20
TiLED™ dvLED Wall Mount Vertical Connector Kit-TILVAB1
TILVAB1$53.60
TiLED™ 2 High dvLED Wall Mount Side Covers for Philips 27BDL 9000 Series
TILSC2HPH$307.20
Proximity® PAC527L Extra-Large In-Wall Storage Box with Lever Lock™
PAC527L$300.80
PAC526, Large In-Wall Storage Box
PAC526$116.80
PAC525, In-Wall Storage Box
PAC525$79.20
TiLED™ 1x2 dvLED Wall Mount for Philips 27BDL 9000 Series
TIL1X2PH$423.20
TiLED™ 1x4 dvLED Wall Mount for Philips 27BDL 9000 Series
TIL1X4PH$846.40
TiLED™ 1x3 dvLED Wall Mount for Philips 27BDL 9000 Series
TIL1X3PH$634.40
Verified fitment
Questions about this part
Will the TIL1X5PH fit my Philips 27BDL 9000 Series display?
Yes, this mount is verified for the Philips 27BDL 9000 Series, including models such as the 27BDL9119L/00 and 27BDL9115L/00.
How many displays can be mounted with this specific SKU?
The TIL1X5PH is configured to support 5 displays in a single vertical stack.
What adjustments are available for aligning the LED cabinets?
The mount provides X-axis lateral shift for horizontal positioning, Y-axis vertical shift for cabinet alignment, and Z-axis plumb adjustments for surface flatness.
What do I need to purchase to complete the installation?
You may need accessories such as the TILVAB1 Vertical Connector Kit or TILSC2HPH/TILSC3HPH Side Covers depending on your specific configuration.
Does this mount include the technical drawings for submittals?
Yes, technical PDF drawings and DWG CAD files are available for this model to assist with project planning.
