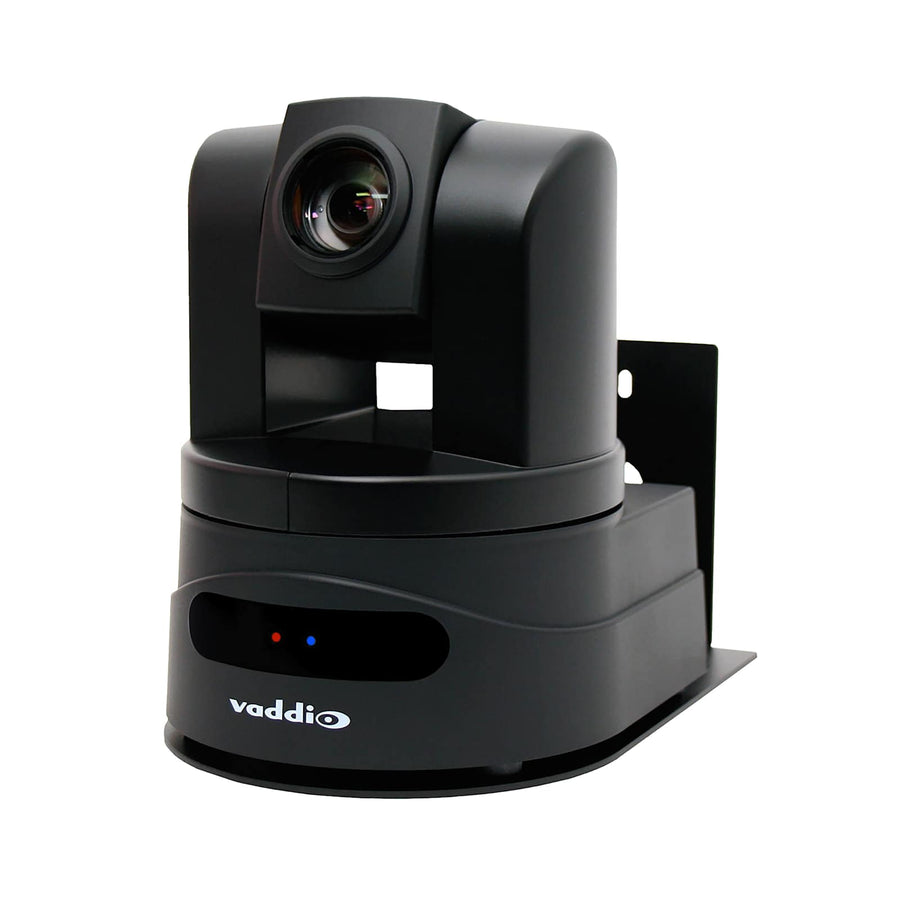

Thin Profile Wall Mount Bracket for Vaddio HD-Series Cameras
Thin profile wall mount for Vaddio HD-Series cameras, featuring a black heavy-gauge steel construction
The Vaddio 535-2020-230 provides a clean and complete installation for various Vaddio HD-Series cameras. This thin profile bracket is constructed from heavy-gauge steel and comes in a black finish. For installers, this mount offers versatile installation options, as it can be mounted directly to a drywall surface or onto a standard 2-gang electrical box. The unit is TAA compliant and carries CE and FCC certifications. This specific SKU is the black variant of the series; a white version is also available. This bracket is specifically designed for Vaddio ClearVIEW HD-20SE, HD-USB, and PowerVIEW HD-22/HD-30 cameras. For technical submittals, the Model HD-20/19/18 Thin Profile Wall Mount Bracket Manual is available to assist with the installation and connections process.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 10 in (25.4 cm) |
| Height | 5.14 in (13.1 cm) |
| Product Weight | 3.2 lbs (1.5 kg) |
| Shipping Dimensions | 12" x 10" x 10" (304.8 x 254 x 254 mm) |
| Shipping Weight | 4 lbs (1.8 kg) |
| Width | 6.77 in (17.2 cm) |
| Application | Wall |
| Color | Black |
All other specifications 5
| Compatible With | Vaddio |
| TAA Compliant | Yes |
| UPC | 840077500474 |
| Certifications | CEFCCTAA |
| Warranty | 3 years |
Resources
You'll need these with it
Verified fitment
Questions about this part
Which Vaddio cameras is the 535-2020-230 compatible with?
This bracket fits the Vaddio ClearVIEW HD-20SE, HD-USB, and PowerVIEW HD-22 or HD-30 models.
What mounting surfaces can I use with this wall mount?
The bracket is designed to be mounted to either a drywall surface or a standard 2-gang electrical box.
What is the difference between this and the white version?
This SKU (535-2020-230) is the black finish version of this thin profile mount series.
Does this mount include the hardware needed for installation?
Yes, mounting hardware is included with the 535-2020-230 bracket.
Is there a manual available for submittals?
Yes, you can refer to the Model HD-20/19/18 Thin Profile Wall Mount Bracket Manual for installation and connection details.
