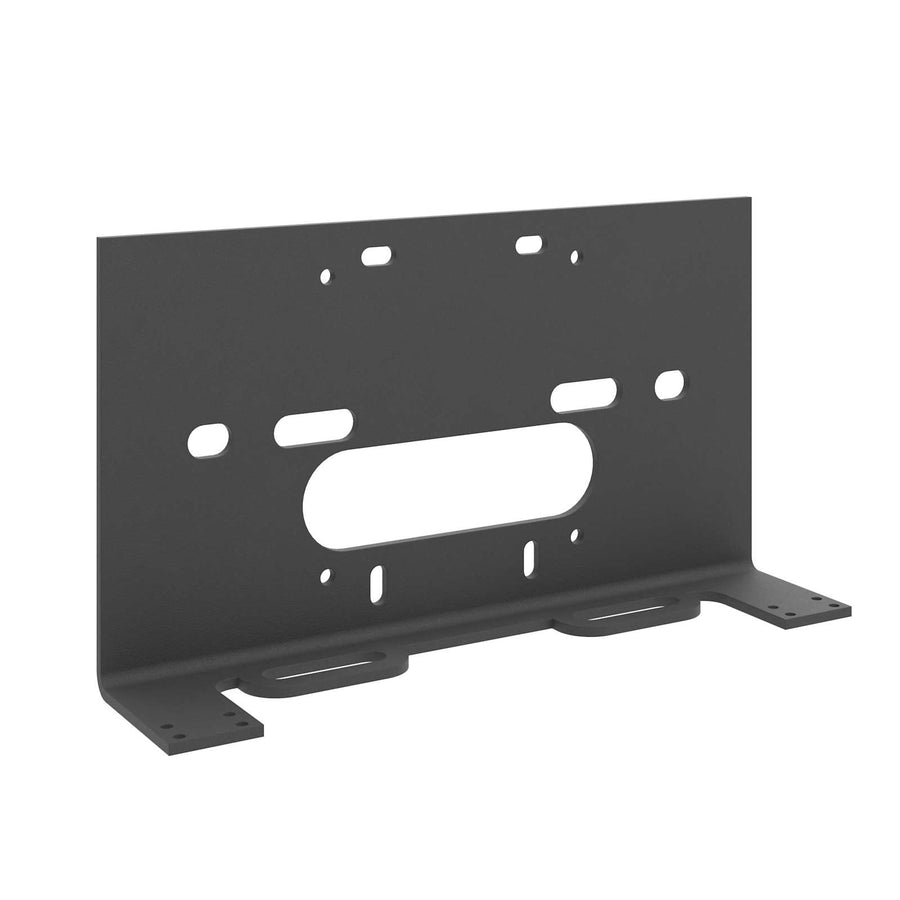

Venture VideoBAR Deluxe Mount
Low-profile wall mount for Venture VideoBAR, reduces installation depth to 5.5 inches, compatible with Chief mounting accessories
The Vaddio 535-50909-000 Venture VideoBAR Deluxe Mount provides a professional, low-profile solution for wall-mounted video conferencing. By replacing the standard table stand with this deluxe bracket, installers can reduce the total mounting depth to 5.5 inches, creating a much cleaner and more integrated appearance on the wall. This heavy-gauge, powder-coated steel mount is TAA compliant and designed for rapid deployment. Installation is straightforward: simply unscrew the existing table stand from the Venture VideoBAR and secure the unit with the Deluxe Mount. Beyond direct wall mounting, this SKU offers significant flexibility for complex system integrations. It is compatible with Chief FCA832/842 for Fusion® mounted displays, the SCAS for mounting above or below a display on a Voyager Cart, and the PACSBM for attaching to VESA mounting holes below a display. It also functions as an adapter for use with Chief Thinstall™ swing arms when paired with a TA350.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Dimensions | 8.1" x 6.6" x 3" (205.8 x 167.7 x 76.2 mm) |
| Shipping Weight | 1.3 lbs (0.6 kg) |
| Application | Wall |
| Color | Black |
| Compatible With | Vaddio |
| TAA Compliant | Yes |
| UPC | 840077508708 |
| Certifications | CEFCCTAA |
| Warranty | 3 years |
Resources
You'll need these with it
Questions about this part
Will the 535-50909-000 work with my Chief mounting system?
Yes, this mount is compatible with Chief FCA832/842, SCAS, PACSBM, and TA350 adapters for various integrated installation options.
How do I install the Venture VideoBAR Deluxe Mount?
To install, remove the standard table stand from the Venture VideoBAR and replace it with this deluxe mounting bracket.
What is the installation depth when using this mount?
This mount reduces the total wall mounting depth to 5.5 inches, providing a shallower profile than the included table stand.
Is this mount TAA compliant?
Yes, the 535-50909-000 is TAA compliant and carries CE and FCC certifications.
Can this be used on a mobile cart?
Yes, it can be used in a mobile setup and is compatible with the Chief Voyager Cart using the SCAS accessory.
