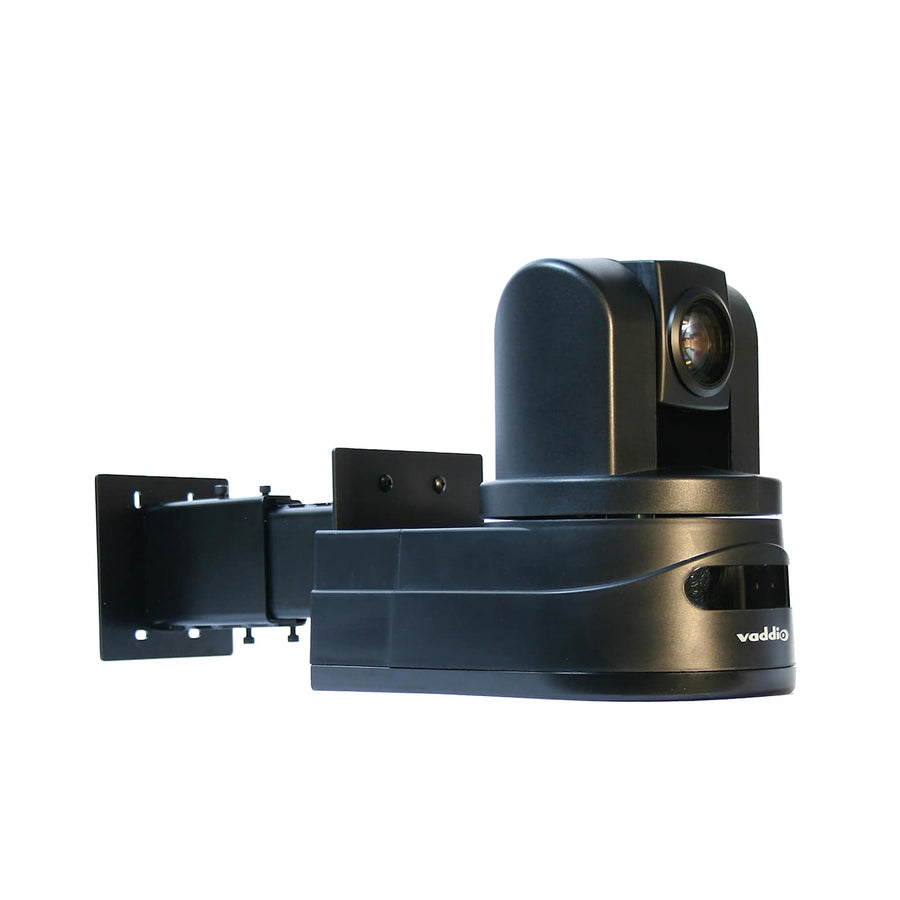

Adjustable Extension Wall Bracket for Thin Profile Camera Mounts and CONCEAL Mounts
Adjustable extension wall bracket extending from 4" to 8" for Vaddio camera mounting systems
The Vaddio 535-2100-202 is an adjustable extension wall mounting bracket designed to provide a clean and flexible installation for various camera systems. It is specifically engineered to work with Vaddio™ WallVIEW HD-Series, RoboSHOT™ Series, and CONCEAL wall mounting systems. This bracket allows installers to adjust the depth from 4" to 8" (10.16 to 20.32 cm) to achieve the desired camera positioning. It is designed to mount directly to a double gang wall box and utilizes the camera bracket bolt pattern for secure attachment. This TAA compliant bracket is compatible with Sony, Polycom, Cisco, and Vaddio equipment. Note that this specific model is not intended for use with Polycom VSX Codec brackets or ZoomSHOT/WideSHOT brackets unless drilling is performed.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 8 in (20.3 cm) |
| Shipping Dimensions | 12" x 10" x 10" (304.8 x 254 x 254 mm) |
| Shipping Weight | 4 lbs (1.8 kg) |
| Application | Wall |
| Color | Black |
| Compatible With | CiscoOtherPolycomSonyVaddio |
| TAA Compliant | Yes |
| UPC | 840077500498 |
| Certifications | CEFCCTAA |
| Warranty | 3 years |
Resources
Questions about this part
Will the 535-2100-202 work with my Vaddio RoboSHOT camera?
Yes, this bracket is specifically designed for Vaddio RoboSHOT Series, WallVIEW HD-Series, and CONCEAL wall mounting systems.
How much can I adjust the extension on this bracket?
The bracket provides an adjustable extension range from 4" to 8" (10.16 to 20.32 cm) to accommodate your specific installation depth.
What kind of wall box is required for installation?
This bracket is designed to mount to a standard double gang wall box and aligns with the camera bracket bolt pattern.
Is this bracket compatible with Polycom VSX Codec brackets?
This model is not for use with Polycom VSX Codec brackets unless you perform drilling on the bracket.
Is this product TAA compliant for government contracts?
Yes, the 535-2100-202 is TAA compliant and carries CE and FCC certifications.
