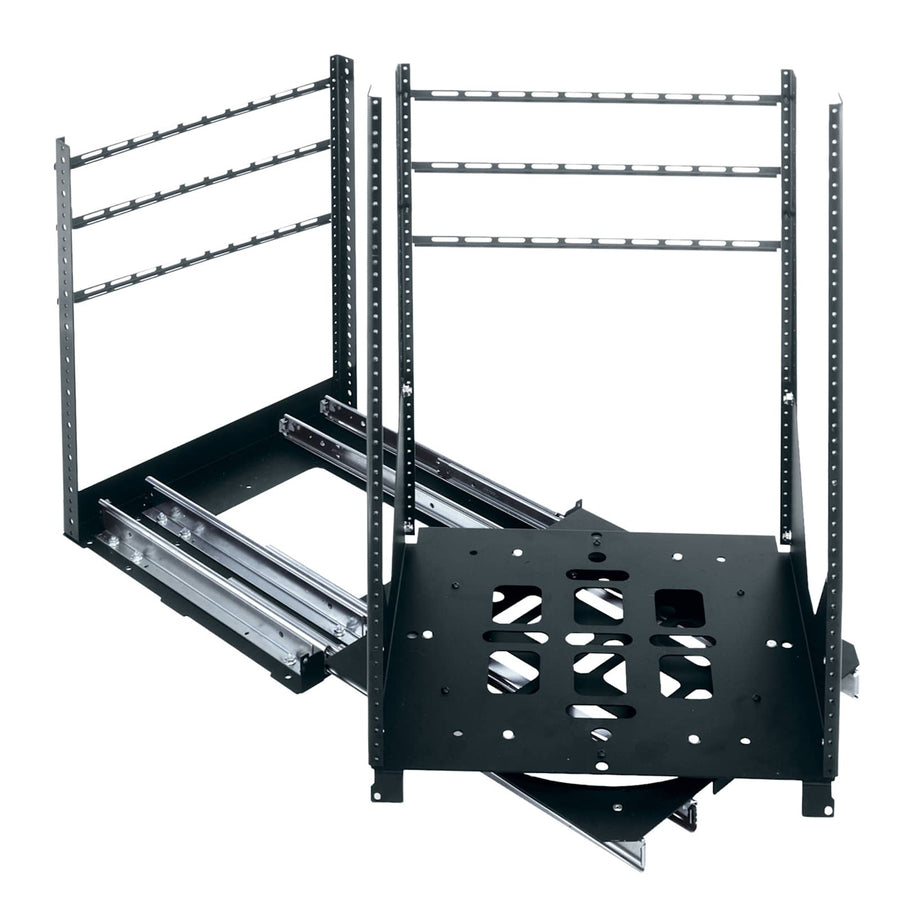

SRSR Series Slide Out Rotating Rail System Rack - SRSR-4-22
22 RU slide out rotating rack system providing easy rear access for equipment connections in millwork and cabinets
The SRSR-4-22 provides an efficient solution for achieving rear access to equipment connections within millwork, cabinets, and flush in-wall installations. This 22 RU rotating rack system is designed to extend and rotate up to 90 degrees in either direction, making it a vital tool for managing smaller systems where workspace is limited. To facilitate easier in-shop integration and on-site installation, the unit features a removable rack frame. The equipment bay provides stability during maintenance by locking at 0°, 60°, and 90° angles, and it can also lock in the fully extended position to simplify equipment integration. This model includes a self-centering mounting base to ensure the system is easily aligned within a cabinet opening. For effective cable management, the system utilizes a rear cable support working in conjunction with the rear rackrail. The front and rear 10-32 threaded rackrails are standard and include marked spaces for precise component placement. This TAA compliant unit has a weight capacity of 250 lbs (113.4 kg) and features a black flat powder coat finish.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 19.14 in (48.6 cm) |
| Height | 41.5 in (105.4 cm) |
| Rack Units | 22 RU |
| Shipping Weight | 60 lbs (27.2 kg) |
| Usable Depth | 17.25 in (43.8 cm) |
| Usable Height | 38.5 in (97.8 cm) |
| Weight Capacity | 250 lbs (113.4 kg) |
| Width | 19.13 in (48.6 cm) |
All other specifications 8
| Color | Black |
| Federal Ops Country of Origin | USA |
| Finish | Flat Powder Coat |
| Rack Rail Type | 10-32 |
| Rack Type | In-Cabinet |
| TAA Compliant | YesYes |
| UPC | 656747043307 |
| Certifications | TAA |
Resources
You'll need these with it
1 RU BlowerPanel, 100 CFM, 32dB, Anodized & 220-240VAC
IQBP-2A$620.10
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
1 RU Rack Vent Panel, Perforated with 64% Open Area
VT1$27.90
1 RU Flanged Blank Rack Panel, Steel
EB1$17.10

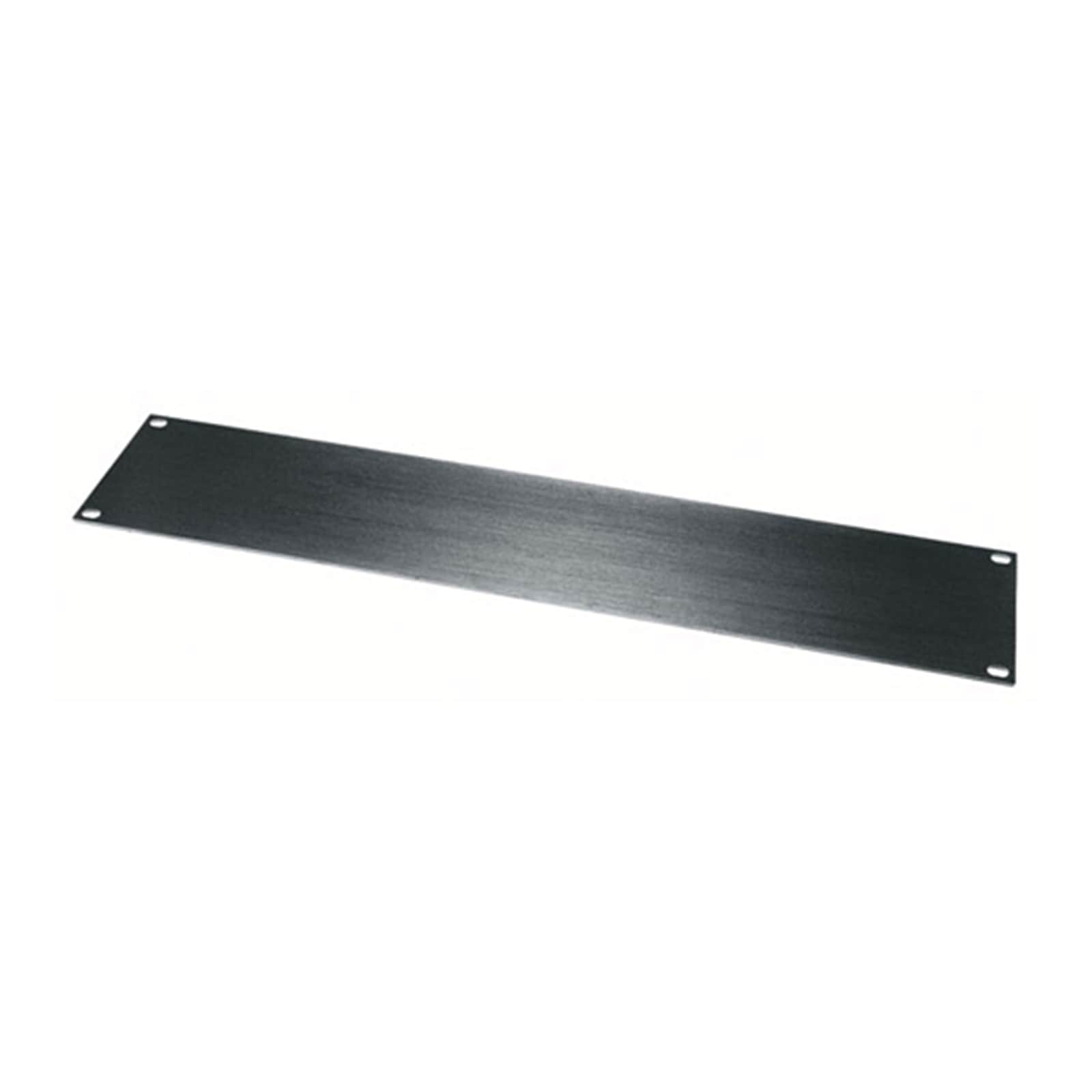

2 RU Flat Blank Rack Panel, Black Brushed and Anodized Aluminum
HBL2$40.50

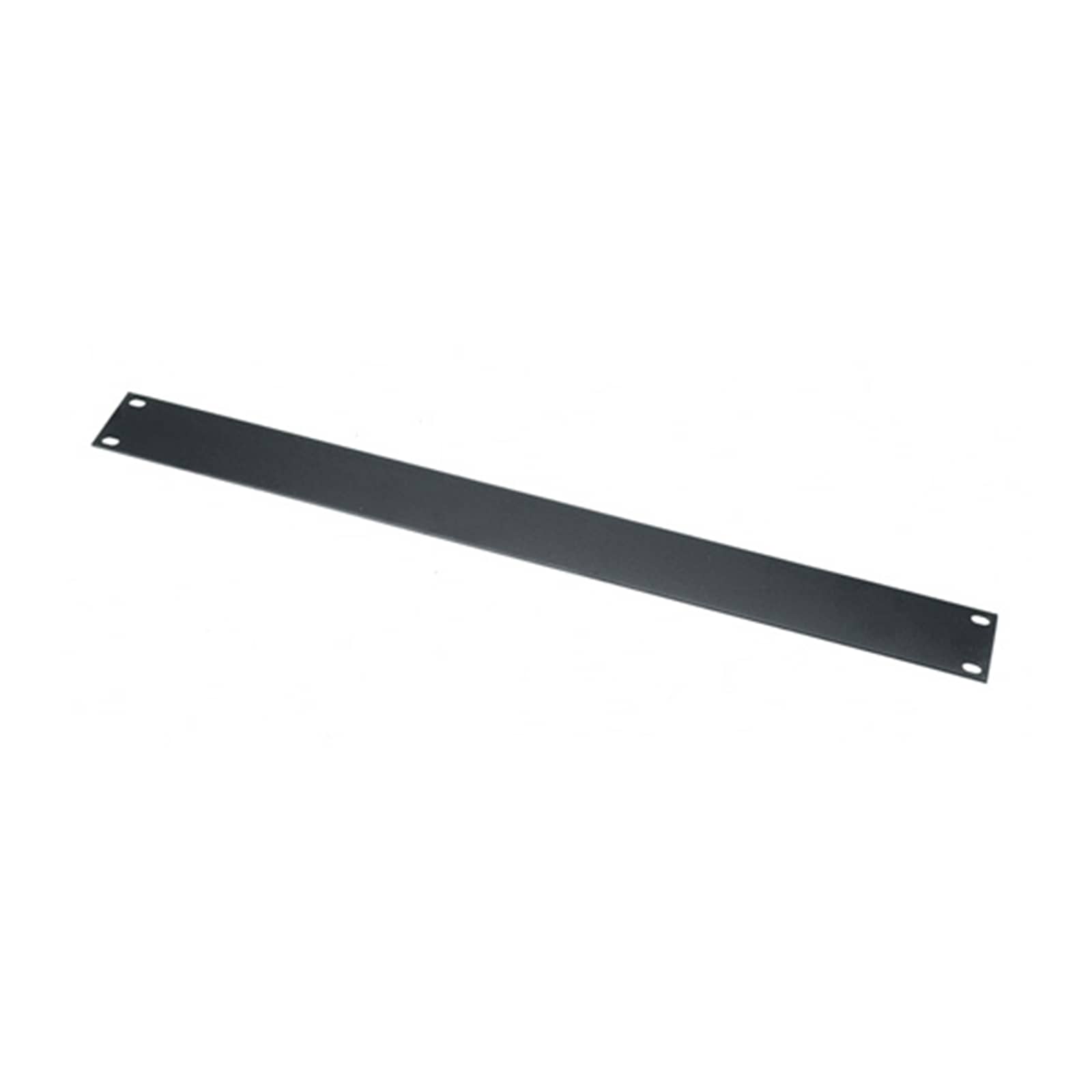

1 RU Flat Blank Rack Panel, Steel - 12 Piece Contractor Pack
FEB1-CP12$142.20
USC Universal Sequencing Controller 1 Space Sequencing Controller
USC-6R$1,044.90
Select Series UPS Backup Power Systems - UPS-SRBP-500
UPS-SRBP-500$351.00
MPR Module 15A, Controlled Stand-Alone
RLM-15-1CA$288.00
MPR Power Module 30A, L5-30R Twistlock
RLM30-L530-1$763.20
MPR Power Module 20A, L5-20R Twistlock
RLM30-L520-1$716.40
Questions about this part
Will the SRSR-4-22 fit in my equipment cabinet?
This 22 RU in-cabinet rack system has a width of 19.13 in (48.6 cm) and a depth of 19.14 in (48.6 cm) to accommodate standard equipment within millwork or enclosures.
What is the weight limit for this rotating rack?
The SRSR-4-22 has a total weight capacity of 250 lbs (113.4 kg), ensuring stable support for your mounted hardware.
How much clearance do I need for the rotating movement?
The system can rotate 90° in either direction from its base, allowing for service access in tight spaces like flush in-wall installations.
What is the difference between this and other SRSR models?
The SRSR-4-22 is the 22 RU variant within the SRSR series; other models in this series offer different rack unit counts for varying height requirements.
Which documents are available for submittals?
Installers can access CAD technical drawings, Revit models, and instruction sheets in the Resources tab for project submittals.
