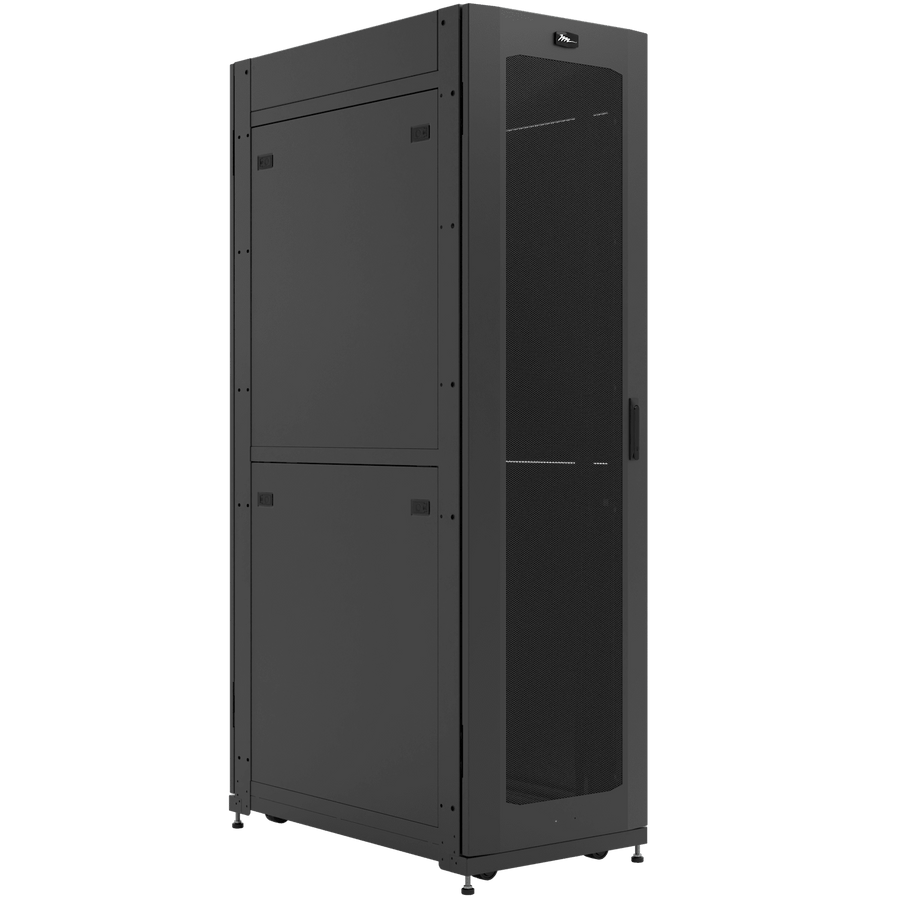

SNE Series Rack SNE24H-4542-A2

45 RU wide security network enclosure with 1,760 CFM active rear ventilation and seismic rating

The SNE24H-4542-A2 is a 45 RU SNE Series Wide Security Network Enclosure Kit designed for hybrid environments containing a mix of analog and digital equipment. This pre-configured steel enclosure provides 24" of total width and 42" of depth, offering a usable height of 78.75" (200 cm) and a usable depth of 38.48" (97.7 cm). To manage heat in high-density setups, the unit features active front-to-rear airflow via a split fan rear door capable of moving 1,760 CFM. This rear door contains eight 6” fans that are expandable for increased cooling requirements. The enclosure is built for specialized hardware needs, including two pairs of 10-32 tapped adjustable rackrails and two pairs of 4RU cage-nut adaptors for equipment requiring cagenuts. For physical security and stability, the kit includes split flush mount locking side panels, a 70% open front door, a solid top, and four leveling feet. This UL Listed and TAA compliant assembly is seismic rated with a seismic load capacity of 1050 lbs (476.3 kg) and a UL load capacity of 3000 lbs (1,360.8 kg). Note that this product is scheduled for discontinuation on December 1, 2026; the manufacturer recommends the WMRK-4542 as a replacement.
