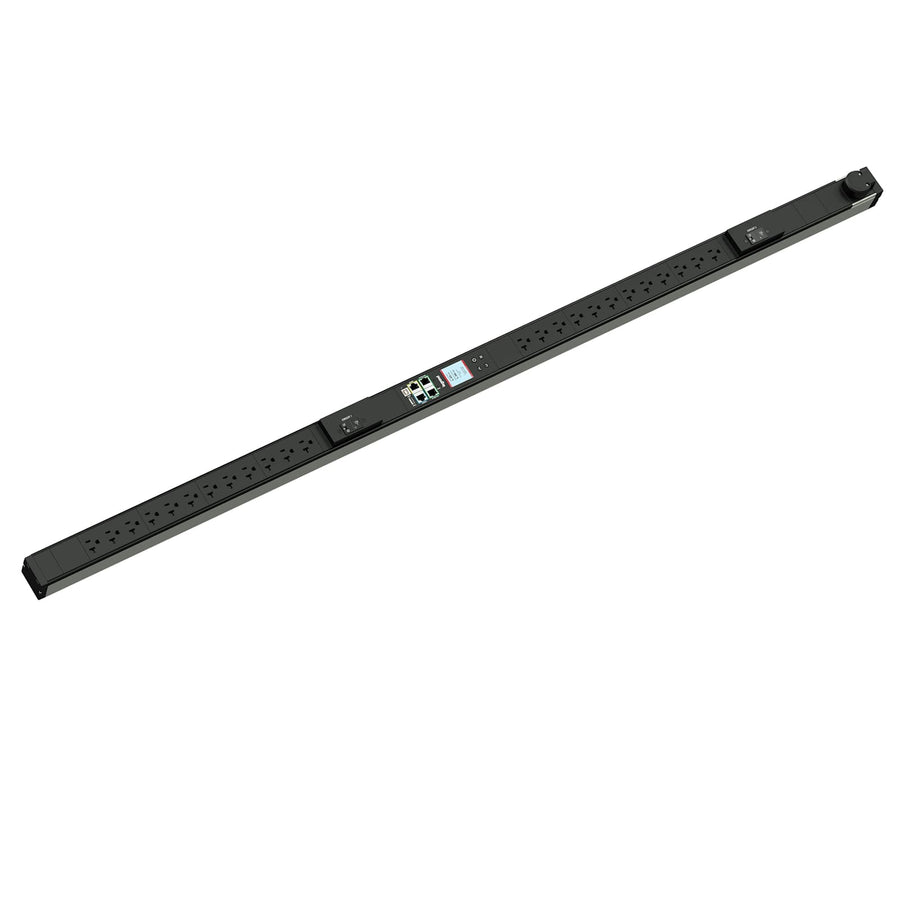

Legrand Vertical ZeroU Network Metered PDU, 24 Outlet
Vertical ZeroU Network Metered PDU with 24 NEMA 5-20R outlets, 30 Amp capacity, and real-time power monitoring via color LCD.
The Legrand LP-41300 is a vertical ZeroU Network Metered Power Distribution Unit designed to provide real-time line level power metering. This 24-outlet PDU allows system integrators to perform remote monitoring of load levels through a color LCD screen or via tablets, smartphones, and computers from nearly anywhere. It features 24 NEMA 5-20R 16A receptacles and is built to operate at 120 VAC with a 30 Amp input. The unit utilizes a L5-30P plug type and includes a 9.84 ft (3 m) corded cable for power delivery. For installation in standard enclosures, the LP-41300 employs a vertical button mount and includes a horizontal/vertical mounting bracket. This TAA compliant and UL Listed unit is also FCC certified. For enhanced environmental monitoring, compatible sensors like the RLNK-TEMP temperature and humidity sensor can be utilized.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Amps | 30 Amp |
| Cord Length | 9.84 ft (3 m) |
| Depth | 2 in (5.1 cm) |
| Height | 60.6 in (153.9 cm) |
| Shipping Weight | 11.44 lbs (5.2 kg) |
| Volts AC | 120 VAC |
| Width | 2 in (5.1 cm) |
| Cable Type | Corded |
All other specifications 8
| Finish | Black and Silver |
| Mounting Style | Vertical |
| Outlet Count | 24 |
| Plug Type | L5-30P |
| Receptacle Type | NEMA 5-20R |
| TAA Compliant | Yes |
| UPC | 662875015215 |
| Certifications | FCCTAAUL Listed |
Resources
You'll need these with it
Dry Contact Sensor Rlnk-Cont For Use With Premium+ PDU With RackLink™
RLNK-CONT$216.00
Premium+ PDU With RackLink™ Temperature And Humidity Sensor
RLNK-TEMP$126.00
42 to 45 RU Forward Universal Vertical Power Bracket
FWD-UVPB-42-45$118.80
42 to 45 RU SNE Universal Vertical Power Bracket
SNE-UVPB-4245-S$135.00
Questions about this part
What is the power capacity and input of the LP-41300?
This PDU provides 30 Amp service at 120 VAC via a L5-30P plug type and includes a 9.84 ft (3 m) cord.
Will this PDU work in my existing rack configuration?
The LP-41300 is a vertical ZeroU mounting style PDU that includes a horizontal/vertical mounting bracket for versatile installation.
What type of outlets does the LP-41300 have?
This model is equipped with 24 NEMA 5-20R 16A receptacles.
Can I monitor environmental conditions using this PDU?
Yes, the LP-41300 is compatible with the RLNK-TEMP Premium+ PDU Temperature and Humidity Sensor for expanded monitoring.
Which document should I use for a technical submittal?
The LP 41300 Vertical ZeroU Network Metered PDU A&E Specification Sheet is the appropriate document for technical submittals.
