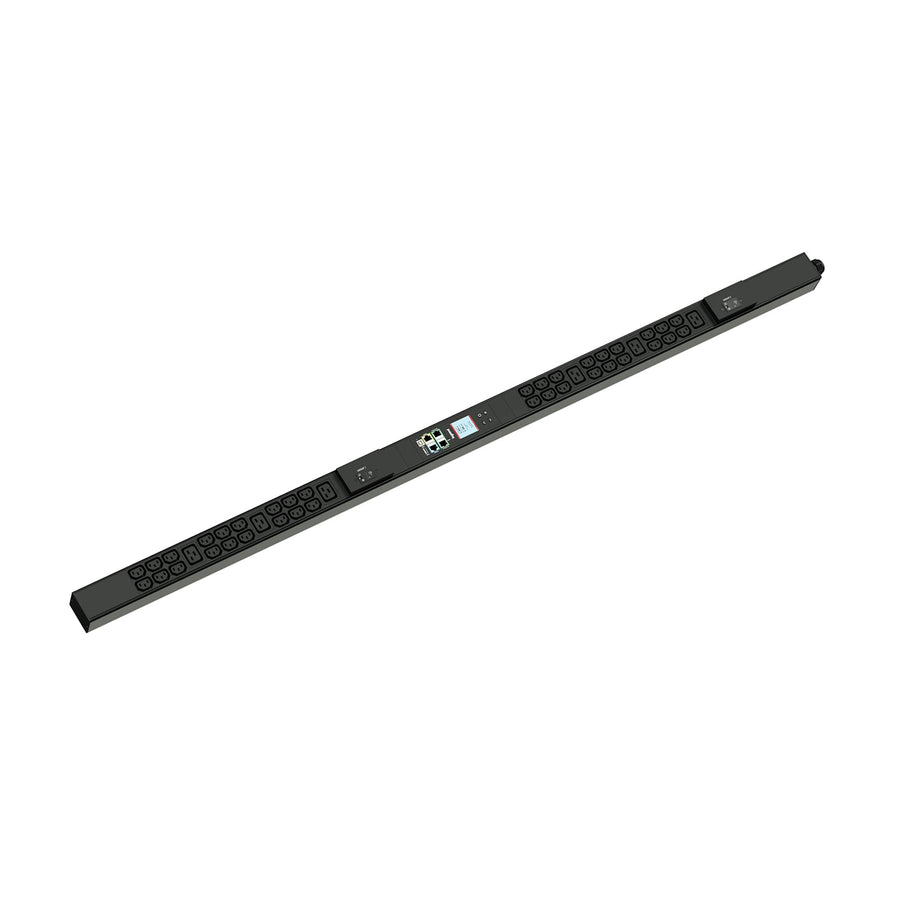

Legrand Vertical ZeroU Network Metered PDU, 42 Outlet
Vertical ZeroU Network Metered PDU with 42 outlets, 30 Amp L6-30P input, and real-time remote monitoring capabilities
The Legrand LP-42300 is a Vertical ZeroU Network Metered PDU designed for real-time line level power metering and remote load monitoring. This 30 Amp unit features a 9.84 ft (3 m) corded input with an L6-30P plug and operates at 208 VAC. It provides a high outlet density for high-density racks, offering a total of 42 receptacles: (36) non-locking IEC-C13 12A outlets and (6) non-locking IEC-C19 16A outlets. For installation, this PDU utilizes a vertical button mount style and includes a horizontal/vertical mounting bracket. The unit features a black and silver finish and is TAA compliant. Integrated color LCD screen and network connectivity allow users to monitor power usage and set custom notifications via tablets, smartphones, or computers from virtually anywhere. This unit is UL Listed and FCC compliant.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Amps | 30 Amp |
| Cord Length | 9.84 ft (3 m) |
| Depth | 2 in (5.1 cm) |
| Height | 60.6 in (153.9 cm) |
| Shipping Weight | 12.44 lbs (5.6 kg) |
| Volts AC | 208 VAC |
| Width | 2 in (5.1 cm) |
| Cable Type | Corded |
All other specifications 8
| Finish | Black and Silver |
| Mounting Style | Vertical |
| Outlet Count | 42 |
| Plug Type | L6-30P |
| Receptacle Type | IEC C13 and C19 |
| TAA Compliant | Yes |
| UPC | 662875015253 |
| Certifications | FCCTAAUL Listed |
Resources
You'll need these with it
Dry Contact Sensor Rlnk-Cont For Use With Premium+ PDU With RackLink™
RLNK-CONT$216.00
Premium+ PDU With RackLink™ Temperature And Humidity Sensor
RLNK-TEMP$126.00
42 to 45 RU Forward Universal Vertical Power Bracket
FWD-UVPB-42-45$118.80
42 to 45 RU SNE Universal Vertical Power Bracket
SNE-UVPB-4245-S$135.00
Questions about this part
Will the LP-42300 fit in my server rack?
The LP-42300 is a ZeroU vertical PDU, meaning it mounts in the side space of a rack, providing 42 outlets without consuming rack units.
What types of power outlets does this PDU have?
This model features 36 non-locking IEC-C13 12A receptacles and 6 non-locking IEC-C19 16A receptacles.
What is required for the electrical connection?
This unit requires a 208 VAC supply and uses an L6-30P plug type on a 9.84 ft (3 m) cord.
Can I monitor this PDU remotely?
Yes, the integrated network metering allows you to monitor load levels and receive custom notifications on smartphones, tablets, or computers.
Which mounting hardware is needed for installation?
The unit is designed for vertical button mounting and includes a horizontal/vertical mounting bracket.
