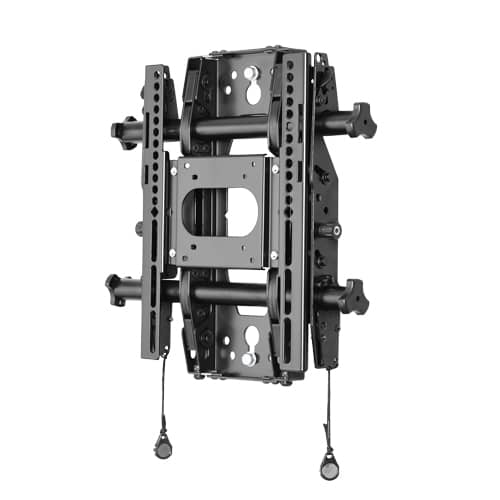

Small Tilt Wall Mount Single Stud
Single stud tilt wall mount for 24"-42" displays with Centris tilt and 75 lb capacity
The Chief STMS1U is a single stud wall mount from the Fusion® Wall Tilt series designed to solve installation challenges for small-format displays. This low-profile solution is engineered to sit tight against the wall, making it ideal for hiding behind narrow-bezel displays in the 24" to 42" range. The mount facilitates both landscape and portrait orientations to suit diverse installation environments like digital signage, hospitality, and corporate settings. Built with installer-centric features, it includes Centris tilt for precise positioning and ClickConnect Latching for secure attachment. Users can achieve superior aesthetic results through Micro-Adjustable height settings, providing a 1 in (25.4 mm) manual adjustment range. For specialized setups, it is compatible with various accessories, including the PAC525 or PAC526 In-Wall Storage Boxes for concealed cabling. This UL Listed mount supports a weight capacity of 75 lbs (34 kg) and accommodates VESA patterns from 75 x 75mm up to 300 x 300mm. The STMS1U offers a 2 in (5.1 cm) minimum depth, ensuring a clean, professional appearance in any professional AV installation.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 2 in (5.1 cm) |
| Height | 14.14 in (35.9 cm) |
| Manual Height Adjustment | 1 in (25.4 mm) |
| Maximum Screen Thickness | 6 in (152.4 mm) |
| Minimum Depth | 2 in (5.1 cm) |
| Overall Dimensions | 14.14" x 14.25" x 2" (359 x 362 x51mm) |
| Shipping Weight | 15.06 lbs (6.8 kg) |
| Typical Screen Size | 24"-42" (610mm - 1067 mm) |
All other specifications 13
| Weight Capacity | 75 lbs (34 kg) |
| Width | 14.25 in (36.2 cm) |
| Adjustability | Height AdjustableTilt |
| Application | Wall |
| Color | Black |
| Number of Displays | 1 |
| Orientation | Landscape and Portrait |
| Solution Type | Universal |
| TAA Compliant | No |
| Tilt | +2° / -12° |
| UPC | 841872167749 |
| VESA Mounting Pattern | 75 x 75mm - 300 x 300mm |
| Certifications | UL Listed |
