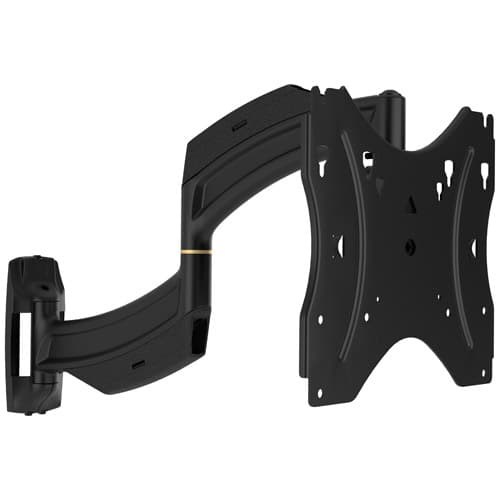

Small Thinstall™ Single Swing Arm Wall Display Mount - 18 Inch Extension
Full-motion single swing arm mount for 10–40" displays with 18" maximum extension and tilt adjustment
The Chief TS118SU is a lightweight, low-profile full-motion wall mount designed for small-format displays. This Thinstall™ Swing Arm Display Mount is intended for displays ranging from 10" to 40" (254mm - 1016mm) and supports a weight capacity of up to 35 lbs (15.9 kg). It features an 18 in (45.7 cm) maximum extension, allowing users to pull the screen away from the wall for better visibility or easier access to rear-facing connections. The mount provides versatile adjustability, including swivel, tilt, and extension, with a tilt range of +0° to -12°. This unit supports both landscape and portrait orientations and includes a post-installation leveling roll to ensure a perfectly aligned install. The overall dimensions of the assembly are 11.57" x 39.37" x 1.5" (294 x 1000 x 38 mm), and the mount is UL Listed for safety. For installation on metal studs, the TASMSB accessory is compatible.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 1.5 in (3.8 cm) |
| Height | 11.57 in (29.4 cm) |
| Maximum Extension | 18 in (45.7 cm) |
| Minimum Depth | 1.5 in (3.8 cm) |
| Overall Dimensions | 11.57" x 39.37" x 1.5" (294 x 1000 x 38 mm) |
| Shipping Dimensions | 20" x 15" x 3"(508 x 381 x 76.2 mm) |
| Shipping Weight | 7.2 lbs (3.3 kg) |
| Typical Screen Size | 10" - 40" (254mm - 1016mm) |
All other specifications 14
| Wall Stud Compatibility | Single Stud |
| Weight Capacity | 35 lbs (15.9 kg) |
| Width | 39.37 in (100 cm) |
| Adjustability | Extension, Swivel, Tilt |
| Application | Wall |
| Color | Black |
| Orientation | LandscapePortrait |
| Post-Installation Leveling Roll | Yes |
| Solution Type | Universal |
| TAA Compliant | No |
| Tilt | +0° to -12° |
| UPC | 841872153551 |
| VESA Mounting Pattern | 100 x 100mm200 x 100mm200 x 200mm75 x 75mm |
| Certifications | UL Listed |
Resources
You'll need these with it
Proximity™ Component Storage Panel, Interface
CSMP9X12$52.00
PAC526, Large In-Wall Storage Box
PAC526$116.80

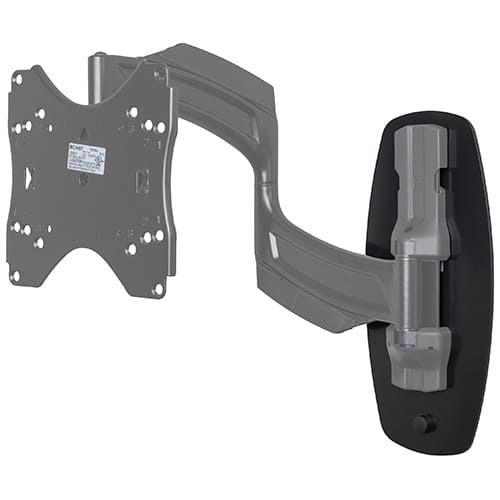

Small Thinstall™ Metal Stud Accessory-TASMSB
TASMSB$104.00
Bracket for Outdoor Samsung 46 Inch Display
FHBO5169$956.00
Brackets for Outdoor 55 Inch Displays
FHBO5168$956.00
Fusion® and Thinstall™ Hardware Kits
FHB5104$273.60
M-Series Universal Interface Bracket-MSBUB
MSBUB$153.60
M-Series VESA Interface Bracket-MSBVB
MSBVB$125.60
Universal Flat Panel Mount Hardware kit
FHB5147$16.00
PAC525, In-Wall Storage Box
PAC525$79.20
WSPC220CBK Desktop Power Center in Black
WSPC220CBK$119.24
CMK70 Flat Screen TV Cord and Cable Power Kit
CMK70$89.53
Verified fitment
Questions about this part
Will this Chief TS118SU mount fit my display?
This mount is verified against 3,620 display models from 104 manufacturers. Examples include Sony 43BZ35P, Samsung 2494SW, TCL 32S327, LG 15LA6R, and Panasonic BTL2150.
What VESA mounting patterns are compatible with the TS118SU?
The mount supports multiple VESA patterns, specifically 75 x 75mm, 100 x 100mm, 200 x 100mm, and 200 x 200mm.
What do I need to buy to use this with a metal stud wall?
To install this mount on metal studs, you will need the TASMSB Small Thinstall™ Metal Stud Accessory.
How much can the display tilt on this mount?
The TS118SU provides a tilt range of +0° to -12° to help reduce glare and optimize viewing angles.
What is the maximum extension for the TS118SU swing arm?
This mount offers a maximum extension of 18 in (45.7 cm) from the wall.
