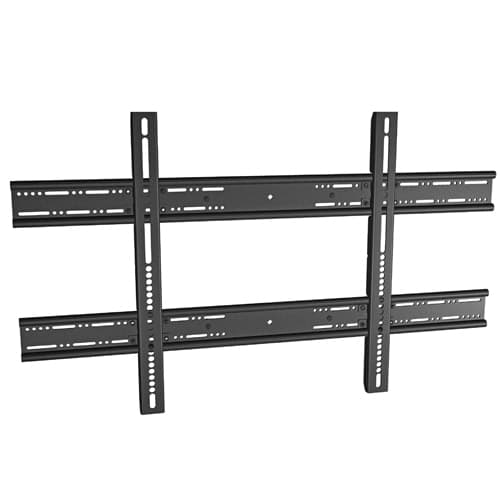

M-Series Universal Interface Bracket-MSBUB
Universal interface bracket for Chief M-Series Q-Latch mounts and select swing arm mounts
The MSBUB is a custom interface bracket designed to provide compatibility between displays and Chief M-Series Q-Latch mounting systems. This black interface component allows for a versatile installation, ensuring that a wide variety of displays can be integrated into your existing mounting hardware. It is specifically designed for use with all Chief M-Series Q-Latch mounts. Beyond the Q-Latch line, this bracket is also compatible with select swing arm mounts, including the JWD210, JWS210, and JWP210 models. The bracket supports a wide range of VESA mounting patterns, specifically from 100 x 100mm up to 709 x 431mm. When properly installed, this interface accommodates a weight capacity of 11 lbs (5 kg). For professional submittals, the MSBU Installation Manual is available to assist with the integration process.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Dimensions | 31.5" x 3.13" x 3" (800.1 x 79.6 x 76.2 mm) |
| Shipping Weight | 8.81 lbs (4 kg) |
| Weight Capacity | 11 lbs (5 kg) |
| Accessory Type | Interface Brackets |
| Color | Black |
| Solution Type | Universal |
| TAA Compliant | No |
| UPC | 841872099637 |
| VESA Mounting Pattern | 100 x 100mm - 709 x 431mm |
| Certifications | UL Listed |
Resources
Verified fitment
Questions about this part
Will the MSBUB fit my display?
The MSBUB is verified against 2,600 display models from 186 manufacturers, including Samsung 400DX, Sony FW43XD8001, and LG 32LG30R.
What M-Series mounts is this compatible with?
This bracket is compatible with all Chief M-Series Q-Latch mounts and select swing arm models like the JWS210.
What is the maximum weight this bracket can hold?
The MSBUB has a maximum weight capacity of 11 lbs (5 kg).
What VESA patterns are supported by the MSBUB?
This interface bracket supports VESA mounting patterns ranging from 100 x 100mm to 709 x 431mm.
Which document do I need for a submittal?
You can refer to the MSBU Installation Manual for installation details or the MSBU Technical Drawing for dimensions.
