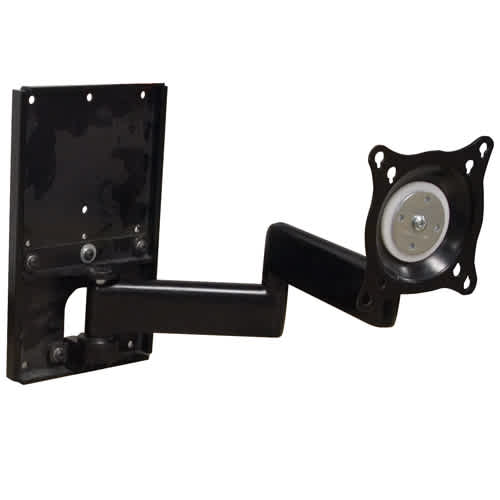

Small Flat Panel Swing Arm Wall Mount (Metal Studs) - 16 Inch
Swing arm wall mount for 10-32" displays, 40 lbs capacity, fits single metal studs with 15.85" extension
The Chief FWDSK110B is a small flat panel swing arm wall mount designed specifically for single steel stud installations. This mount is engineered to support displays in the 10-32" (254mm - 813mm) range with a maximum weight capacity of 40 lbs (18.1 kg). It features Centris Technology, which allows for smooth, fingertip tilt adjustments of +15° / -15° to achieve the ideal viewing angle. To provide maximum flexibility in tight spaces, the arm offers a maximum extension of 15.85" (0.4 m) from the wall. The unit is VESA® 75 x 75 mm and 100 x 100 mm compliant, though non-VESA displays may require separate interface brackets like the FSB1U. This TAA compliant solution allows for both landscape and portrait orientations and includes a post-installation leveling roll for fine-tuned alignment. For users requiring more movement, the KMA220B and KMA320B are compatible accessories.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 2.9 in (7.4 cm) |
| Height | 10.8 in (27.4 cm) |
| Maximum Extension | 15.85 in (0.4 m) |
| Minimum Depth | 2.85 in (7.2 cm) |
| Overall Dimensions | 10.8" x 10.3" x 2.9" (274 x 262 x 72mm) |
| Shipping Weight | 8.75 lbs (4 kg) |
| Typical Screen Size | 10 - 32" (254mm - 813mm) |
| Wall Stud Compatibility | Single Metal Stud |
All other specifications 12
| Weight Capacity | 40 lbs (18.1 kg) |
| Width | 10.3 in (26.2 cm) |
| Adjustability | ExtensionSwivelTilt |
| Application | Wall |
| Color | Black |
| Orientation | LandscapePortrait |
| Post-Installation Leveling Roll | Yes |
| Solution Type | Universal |
| TAA Compliant | Yes |
| Tilt | +15° / -15° |
| UPC | 841872103808 |
| Certifications | TAA |
Resources
You'll need these with it
FSB1U, Small Flat Panel Universal Interface Bracket
FSB1U$56.80
Proximity™ Component Storage Panel, Interface
CSMP9X12$52.00
Custom Interface Bracket for Cisco EX90 and K2-series Mounts
FSB4090B$312.80
Small Flat Panel Interface Brackets -
FSB4243B$61.60
Small Flat Panel Interface Brackets - FSB4245B
FSB4245B$61.60
KMA220B
KMA220B$194.40
50x50mm VESA Interface Bracket
FSB4073$47.20
KMA320B
KMA320B$242.40
Freestyle Flat Panel Rotation Adapter
FRA$341.60
Small Flat Panel Interface Buttons and Hardware for FSR and FTR
FSB75100B$10.40
Small Flat Panel Interface Brackets - FSB4243B
FSB4243B$61.60
Interface Bracket
FSB4442B$104.00
Verified fitment
Questions about this part
Will the FWDSK110B fit my specific display?
This mount is verified against 3,742 display models from 186 manufacturers, including Samsung 150S, LG 15LA60, Philips 14L45215, and HP 2201125.
What is the required wall mounting structure?
The FWDSK110B is designed specifically for installation on a single metal stud.
Do I need to buy additional hardware for non-VESA screens?
While it is VESA 75x75mm and 100x100mm compliant, non-VESA displays may require an interface bracket such as the FSB1U or FSB4041.
How much extension can I get from the wall?
The arm provides a maximum extension of 15.85" (0.4 m) to help you reach the ideal viewing angle.
How do I adjust the tilt on this mount?
The mount features Centris Technology for smooth tilt adjustment between +15° and -15°, with independently adjustable tension at the pivot points.
