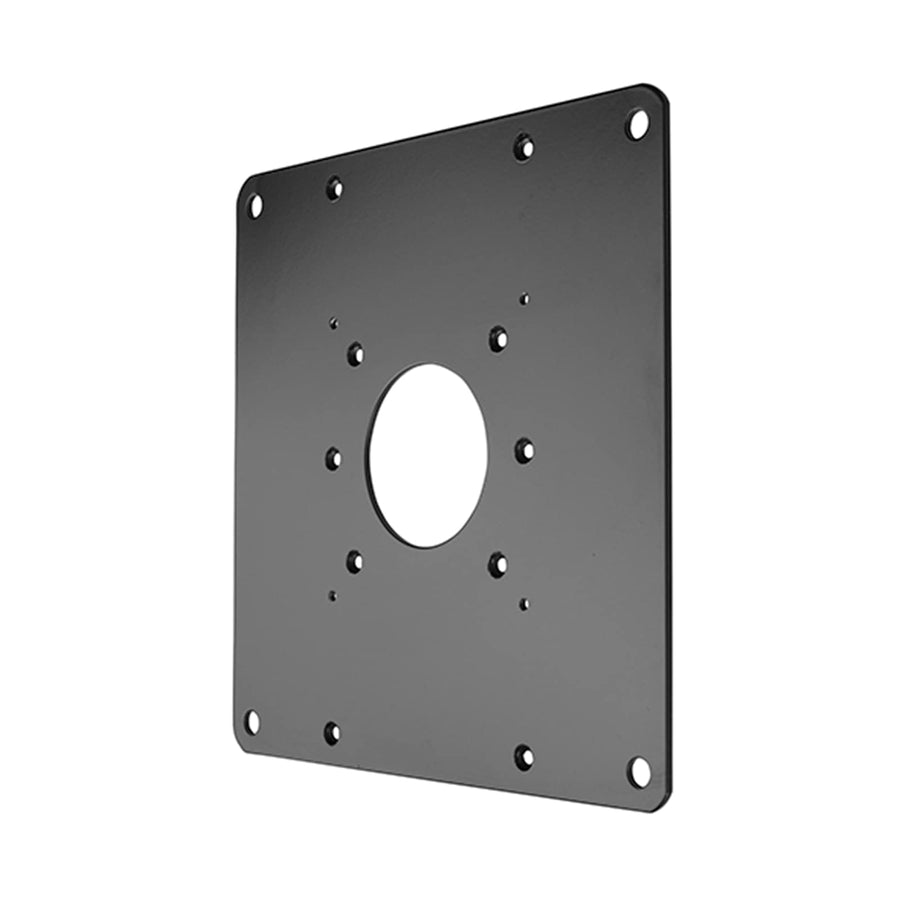

FSB1U, Small Flat Panel Universal Interface Bracket
Universal interface bracket for small displays, supporting VESA patterns 75x75mm, 100x100mm, 200x100mm, and 200x200mm
The Chief FSB1U is a small flat panel universal interface bracket designed to expand the compatibility of your mounting solution. This accessory allows displays with specific VESA mounting patterns—75x75mm, 100x100mm, 200x100mm, and 200x200mm—to be installed using any Chief small flat panel mounting solution. It is specifically engineered to work with Chief Q-Latch mounts, providing a seamless connection for FSR and FTR series products. This bracket is the necessary component for installers needing to mount displays that do not natively match the mount's pattern. With a weight capacity of 45 lbs (45.4 kg), it provides a reliable interface for small-format professional monitors and displays. The FSB1U is a black-finished component that ensures the mounting hardware remains unobtrusive behind the display.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Dimensions | 9" x 7.25" x 2.5" (228.6 x 184.2 x 63.5 mm) |
| Shipping Weight | 2.88 lbs (1.3 kg) |
| Weight Capacity | 45 lbs (45.4 kg) |
| Accessory Type | Interface Brackets |
| Color | Black |
| Solution Type | Universal |
| TAA Compliant | No |
| UPC | 841872169200 |
| VESA Mounting Pattern | 100 x 100mm200 x 100mm200 x 200mm75 x 75mm |
Resources
Verified fitment
Questions about this part
Will the FSB1U work with my Chief FSR or FTR mount?
Yes, this interface bracket is compatible with Chief Q-Latch mounts, including both FSR and FTR products.
Which VESA patterns does this interface bracket support?
The FSB1U supports 75x75mm, 100x100mm, 200x100mm, and 200x200mm VESA mounting patterns.
What displays is this bracket verified to fit?
It is verified against models such as the SAMSUNG DM32E and LiteMax SSF3805-I or SSH3805-I V3.
What is the maximum weight capacity for the FSB1U?
The FSB1U has a maximum weight capacity of 45 lbs (45.4 kg).
Which documents are available for submittals?
Technical drawings (PDF), installation manuals (PDF), and CAD drawings (DWG) are available for this product.
