KMA220B
Dual monitor accessory for side-by-side viewing on Chief K-series swing arm wall or desk mounts

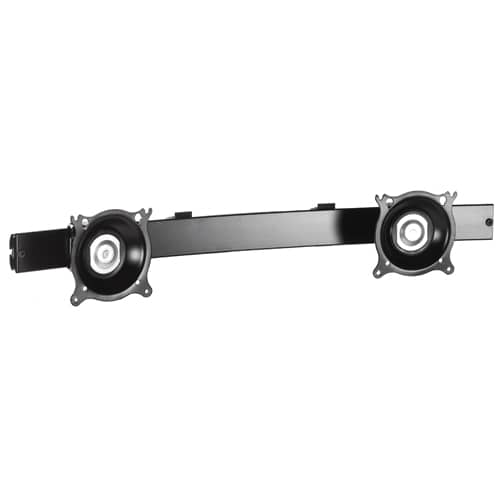

The Chief KMA220B is a dual horizontal monitor accessory designed for side-by-side display configurations. It is engineered to attach directly to Chief K-series swing arm wall mounts or desk mounts, allowing users to view two flat panel screens simultaneously. This solution provides independent screen adjustments for each display, and the integrated Centris TurnTite Dials are used to lock those adjustments securely in place once the desired position is reached. This accessory is compatible with monitors that utilize VESA 75 x 75 mm or 100 x 100 mm compliant mounting patterns. When using this accessory, the weight capacity is 11 lbs (5 kg) per monitor, and the total weight capacity of the primary mount is reduced by 7 lbs due to the addition of the dual configuration.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Dimensions | 44.75" x 7.75" x 7" (113.7 x 19.7 x 17.8 cm) |
| Shipping Weight | 10.22 lbs (4.6 kg) |
| Weight Capacity | 11 lbs (5 kg) |
| Application | Desk-Tabletop |
| Color | Black |
| Solution Type | Universal |
| TAA Compliant | No |
| UPC | 841872093109 |
Resources
Questions about this part
Will the KMA220B fit my monitors?
The KMA220B is compatible with screens that feature VESA 75 x 75 mm or 100 x 100 mm mounting patterns.
What mount do I need to use the KMA220B?
This accessory is designed to attach to Chief K-series swing arm wall or desk mounts.
How much weight can each monitor weigh with the KMA220B?
Each monitor has a weight capacity of 11 lbs (5 kg), though note that adding this accessory reduces the primary mount's overall capacity by 7 lbs.
Can I adjust the screens independently?
Yes, it provides independent screen adjustments that can be secured in place using the Centris TurnTite Dials.
Which document do I need for submittals?
The KMA220 Technical Drawing (PDF) is available for submittal purposes.
