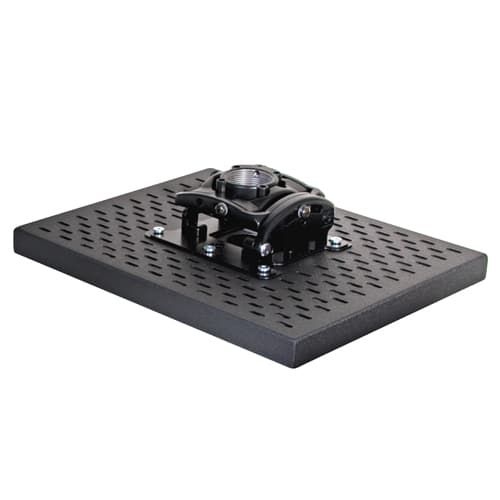

RPA Elite Projector Security Mount (Lock A) - RPMA1
Ceiling-mounted security projector mount with Centris technology, micro-adjustable positioning, and a 50 lbs capacity
The RPMA1 is a ceiling-mounted security projector mount designed to maximize equipment safety in high-risk environments through a universal mounting interface with secured mounting points. As part of the RPA Elite series, this mount utilizes Centris Technology to allow for effortless fingertip positioning, automatically adjusting to support various projector weights. The integrated Microzone Adjustments enable fast and precise projector registration, which is particularly beneficial during flush mount installations. To simplify maintenance, the mount features quick connect/disconnect capabilities for easy access to lamps and filters on most projectors, while maintaining the user's preset adjustments and registration even after disconnecting. This model utilizes Locking Type A for complete security. For installers managing cable runs, the design incorporates cable management without the need for additional accessories. This TAA compliant solution is verified for use with a wide range of devices, including models from Epson, Optoma, Panasonic, NEC, Hitachi, and BenQ.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Dimensions | 17.5" x 13" x 5.25"(444.5 x 330.2 x 133.4 mm) |
| Shipping Weight | 12.75 lbs (5.8 kg) |
| Weight Capacity | 50 lbs (22.7 kg) |
| Adjustability | Independent Roll-Pitch-YawMicro-Adjustable |
| Application | Ceiling |
| Color | Black |
| Locking Type | A |
| Solution Type | Universal |
| Special Features | Security |
| TAA Compliant | Yes |
| UPC | 841872101910 |
| Certifications | TAA |
Resources
You'll need these with it
Large Venue Vibration Isolating Coupler, Black
CMA348$588.00
Wire Suspension Locks (10pack)
CMA290$128.80
Single Electric Outlet Coupler
CMA502$80.80
C-Clamp
CMA362$135.20
I-Beam Clamp
CMA360$318.40
1.5 Inch to 1 Inch NPT Adapter
CMA151$29.60
Heavy Duty Swivel Adapter
CMA351$164.00
Internal Joist Ceiling Kit
CMA165$146.40
Truss Clamp
CMS380$138.40
Dual Electric Outlet Coupler
CMA504$106.40
2' x 2' Above Suspended Ceiling Storage Box and column drop with 2-Gang Filter & Surge
CMS492CP2$945.60
Extension Column and Ceiling Mount Kit
CMS443$164.80
Verified fitment
Questions about this part
Will the Chief RPMA1 fit my projector?
The RPMA1 is verified against 7,129 display models from 110 manufacturers, including Epson BrightLink 1485Fi, Optoma 4K500, and Panasonic PT-AE100U.
How do I adjust the projector position once it is mounted?
The mount features Centris Technology for effortless fingertip positioning and Microzone Adjustments for precise, micro-adjustable registration.
Does this mount support access to the projector lamp?
Yes, it features quick connect/disconnect functionality for convenient access to lamps and filters on most projectors while maintaining registration.
What is the difference between this and the other RPA Elite locking models?
The RPMA1 is the specific SKU utilizing Locking Type A; other security options in the series include the RSA620, RPMB1, and RPMC1.
What do I need for a suspended ceiling installation?
Depending on your specific setup, you may need accessories like the CMS445 Speed-Connect Suspended Ceiling Tile Replacement Kit or the CMS445P2 with power outlet housing.
