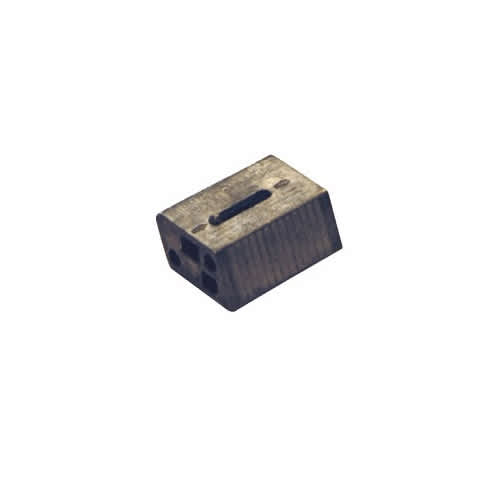

Wire Suspension Locks (10pack)
Security wire suspension locks for equipment hanging, supporting up to 640 lbs depending on wire diameter

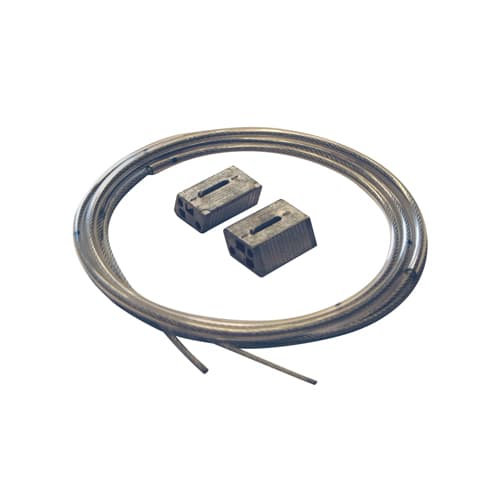

The Chief CMA290 is a 10-pack of wire suspension locks designed to provide a flexible hanging solution for various types of equipment. These security accessories are essential for securing equipment in environments where overhead suspension is used. The weight capacity of these locks depends on the specific wire being used: they support 250 lbs when paired with 0.13" wire and up to 640 lbs when used with 0.19" wire. These silver-finish locks are small in profile, with overall dimensions of 1.0" x 0.5" x 0.5" (25 x 13 x 13 mm). For installers looking to complete a secure installation, this 10-pack can be used alongside other Chief security products such as the PMSC Security Cable Kit, the LC1 Cable Lock Kit, the HC1 Heavy-Duty Cable System, or the PL4 Projector Cable Lock.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 0.5 in (1.3 cm) |
| Height | 1 in (2.5 cm) |
| Overall Dimensions | 1.0" x 0.5" x 0.5" (25 x 13 x 13 mm) |
| Shipping Weight | 3.3 lbs (1.5 kg) |
| Weight Capacity | 0.13" wire: 250 lbs, 0.19" wire: 640 lbs |
| Width | 0.5 in (1.3 cm) |
| Accessory Type | Security |
| Color | Silver |
| TAA Compliant | No |
| UPC | 841872104430 |
Resources
You'll need these with it
Questions about this part
How much weight can the CMA290 support?
The weight capacity depends on your wire size: it supports 250 lbs with 0.13" wire and 640 lbs with 0.19" wire.
What other security kits are compatible with this SKU?
These locks work with the PMSC Security Cable Kit, LC1 Cable Lock Kit, HC1 Heavy-Duty Cable System, and the PL4 Projector Cable Lock.
How many locks are included in one order of CMA290?
Each order of the CMA290 contains a 10-pack of wire suspension locks.
What are the physical dimensions of the locks?
Each individual lock has overall dimensions of 1.0" x 0.5" x 0.5" (25 x 13 x 13 mm).
Where can I find the installation instructions for the CMA290?
You can refer to the CMA290 Installation Manual (PDF) for specific mounting and installation guidance.
