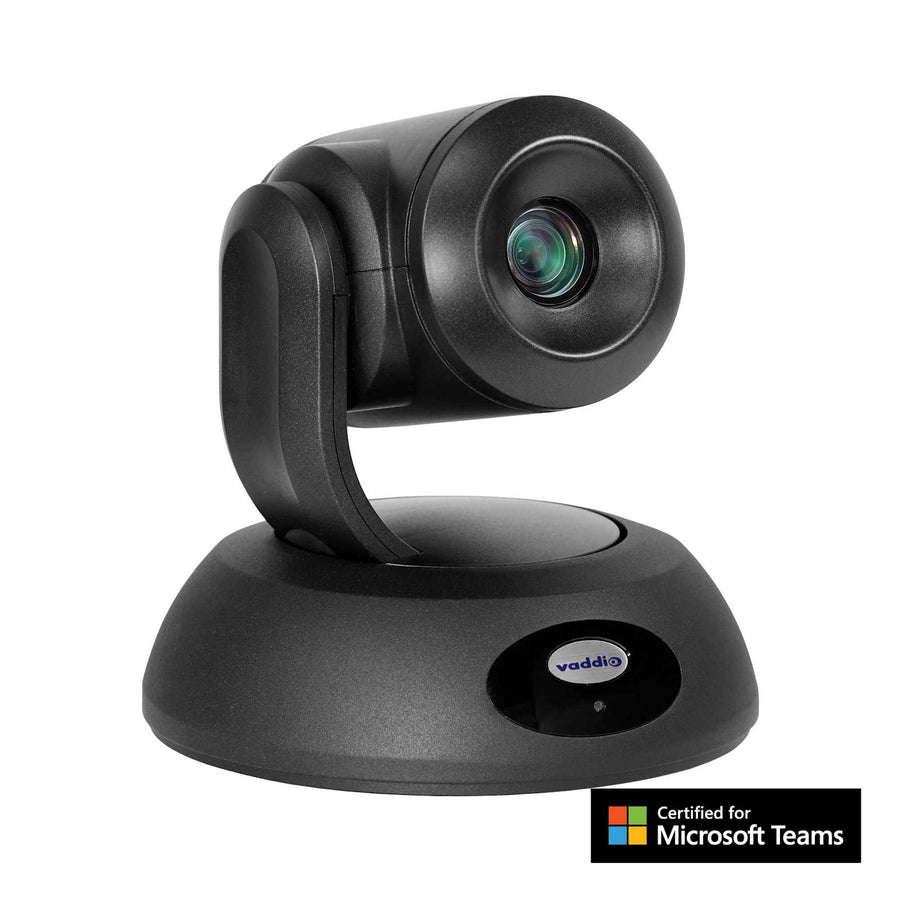

RoboSHOT 30E-M HD PTZ Camera
High-definition PTZ camera with 30x total zoom and 1080p/60 video quality, optimized for medium and large Microsoft Teams Rooms
The Vaddio RoboSHOT 30E-M HD PTZ Camera is a high-performance imaging solution designed specifically for medium and large Microsoft Teams Rooms. This camera is Certified for Microsoft Teams, providing a reliable and high-quality conferencing experience. It features a 1/2.5-type Exmor R CMOS sensor that delivers sharp 1080p/60 video even in low-light environments, such as rooms with a minimum illumination of 1 Lux (F1.6). The optical system provides a 20x optical zoom, which works in tandem with 10x IntelliZoom™ Image Processing to provide a total 30x zoom without losing resolution. This digital zoom technology compares pixel patterns to maintain image detail across large spaces. For deployment, the camera supports control via an IR remote, a touch screen, or a built-in web-based user interface for remote management. It is TAA compliant and features silent BLDC direct drive motors for smooth pan (±150°) and tilt (+90° to -30°) movements. The camera is available in Black and can be managed remotely through the Microsoft Teams admin center.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 6.75 in (17.1 cm) |
| Height | 6.94 in (17.6 cm) |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Product Weight | 4.85 lbs (2.2 kg) |
| Shipping Dimensions | 14" x 14" x 18" (355.6 x 355.6 x 457.2 mm) |
| Shipping Weight | 13 lbs (5.9 kg) |
| Width | 7.05 in (17.9 cm) |
| Browser-based User Interface for Remote Control | Built-in |
All other specifications 36
| Camera Type | PTZ |
| Color | Black |
| Compatible With | Vaddio |
| Control Method | IR RemoteTouch ScreenWeb UI |
| Estimated Room Size | Large RoomMedium Room |
| Field of View | 70.2° Wide End to 3.1° Tele End |
| Field of View Wide | Greater than 70 |
| Focus System | AutoManual |
| Gain | AutoManual |
| Image Sensor Type | 1/2.5-type Exmor R CMOS sensor |
| Input Ports | NetworkUSB 3.0 |
| Invertible | Yes |
| Manufacturer | Vaddio |
| Max Resolution | 1080p 60 |
| Minimum Illumination | 1 Lux (F1.6) |
| OneLINK Compatibility | No |
| Output Ports | NetworkUSB 3.0 Type B |
| Pan and Tilt Range | Pan: ±150°Tilt: +90° to -30° |
| Pan and Tilt Speed | 0.35°/sec - 120°/sec |
| Pixels | 8.51 Megapixel |
| Power Cord | US Cord |
| Power Supply | PoE+ Midspan Power Injector |
| Power Type | PoE+ |
| Preset Positions | 16 Custom Home Position |
| PTZ Motors | Silent BLDC Direct Drive Motors |
| Quick-Connect Compatibility | No |
| Signal Type | USB 2.0USB 3.0 |
| Solution Type | Camera Only |
| Special Features | Vaddio Special Offer |
| TAA Compliant | Yes |
| Tri-Sync Motion | Yes |
| UPC | 840077508135 |
| White Balance | AutoManualOne Push |
| Zoom | 30x zoom, 20x optical zoom + 10x IntelliZoom |
| Certifications | CECertified for Microsoft TeamsFCCRoHSTAAUL Listed |
| Warranty | 3 years |
Resources
You'll need these with it
Vaddio Device Controller
999-42300-000$855.00
USB 3.2 Gen 2 Type B to Type A Active Optical Cable Plenum from Vaddio
440-1015-008$252.90
RoboSHOT 12E USB HD PTZ Camera
999-99200-000$3,150.00
Suspended Ceiling Mount for Vaddio Cameras
535-2000-206$141.30
IN-Wall Enclosure for RoboSHOT PTZ Cameras
999-2225-118$351.90
PoE+ Midspan Power Injector
451-0400-055$187.20
DomeVIEW HD Indoor Flush Dome Enclosure for RoboSHOT and HD-Series PTZ Cameras
998-9000-200$1,002.60
DomeVIEW HD Indoor Pendant Dome Enclosure for RoboSHOT and HD-Series PTZ Cameras
998-9100-200$1,002.60
DomeVIEW HD Outdoor Pendant Dome Enclosure for RoboSHOT and HD-Series PTZ Cameras
998-9200-200$1,205.10
Offset Drop-Down Mount for RoboSHOT and HD-Series PTZ Cameras
535-2000-296$443.70
Questions about this part
Will the RoboSHOT 30E-M fit my Microsoft Teams Room setup?
Yes, this camera is Certified for Microsoft Teams and is optimized for use in medium and large Microsoft Teams Rooms.
What is required to power the RoboSHOT 30E-M?
The camera is powered via PoE+ (Power over Ethernet) and requires a PoE+ Midspan Power Injector for operation.
How much zoom can I get with this PTZ camera?
The camera offers a 20x optical zoom, which combined with 10x IntelliZoom™ technology, provides a 30x total zoom range.
How is the camera controlled once it is installed?
You can control the camera using an IR remote, a touch screen, or via the built-in web UI through your network.
What is the difference between this and the RoboSHOT 12E?
The RoboSHOT 30E-M provides a much higher 30x total zoom and is designed for larger rooms compared to the RoboSHOT 12E.
