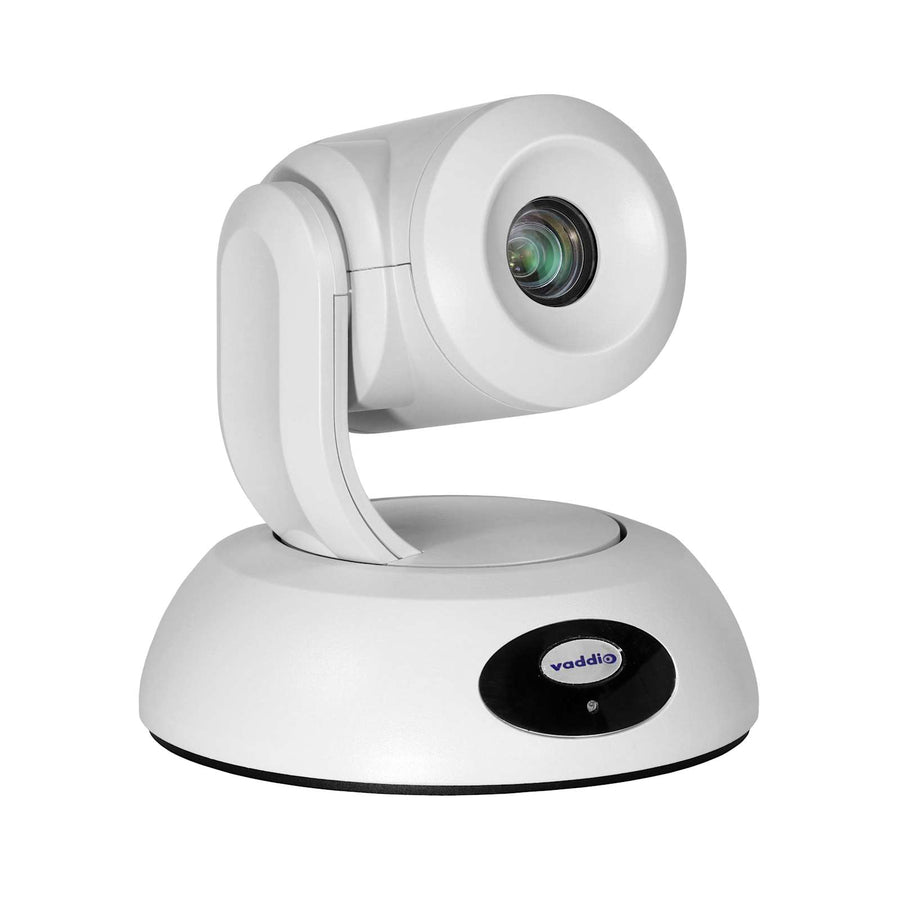

RoboSHOT 30E AVBMP
White PTZ camera with 20x optical zoom, 1/2.5-type Exmor R CMOS sensor, and Tri-Sync Motion technology for large and medium rooms
The Vaddio RoboSHOT 30E AVBMP is a professional-grade PTZ camera designed for high-definition video in medium and large rooms, such as lecture halls, conference centers, and houses of worship. It features an 1/2.5-type Exmor R CMOS sensor that provides superior light-gathering capabilities, improved contrast, and sharp 1080p/60 video even in dim lighting. The camera utilizes IntelliZoom™ image processing to provide an additional 10x digital zoom, allowing users to get closer to subjects without losing image resolution. Integrated Tri-Synchronous Motion technology ensures ultra-smooth, natural camera movement by coordinating all three axes simultaneously. For remote management, the built-in web-based user interface allows IT professionals to control the camera from anywhere on the IP network. This white variant is TAA compliant and supports multiple control methods including RS232, Telnet, IR remote, and joystick. It includes a thin profile wall mount and an IR remote commander.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 6.75 in (17.1 cm) |
| Height | 6.94 in (17.6 cm) |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Product Weight | 4.85 lbs (2.2 kg) |
| Shipping Dimensions | 14" x 14" x 18" (355.6 x 355.6 x 457.2 mm) |
| Shipping Weight | 13 lbs (5.9 kg) |
| Width | 7.05 in (17.9 cm) |
| 3rd Party Control | RS232Telnet |
All other specifications 34
| Browser-based User Interface for Remote Control | Built-in |
| Camera Type | PTZ |
| Color | White |
| Compatible With | Vaddio |
| Control Method | IR RemoteJoystickRS232TelnetTriggerWeb UI |
| Estimated Room Size | Large RoomMedium Room |
| Field of View | 70.2° Wide End to 3.1° Tele End |
| Field of View Wide | Greater than 70 |
| Focus System | AutoManual |
| Gain | AutoManual |
| Image Sensor Type | 1/2.5-type Exmor R CMOS sensor |
| Invertible | Yes |
| Manufacturer | Vaddio |
| Max Resolution | 1080p 60 |
| Minimum Illumination | 1 Lux (F1.6) |
| OneLINK Compatibility | No |
| Output Ports | HSDS |
| Pan and Tilt Range | Pan: ±150°Tilt: +90° to -30° |
| Pan and Tilt Speed | 0.35°/sec - 120°/sec |
| Pixels | 8.51 Megapixel |
| Power Cord | US Cord |
| Power Type | EZ Power |
| Preset Positions | 16 Custom Home Position |
| PTZ Motors | Silent BLDC Direct Drive Motors |
| Quick-Connect Compatibility | No |
| Signal Type | HSDS |
| Solution Type | Camera Only |
| TAA Compliant | Yes |
| Tri-Sync Motion | Yes |
| UPC | 840077502874 |
| White Balance | AutoManualOne Push |
| Zoom | 30x zoom, 20x optical zoom + 10x IntelliZoom |
| Certifications | CEFCCTAA |
| Warranty | 3 years |
Resources
You'll need these with it
RoboSHOT 12E AVBMP
999-99000-500$4,742.10
Suspended Ceiling Mount for Vaddio Cameras
535-2000-206$141.30
QuickCAT Universal Suspended Ceiling Camera Mount
999-82000-000$675.90
Thin Profile Wall Mount for RoboSHOT PTZ Cameras
535-2000-240$177.30
IN-Wall Enclosure for RoboSHOT PTZ Cameras
999-2225-118$351.90
AV Bridge MATRIX PRO
999-8230-000$5,975.10
Thin Profile Wall Mount Long
535-2000-245$177.30
Thin Profile Wall Mount Tall
535-2000-246$177.30
DomeVIEW HD Indoor Pendant Dome Enclosure for RoboSHOT and HD-Series PTZ Cameras
998-9100-200$1,002.60
DomeVIEW HD Outdoor Pendant Dome Enclosure for RoboSHOT and HD-Series PTZ Cameras
998-9200-200$1,205.10
Offset Drop-Down Mount for RoboSHOT and HD-Series PTZ Cameras
535-2000-296$443.70
Questions about this part
What is the zoom capability of the RoboSHOT 30E AVBMP?
This camera features a 20x optical zoom combined with Vaddio's 10x IntelliZoom™ image processing for high-quality digital magnification.
How do I remotely control the RoboSHOT 30E AVBMP camera?
Control is possible via a built-in web-based user interface, IR remote, joystick, RS232, Telnet, or trigger.
Can this camera be used in low-light environments?
Yes, the 1/2.5-type Exmor R CMOS sensor provides enhanced light-gathering and wide dynamic range for better detail in uneven lighting.
What mounting options are available for this camera?
This SKU includes a thin profile wall mount. Other options include the 535-2000-240 Thin Profile Wall Mount, 535-2000-245 Long, or 535-2000-246 Tall.
What is included in the RoboSHOT 30E AVBMP package?
The package includes the RoboSHOT 30E camera, a thin profile wall mount with hardware and manual, a quick-start card, and a Vaddio IR Remote Commander.
