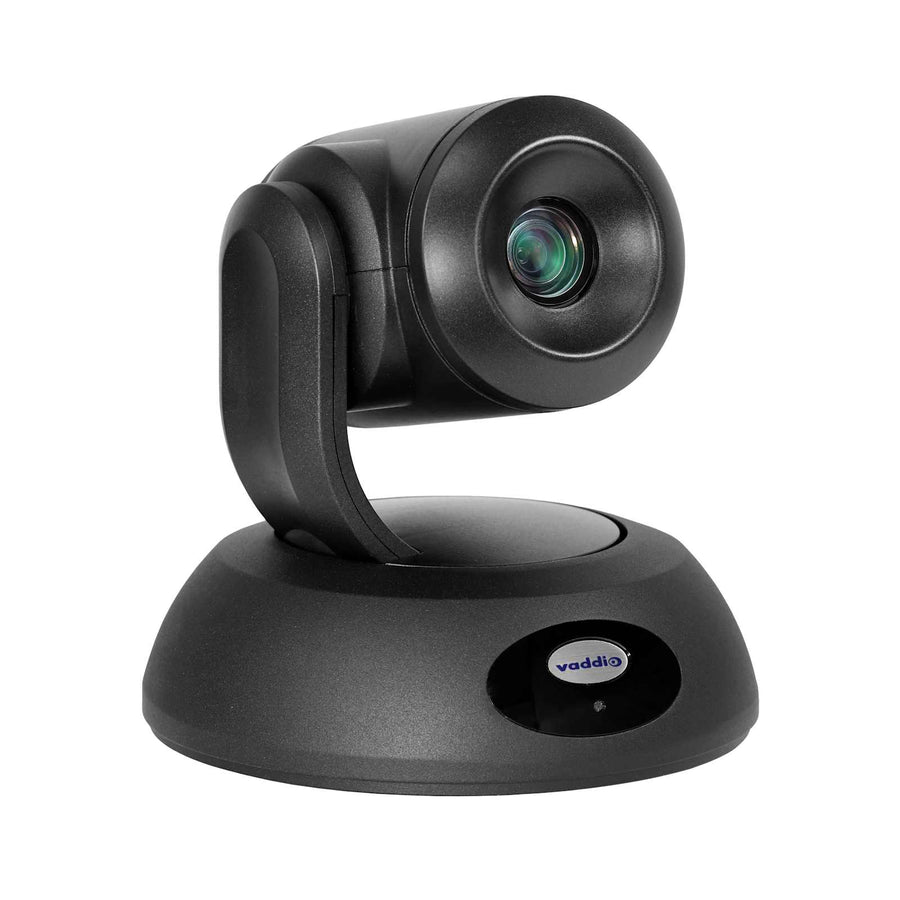

RoboSHOT 12E AVBMP
Professional PTZ camera with 12x optical zoom, 1/2.5-type Exmor R CMOS sensor, and Tri-Sync Motion technology
The Vaddio RoboSHOT 12E AVBMP is a professional A/V presentation camera specifically engineered for deployment in small to medium rooms, including conference rooms, training rooms, and classrooms. This camera is designed to be powered by the AV Bridge MATRIX PRO and is not intended for use as a stand-alone camera. It features a 1/2.5-type Exmor R CMOS sensor that works alongside advanced image signal processing to deliver sharp 1080p/60 video, even in environments with dim lighting. The 70.2° wide field of view ensures broad coverage for diverse seating arrangements. This TAA compliant unit utilizes silent BLDC direct drive motors and Vaddio’s Tri-Synchronous Motion technology to enable ultra-smooth, natural camera movement across all three axes simultaneously. For remote management, the built-in web-based user interface allows administrators to control the camera from anywhere on the IP network. Installation is streamlined via the Vaddio Deployment Tool, which assists in managing hundreds of conference rooms. The camera supports several control methods, including an IR Remote Commander, joystick, RS232, Telnet, and the Web UI. With 16 custom home preset positions and an 8.51 Megapixel sensor, the RoboSHOT 12E AVBMP provides the precision required for professional high-definition video conferencing.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 6.75 in (17.1 cm) |
| Height | 6.94 in (17.6 cm) |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Product Weight | 4.85 lbs (2.2 kg) |
| Shipping Dimensions | 14" x 14" x 18" (355.6 x 355.6 x 457.2 mm) |
| Shipping Weight | 11 lbs (5 kg) |
| Width | 7.05 in (17.9 cm) |
| 3rd Party Control | RS232Telnet |
All other specifications 34
| Browser-based User Interface for Remote Control | Built-in |
| Camera Type | PTZ |
| Color | Black |
| Compatible With | Vaddio |
| Control Method | IR RemoteJoystickRS232TelnetWeb UI |
| Estimated Room Size | Medium RoomSmall Room |
| Field of View | 70.2° Wide End to 6.8° Tele End |
| Field of View Wide | Greater than 70 |
| Focus System | AutoManual |
| Gain | AutoManual |
| Image Sensor Type | 1/2.5-type Exmor R CMOS sensor |
| Invertible | Yes |
| Manufacturer | Vaddio |
| Max Resolution | 1080p 60 |
| Minimum Illumination | 1 Lux (F1.6) |
| OneLINK Compatibility | No |
| Output Ports | HSDS |
| Pan and Tilt Range | Pan: ±150°Tilt: +90° to -30° |
| Pan and Tilt Speed | 0.35°/sec - 120°/sec |
| Pixels | 8.51 Megapixel |
| Power Cord | US Cord |
| Power Type | EZ Power |
| Preset Positions | 16 Custom Home Position |
| PTZ Motors | Silent BLDC Direct Drive Motors |
| Quick-Connect Compatibility | No |
| Signal Type | HSDS |
| Solution Type | Camera Only |
| TAA Compliant | Yes |
| Tri-Sync Motion | Yes |
| UPC | 840077502577 |
| White Balance | AutoManualOne Push |
| Zoom | 12x |
| Certifications | CEFCCTAA |
| Warranty | 3 years |
Resources
You'll need these with it
AV Bridge MATRIX PRO
999-8230-000$5,975.10
Suspended Ceiling Mount for Vaddio Cameras
535-2000-206$141.30
QuickCAT Universal Suspended Ceiling Camera Mount
999-82000-000$675.90
Thin Profile Wall Mount for RoboSHOT PTZ Cameras
535-2000-240$177.30
Vaddio Device Controller
999-42300-000$855.00
IN-Wall Enclosure for RoboSHOT PTZ Cameras
999-2225-118$351.90
Thin Profile Wall Mount Long
535-2000-245$177.30
RoboSHOT 30E AVBMP
999-99100-500$5,454.00
Thin Profile Wall Mount Tall
535-2000-246$177.30
DomeVIEW HD Indoor Pendant Dome Enclosure for RoboSHOT and HD-Series PTZ Cameras
998-9100-200$1,002.60
DomeVIEW HD Outdoor Pendant Dome Enclosure for RoboSHOT and HD-Series PTZ Cameras
998-9200-200$1,205.10
Offset Drop-Down Mount for RoboSHOT and HD-Series PTZ Cameras
535-2000-296$443.70
Questions about this part
Will the RoboSHOT 12E AVBMP work as a stand-alone camera?
No, this camera is designed specifically to be powered by the AV Bridge MATRIX PRO and requires that connection for operation.
What is the field of view for the RoboSHOT 12E?
The camera provides a 70.2° wide field of view at the wide end, which transitions to a 6.8° tele end through the 12x optical zoom.
Can I control the RoboSHOT 12E via a web browser?
Yes, the camera includes a built-in web-based user interface, allowing for remote management and control over your IP network.
What control interfaces are supported by the RoboSHOT 12E AVBMP?
You can manage the camera using an IR Remote, a joystick, RS232, Telnet, or the integrated Web UI.
Does this camera support custom preset positions?
Yes, the RoboSHOT 12E supports up to 16 custom home position preset settings for efficient camera movement.
