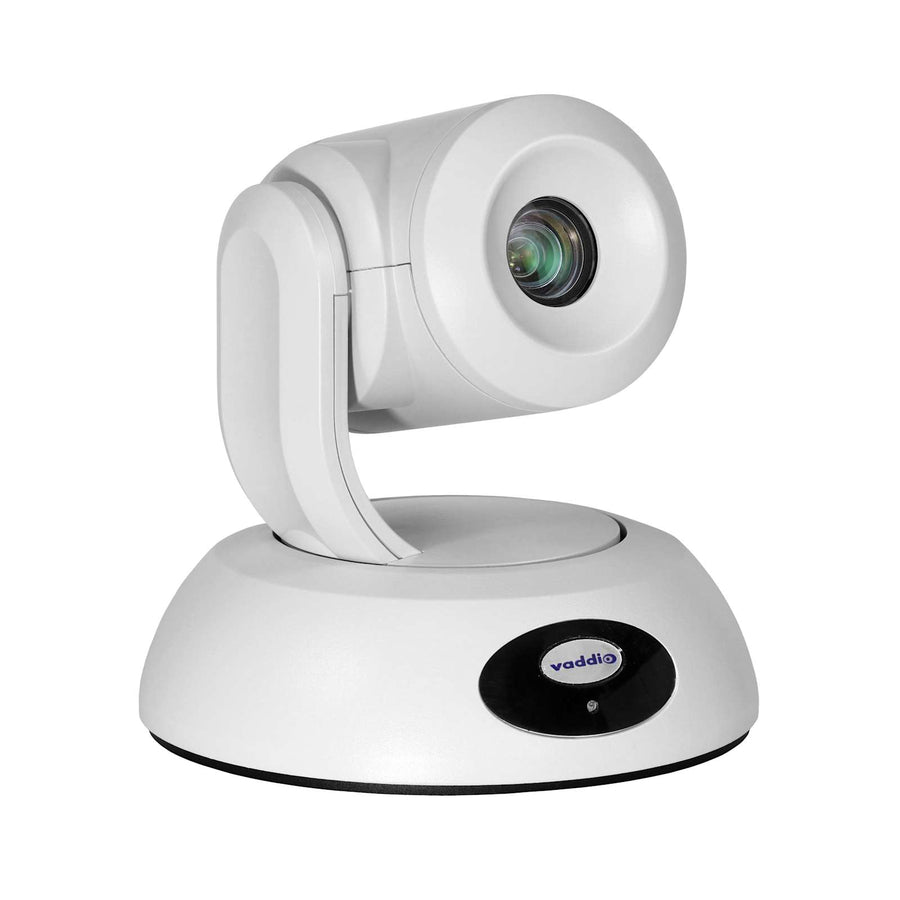

RoboSHOT 12E HDMI
White PTZ camera with 12x optical zoom, 1080p 60 video, and simultaneous HDMI and IP H.264 streaming
The Vaddio RoboSHOT 12E HDMI in white is a professional PTZ camera designed for small to medium spaces, including conference rooms, training rooms, and classrooms. It features an 1/2.5-type Exmor R CMOS sensor that delivers 1080p 60 high-definition video, even in low light, with a minimum illumination of 1 Lux (F1.6). This camera is ideal for environments requiring a wide angle of view, offering a 70.2° field of view at the wide end. It utilizes Tri-Sync Motion technology for smooth, natural camera movement across all three axes. This unit provides simultaneous HDMI and IP H.264 streaming, making it suitable for both local displays and remote streaming to platforms like YouTube or Facebook. Control is highly flexible via a built-in web UI, RS232, Telnet, an IR remote, or a joystick. The camera's 12x optical zoom is supported by auto and manual focus and gain settings. The white finish makes this a clean option for professional installations, and the unit is TAA compliant.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 6.75 in (17.1 cm) |
| Height | 6.94 in (17.6 cm) |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Product Weight | 4.85 lbs (2.2 kg) |
| Shipping Dimensions | 14" x 14" x 18" (355.6 x 355.6 x 457.2 mm) |
| Shipping Weight | 12 lbs (5.4 kg) |
| Width | 7.05 in (17.9 cm) |
| 3rd Party Control | RS232Telnet |
All other specifications 36
| Browser-based User Interface for Remote Control | Built-in |
| Camera Type | PTZ |
| Color | White |
| Compatible With | Vaddio |
| Control Method | IR RemoteJoystickRS232TelnetWeb UI |
| Estimated Room Size | Medium RoomSmall Room |
| Field of View | 70.2° Wide End to 6.8° Tele End |
| Field of View Wide | Greater than 70 |
| Focus System | AutoManual |
| Gain | AutoManual |
| Image Sensor Type | 1/2.5-type Exmor R CMOS sensor |
| Invertible | Yes |
| Manufacturer | Vaddio |
| Max Resolution | 1080p 60 |
| Minimum Illumination | 1 Lux (F1.6) |
| OneLINK Compatibility | No |
| Output Ports | HDMIIP Streaming |
| Pan and Tilt Range | Pan: ±150°Tilt: +90° to -30° |
| Pan and Tilt Speed | 0.35°/sec - 120°/sec |
| Pixels | 8.51 Megapixel |
| Power Cord | US Cord |
| Power Supply | PoE+ Midspan Power Injector |
| Power Type | PoE+ |
| Preset Positions | 16 Custom Home Position |
| PTZ Motors | Silent BLDC Direct Drive Motors |
| Quick-Connect Compatibility | No |
| Signal Type | HDMIIP StreamingRS 232 |
| Solution Type | Camera Only |
| Special Features | Vaddio Special Offer |
| TAA Compliant | Yes |
| Tri-Sync Motion | Yes |
| UPC | 840077503543 |
| White Balance | AutoManualOne Push |
| Zoom | 12x |
| Certifications | CEFCCTAA |
| Warranty | 3 years |
Resources
You'll need these with it
Vaddio Device Controller
999-42300-000$855.00
Suspended Ceiling Mount for Vaddio Cameras
535-2000-206$141.30
QuickCAT Universal Suspended Ceiling Camera Mount
999-82000-000$675.90
IN-Wall Enclosure for RoboSHOT PTZ Cameras
999-2225-118$351.90
Thin Profile Wall Mount Tall
535-2000-246$177.30
RoboSHOT 30E HDMI
999-99430-000$3,150.00
Thin Profile Wall Mount Long
535-2000-245$177.30
DomeVIEW HD Indoor Flush Dome Enclosure for RoboSHOT and HD-Series PTZ Cameras
998-9000-200$1,002.60
DomeVIEW HD Outdoor Pendant Dome Enclosure for RoboSHOT and HD-Series PTZ Cameras
998-9200-200$1,205.10
DomeVIEW HD Indoor Pendant Dome Enclosure for RoboSHOT and HD-Series PTZ Cameras
998-9100-200$1,002.60
Offset Drop-Down Mount for RoboSHOT and HD-Series PTZ Cameras
535-2000-296$443.70
Questions about this part
Will the RoboSHOT 12E HDMI fit in my conference room?
This camera is recommended for small to medium rooms, providing a 70.2° wide field of view for optimal coverage in classrooms and training spaces.
Does this camera support simultaneous video output?
Yes, the RoboSHOT 12E HDMI provides simultaneous HDMI and IP (H.264) streaming for local monitoring and remote web distribution.
What power requirements are needed for installation?
The camera is powered via PoE+ and includes a PoE+ Midspan Power Injector in the package to facilitate installation.
How can I control the camera movement remotely?
You can manage the camera through a built-in web user interface over the IP network, or via RS232, Telnet, or an IR remote.
What mounting options are available for this SKU?
This white model is compatible with Vaddio Thin Profile Wall Mounts and various ceiling mount options, such as the 535-2000-246 Tall Thin Profile Wall Mount.
