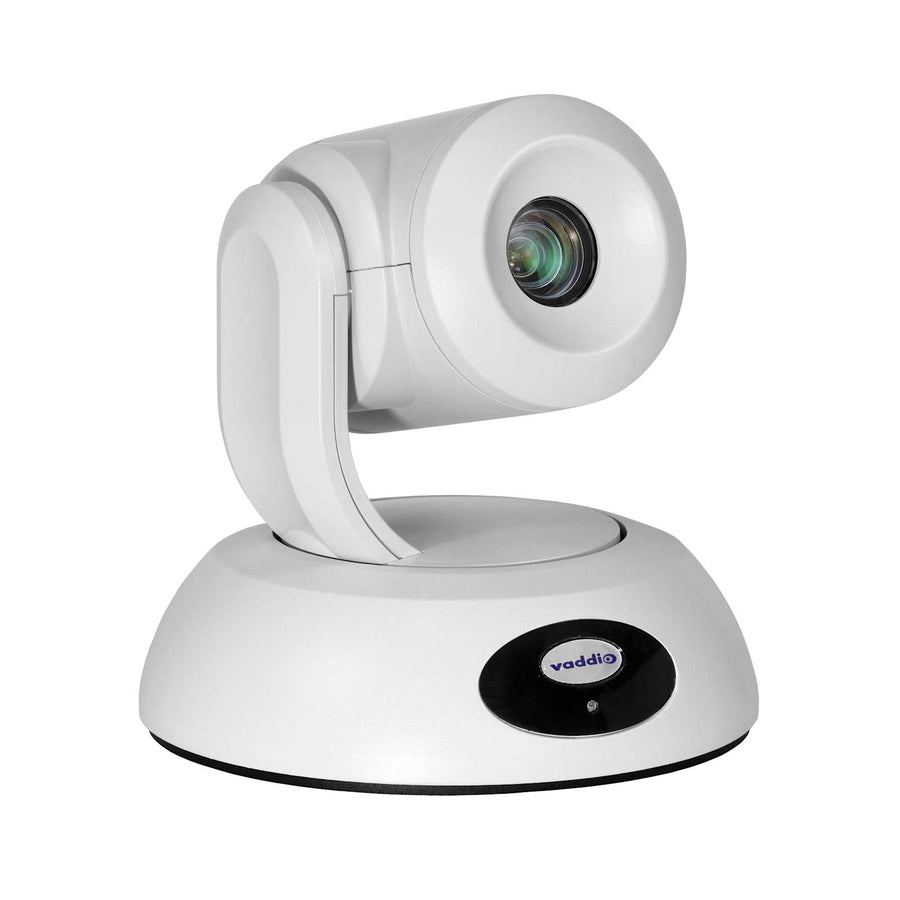

RoboSHOT 12E HDBT
White PTZ camera with 12x optical zoom, 1080p/60 resolution, and simultaneous HDbT, HDMI, and IP streaming
The Vaddio RoboSHOT 12E HDBT is a professional PTZ camera designed for use in small to medium rooms, such as classrooms, training rooms, and conference spaces that require a wide field of view. Featuring a 1/2.5-type Exmor R CMOS sensor with 8.51 Megapixels, this camera produces high-definition 1080p/60 video even in low-light environments with a minimum illumination of 1 Lux (F1.6). It is built for smooth, natural movement using Tri-Sync Motion technology and silent BLDC direct drive motors, allowing for seamless transitions across all three axes during pan (±150°) and tilt (+90° to -30°) operations. This white unit provides massive flexibility through its simultaneous output capabilities: HDbT, HDMI, and IP streaming (RTSP or RTMP with H.264 compression). For long-distance installations, it is natively compatible with OneLINK, allowing for simplified cabling. Integration is straightforward via the built-in web-based user interface for remote management or through RS232 and Telnet control. The camera also supports 16 custom home positions and offers both auto and manual focus, gain, and white balance settings, including a one-push white balance option.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 6.75 in (17.1 cm) |
| Height | 6.94 in (17.6 cm) |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Product Weight | 4.85 lbs (2.2 kg) |
| Shipping Dimensions | 14" x 14" x 18" (355.6 x 355.6 x 457.2 mm) |
| Shipping Weight | 13 lbs (5.9 kg) |
| Width | 7.05 in (17.9 cm) |
| 3rd Party Control | RS232Telnet |
All other specifications 37
| Browser-based User Interface for Remote Control | Built-in |
| Camera Type | PTZ |
| Color | White |
| Compatible With | Vaddio |
| Control Method | IR RemoteJoystickRS232TelnetWeb UI |
| Estimated Room Size | Medium RoomSmall Room |
| Field of View | 70.2° Wide End to 6.8° Tele End |
| Field of View Wide | Greater than 70 |
| Focus System | AutoManual |
| Gain | AutoManual |
| Image Sensor Type | 1/2.5-type Exmor R CMOS sensor |
| Invertible | Yes |
| Manufacturer | Vaddio |
| Max Resolution | 1080p 60 |
| Minimum Illumination | 1 Lux (F1.6) |
| OneLINK Bridge adds | 328 ft (100m) Power Video Control Extension3G SDIAudio MixerHDMIUSB 3.0 |
| OneLINK Compatibility | Native |
| OneLINK HDMI adds | 328ft (100M) Power Video Control ExtensionHDMI |
| Output Ports | HDbTHDMIIP Streaming |
| Pan and Tilt Range | Pan: ±150°Tilt: +90° to -30° |
| Pan and Tilt Speed | 0.35°/sec - 120°/sec |
| Pixels | 8.51 Megapixel |
| Power Cord | US Cord |
| Power Supply | PoE+ Midspan Power Injector |
| Power Type | PoE+ |
| Preset Positions | 16 Custom Home Position |
| PTZ Motors | Silent BLDC Direct Drive Motors |
| Quick-Connect Compatibility | No |
| Signal Type | HDbTHDMIIP Streaming |
| Solution Type | Camera Only |
| TAA Compliant | Yes |
| Tri-Sync Motion | Yes |
| UPC | 840077504083 |
| White Balance | AutoManualOne Push |
| Zoom | 12x |
| Certifications | CEFCCHDBaseTTAA |
| Warranty | 3 years |
Resources
You'll need these with it
Suspended Ceiling Mount for Vaddio Cameras
535-2000-206$141.30
RoboSHOT 30E HDBT OneLINK Bridge PTZ Camera System
999-99630-200$7,023.60
Thin Profile Wall Mount for RoboSHOT PTZ Cameras
535-2000-240$177.30
OneLINK HDMI Extension for Vaddio HDBaseT Cameras
999-1105-043$1,579.50
IN-Ceiling Half-Recessed Enclosure for RoboSHOT PTZ Cameras
999-2225-150$1,075.50
IN-Wall Enclosure for RoboSHOT PTZ Cameras
999-2225-118$351.90
Vaddio Device Controller
999-42300-000$855.00
Polycom Codec Kit for OneLINK HDMI to Vaddio HDBaseT Cameras
999-9545-000$1,629.00
OneLINK Bridge for Vaddio HDBaseT Cameras
999-9595-000$2,741.40
Thin Profile Wall Mount Tall
535-2000-246$177.30
PoE+ Midspan Power Injector
451-0400-055$187.20
RoboSHOT 30E HDBT PTZ Camera
999-99630-000$4,622.40
Questions about this part
Will the RoboSHOT 12E HDBT work with my OneLINK system?
Yes, this camera features native OneLINK compatibility. It can also be paired with Vaddio OneLINK receivers or OneLINK Bridges to extend installation distances and simplify cabling.
What video outputs are available on the RoboSHOT 12E HDBT?
The camera provides simultaneous output through HDMI, HDbT, and IP streaming (H.264) for versatile distribution across various AV systems.
Can I control the camera remotely over my network?
Yes, you can manage the camera via a built-in web-based user interface or through RS232 and Telnet protocols for IT control.
What is the field of view for this PTZ camera?
The camera features a wide field of view ranging from 70.2° at the wide end to 6.8° at the tele end.
What tools and accessories are required for installation?
This package includes a PoE+ Midspan Power Injector and a white thin-profile wall mount. For ceiling or specialized mounts, see compatible accessories like the 535-2000-240 wall mount.
