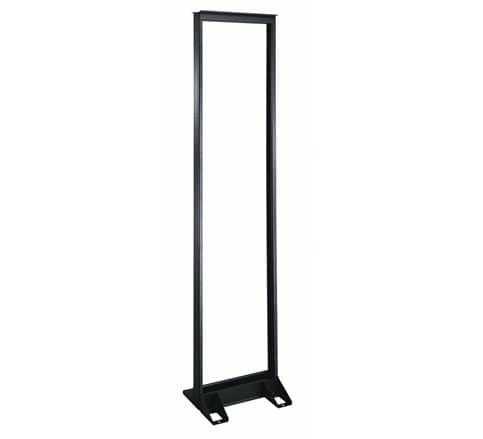

RL Series 2 Post Steel Open Frame Rack - RL10-45
45 RU 2-post open frame rack with 1600 lbs capacity, 10-32 threaded rails, and a self-aligning assembly design
The RL10-45 is a 45 RU 2-post open frame rack from the Middle Atlantic RL Series, designed for high-density equipment integration. Built with 11-gauge steel channels, this rack provides a substantial 1600 lbs weight capacity to support heavy networking and AV components. The construction features a self-squaring, self-leveling design that facilitates rapid assembly on-site. For cable management, the top rails are engineered to accommodate standard cable ladders. The rails utilize 10-32 threaded mounting with numbered spaces to assist in equipment positioning. This TAA compliant unit is manufactured in the USA and ships flat to maximize shipping efficiency. To facilitate vertical power strip installation, the PB-5A power bracket is required. This rack is part of a series that includes different height options, such as a 38 RU version, allowing for scalability in various installation environments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 15.25 in (38.7 cm) |
| Height | 84.62 in (214.9 cm) |
| Rack Units | 45 RU |
| Shipping Weight | 40 lbs (18.1 kg) |
| UL Load Capacity | 400 lbs (181.4 kg) |
| Usable Depth | 3 in (7.6 cm) |
| Usable Height | 78.75 in (200 cm) |
| Weight Capacity | 1600 lbs (725.7 kg) |
All other specifications 7
| Width | 19.62 in (49.8 cm) |
| Federal Ops Country of Origin | USA |
| Rack Rail Type | 10-32 |
| TAA Compliant | Yes |
| UPC | 656747014376 |
| Certifications | TAAUL Listed |
| Patents | www.legrandav.com/patents |
Resources
You'll need these with it
Lace Bar 2 Inch Offset, L-Shaped - 10 Pieces
LBP-2A$105.30
PDT Low Profile Vertical Power Strip, 10 Outlet, 15A
PDT-1015C-NS$253.80
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
2 RU Plastic Cable Manager, 3 Inches Deep
PHCM-2-3$61.20
45 RU Cable Duct , 6 Inches Wide - Single Duct
VCD-6-45-SC$1,533.60
PDT Low Profile Vertical Power Strip, 6 Outlet, 15A Basic Surge
PDT-615C$286.20

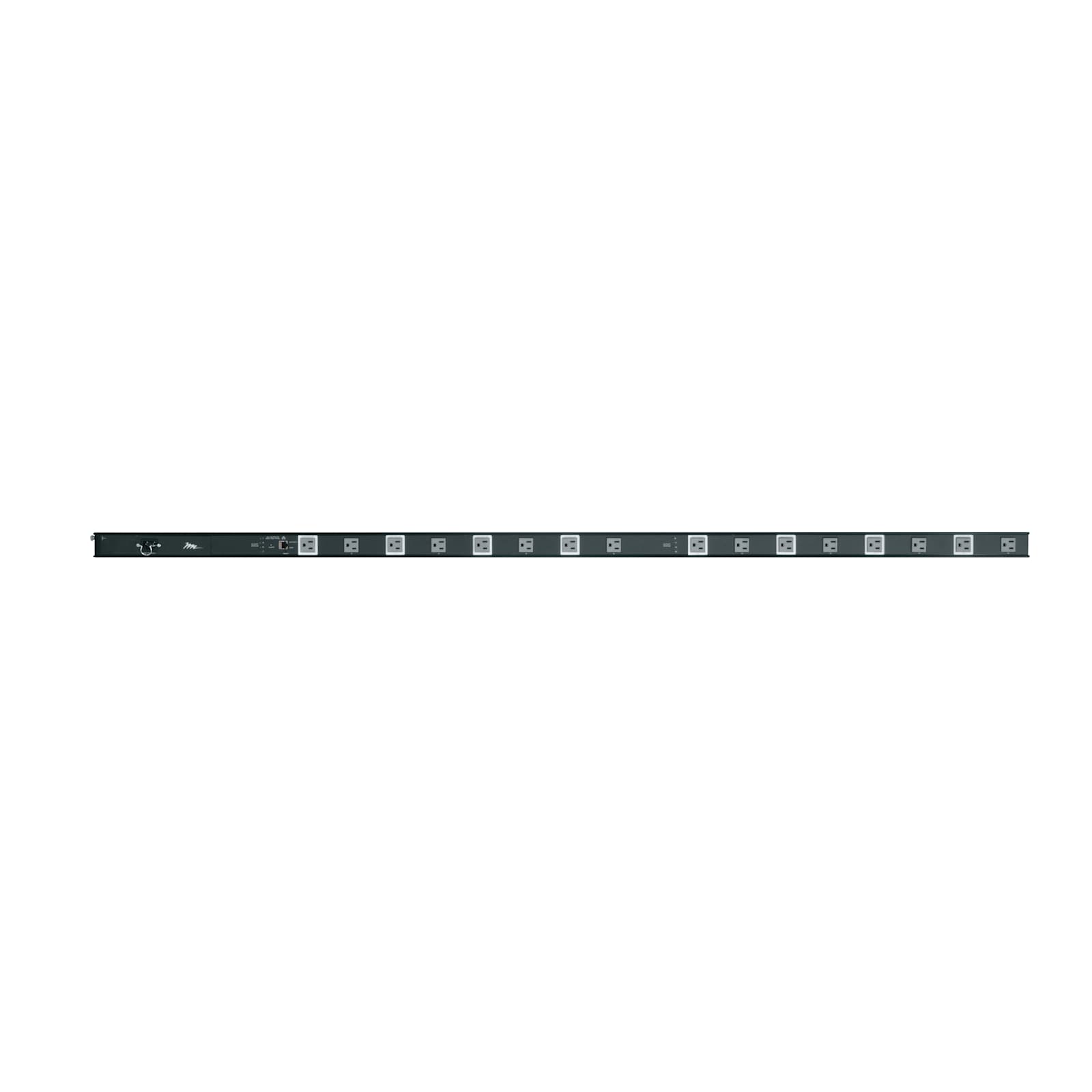

Select Series PDU with RackLink™, 16 Outlet
RLNK-1615V$715.50
1 RU Plastic Cable Manager, 4 Inches Deep
PHCM-1-4$54.90
45 RU Cable Duct for RLA Racks
RLA-CC$476.10
PDT Low Profile Vertical Power Strip, 14 Outlet, 15A Basic Surge
PDT-1415C$330.30
45 RU Cable Duct 6 Inches Wide - Dual Duct
VCD-6-45-DC$1,913.40
Select Series PDT Low Profile Vertical Power Strip with Dual Circuit, 10 Outlet, 20A Hardwired
PDT-2X520$418.50
Questions about this part
What is the weight capacity of the RL10-45?
The RL10-45 has a total weight capacity of 1600 lbs (725.7 kg) and a UL load capacity of 400 lbs (181.4 kg).
Does the RL10-45 include the hardware needed for installation?
The rack ships with 50 rack screws to assist with equipment mounting.
How do I mount vertical power strips in this rack?
To mount vertical power strips, you must use the PB-5A power bracket.
What is the difference between the RL10-45 and other RL Series racks?
This specific SKU is the 45 RU model; the RL Series is also available in a 38 RU version.
Can I use this rack for submittals and CAD work?
Yes, you can access the RL Series 3 Part Specification (docx) and 3D CAD files through the product resource links.
