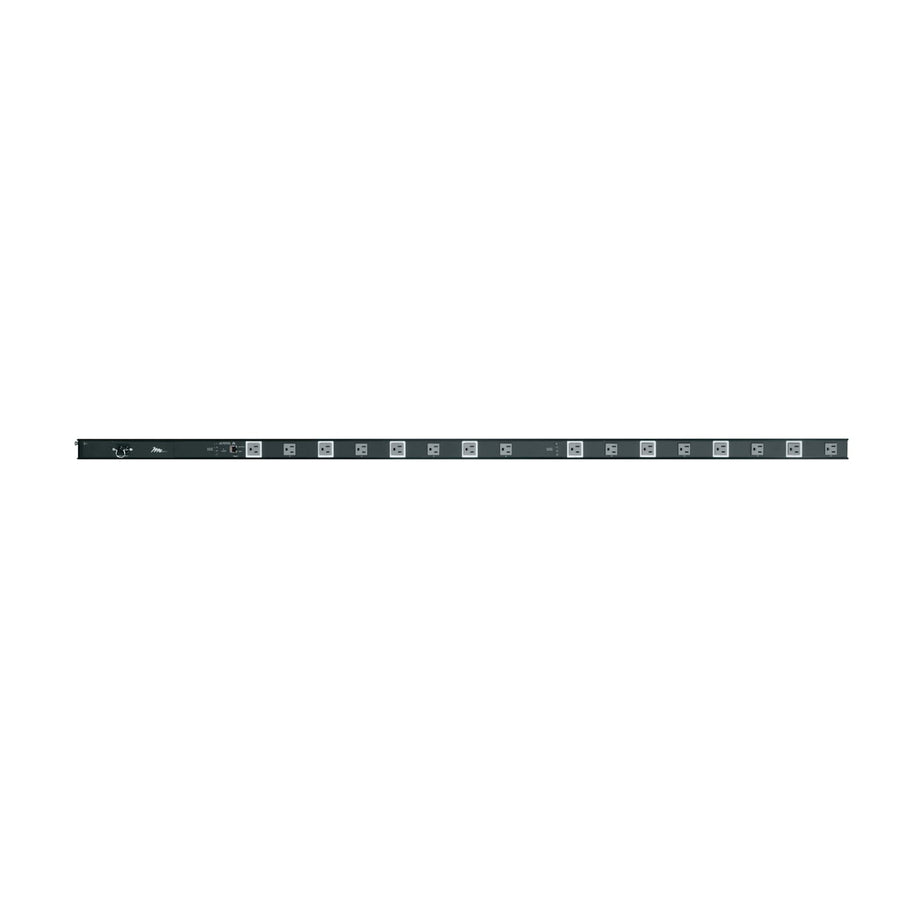

Select Series PDU with RackLink™, 16 Outlet
Vertical 16-outlet PDU with 8 individually controlled outlets and RackLink™ remote power monitoring
The Middle Atlantic RLNK-1615V Select Series PDU with RackLink™ provides intelligent power distribution and remote monitoring for professional AV installations. This vertical mounting PDU features 16 IEC outlets, 8 of which offer individual IP outlet control for remote management. By utilizing the RackLink™ Cloud, installers can manage power distribution across multiple sites from a centralized dashboard, whether managing a single conference room or an entire campus. This model supports remote sequencing with user-selectable delays to ensure an optimal power-up or shut-down progression for connected equipment. The RLNK-1615V includes basic surge protection to safeguard devices from power anomalies and is ETL listed for safety. For advanced automation, the unit supports IP AutoPing and recovery to improve system reliability. This PDU is designed to save rack units (RU) by mounting vertically, and it is compatible with Crestron Certified Modules and Q-SYS Certified Plug-ins via Control Concepts software.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Amps | 15 Amp |
| Cord Length | 9 ft (2.7 m) |
| Depth | 1.63 in (4.1 cm) |
| Height | 69.61 in (176.8 cm) |
| Shipping Weight | 3.65 lbs (1.7 kg) |
| Width | 1.89 in (4.8 cm) |
| Available Internationally | No |
| Cable Type | IEC |
All other specifications 10
| Finish | Black Anodized |
| Mounting Style | Vertical |
| Number of Circuits | 1 |
| Outlet Control Type | 8 |
| Outlet Count | 16 |
| Plug Type | 5-15P |
| Surge Protection Type | Basic |
| TAA Compliant | No |
| UPC | 656747275326 |
| Certifications | ETL Listed |
Resources
Questions about this part
How many outlets can I control remotely with the RLNK-1615V?
This PDU features 16 total outlets, 8 of which provide individual IP outlet control via the RackLink™ interface.
Will this PDU work with my existing Crestron or Q-SYS control system?
Yes, this model is compatible with Crestron Certified Modules and Q-SYS Certified Plug-ins developed by Control Concepts.
What is the difference between this and the 10-outlet version?
The RLNK-1615V provides 16 total IEC outlets, whereas the RLNK-1015V is the 10-outlet variant in the same series.
Can I manage these PDUs from a remote location?
Yes, using the RackLink™ Cloud, you can monitor and manage deployed Select Series PDUs globally from a single dashboard.
What tools are required for installation of the RLNK-1615V?
The installation instructions list the specific tools you will need to complete the vertical mounting and setup process.
