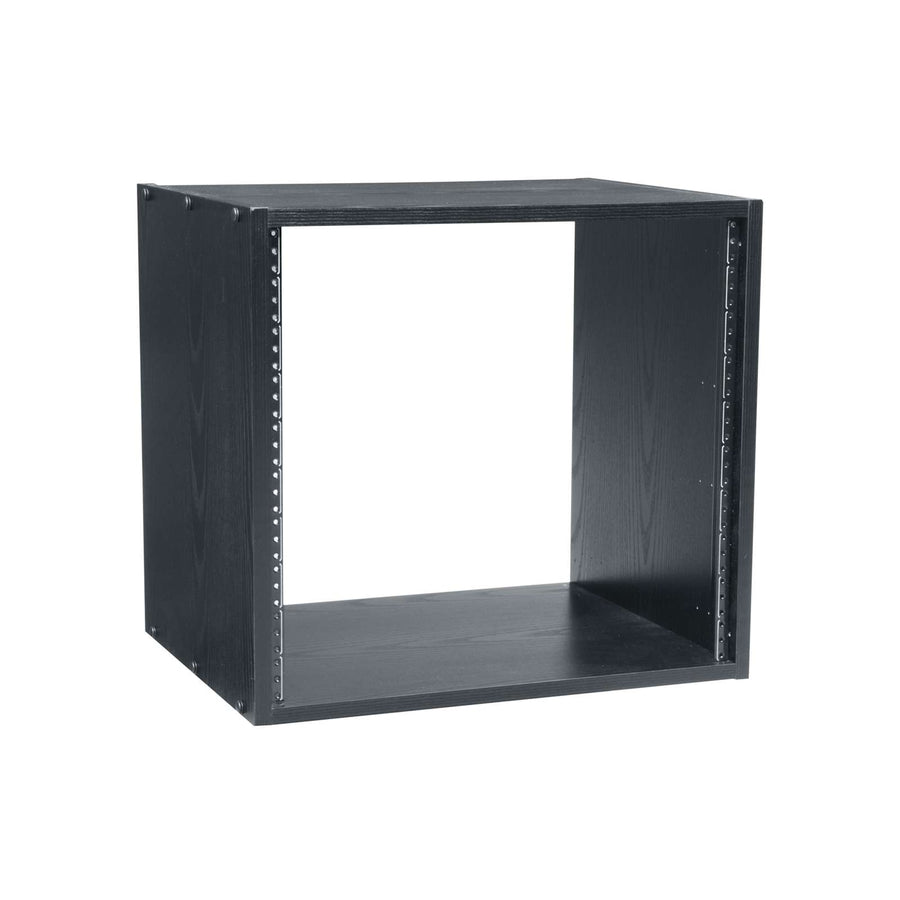

RK Series Black Laminate Rack - RK12
12 RU black wood grain laminate rack with 200 lbs capacity and knockdown assembly design
The Middle Atlantic RK12 is a 12 RU black wood grain laminate rack designed for efficient deployment in professional installations. Featuring a knockdown rack type, this unit is shipped flat to simplify transit and reduce logistics complexity. The structure supports a weight capacity of 200 lbs (90.7 kg) and utilizes 10-32 threaded front rackrails for standard equipment mounting. This rack provides a usable height of 21 in (53.3 cm) and a usable depth of 15.41 in (39.1 cm) within its 22.48 in (57.1 cm) total height. It is TAA compliant for government and regulated contract projects. For enhanced mobility, the RKW caster kit can be added to the chassis.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 15.91 in (40.4 cm) |
| Height | 22.48 in (57.1 cm) |
| Rack Units | 12 RU |
| Shipping Weight | 31.5 lbs (14.3 kg) |
| Usable Depth | 15.41 in (39.1 cm) |
| Usable Height | 21 in (53.3 cm) |
| Weight Capacity | 200 lbs (90.7 kg) |
| Width | 20.4 in (51.8 cm) |
All other specifications 5
| Finish | Black Wood Grain |
| Material | Wood |
| Rack Rail Type | 10-32 |
| Rack Type | Knockdown |
| UPC | 656747014062 |
Resources
You'll need these with it
Rackmount Power, 9 Outlet, 15A, Basic Surge Protection - 9 ft Cord
PD-915R$223.20
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
100 CFM Fan Panel, 27dB
UQFP-4$630.90
Rackmount Power, 8 Outlet, 15A, Basic Surge Protection
PD-815R-PL$234.00
Caster Kit for Laminate Racks Heavy Duty
RKW-HD$135.00
Caster Kit for Laminate Racks
RKW$92.70

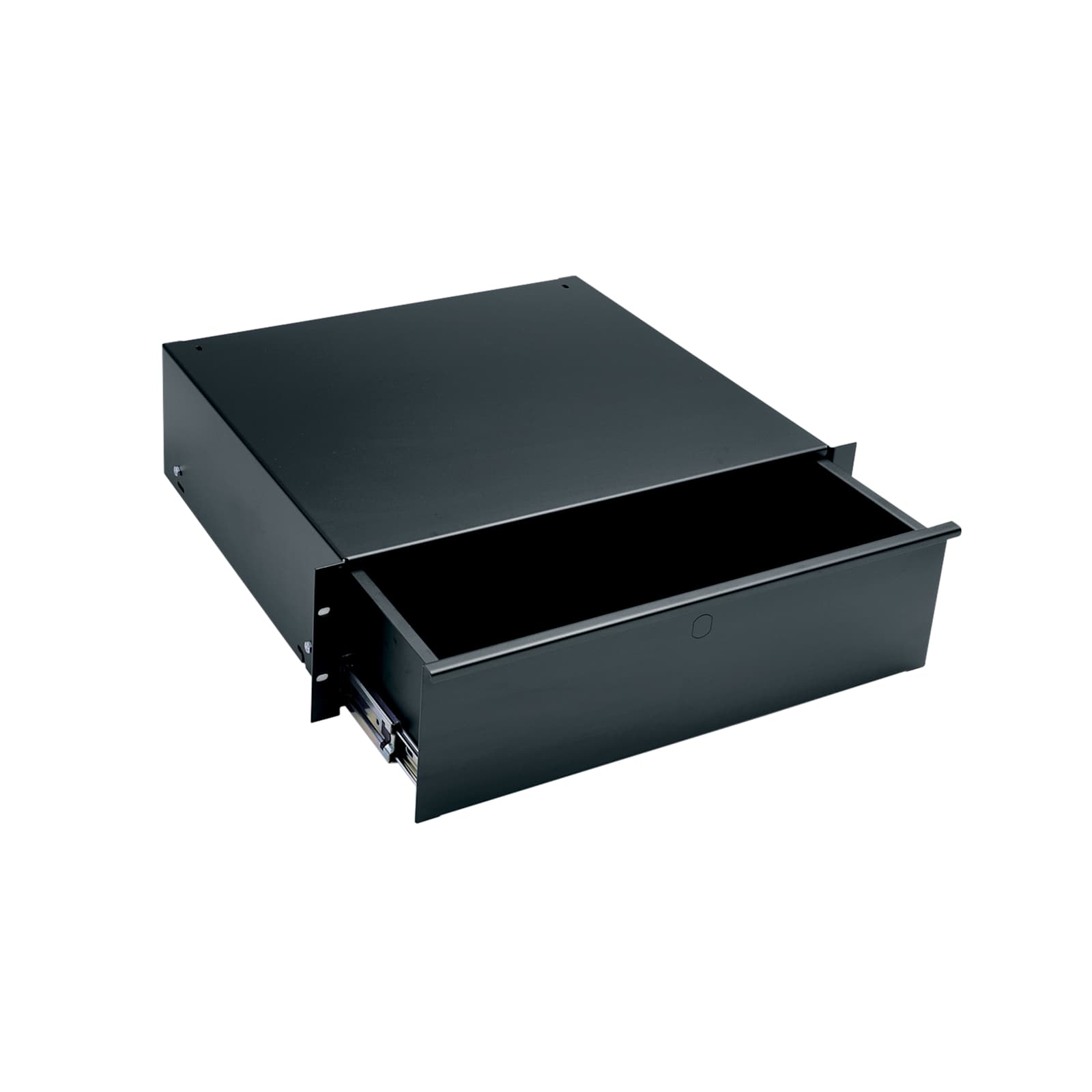

3 RU Utility Rack Drawer
UD3$234.00
12 RU Rackrail 10-32 for RK,MBRK,OBRK,BRK Racks
RK-RR12$57.60
12 RU Glass Door for RK, BRK, OBRK and MBRK Racks
RK-GD12$251.10
2 RU Rack Vent Panel, Slotted with 20% Open Area
VTP-2$50.40
USC Universal Sequencing Controller 1 Space Sequencing Controller
USC-6R$1,044.90
MPR Module 15A, Controlled Stand-Alone
RLM-15-1CA$288.00
Questions about this part
What is the usable depth of the RK12 rack?
The RK12 provides a usable depth of 15.41 in (39.1 cm) and a total depth of 15.91 in (40.4 cm).
What accessories can I add to the RK12 for mobility?
You can add the RKW caster kit to this series to provide mobility for the laminate rack.
Does the RK12 come with glass doors or power options?
The RK-GD12 glass door is compatible with this series, and you can install power options like the PD-915R or RLM series modules.
Is the RK12 suitable for TAA compliant projects?
Yes, the RK12 is TAA compliant and meets PEP requirements.
What is the assembly requirement for this rack?
This is a knockdown rack that arrives flat for shipment; it is easily assembled using the included hardware.
