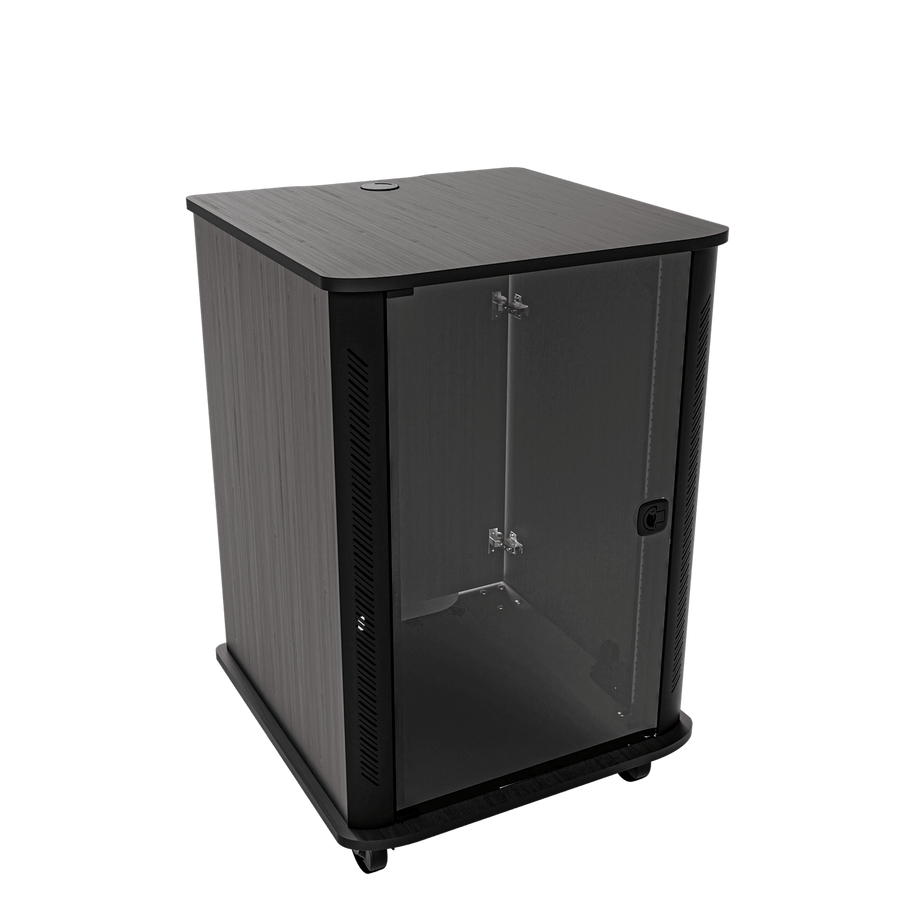

RFR Series Reference Furniture Rack - RFR-2028A3
Mobile 20 RU reference furniture rack in Asian Night wood finish with 350 lbs UL load capacity and locking glass door
The Middle Atlantic RFR-2028A3 is a mobile presentation furniture rack from the RFR Reference Series, designed for professional integration in high-traffic environments. This 20 RU rack features a wide-body design constructed from wood with an Asian Night finish. It is built for stability and longevity, utilizing internal steel bracing and 3" bolt-through casters to support a UL load capacity of 350 lbs (158.8 kg). The unit includes a locking glass front door for equipment security and features 10-32 threaded adjustable front rails. Designed to work with passive cooling, the RFR-2028A3 also accepts the RFR-CABCOOL50 50 CFM RFR Cabinet Cooler as an option. This furniture rack ships fully assembled, providing an immediate solution for professional AV installs.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 28.25 in (71.8 cm) |
| Height | 41.95 in (106.6 cm) |
| Panel Width | 19 in (48.3 cm) |
| Rack Units | 20 RU |
| Shipping Weight | 150 lbs (68 kg) |
| UL Load Capacity | 350 lbs (158.8 kg) |
| Usable Depth | 23.31 in (59.2 cm) |
| Usable Height | 35 in (88.9 cm) |
All other specifications 7
| Width | 27.3 in (69.3 cm) |
| Color | Asian Night |
| Material | Wood |
| Monitor Mounting | Yes |
| Rack Rail Type | 10-32 |
| UPC | 656747408090 |
| Certifications | UL Listed |
Resources
You'll need these with it
1 RU Mounting Rackshelf
UTR1$58.50
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
Rackmount Power, 9 Outlet, 15A, Basic Surge Protection - 9 ft Cord
PD-915R$223.20
16 RU Rackrail 10-32 for RFR Series
RFR-ERRK-16$88.20
50 CFM RFR Cabinet Cooler
RFR-CABCOOL50$419.40
1 RU Select Series UPS Backup Power, 1000VA
UPS-S1000R$1,377.00
1 RU Sliding Rackshelf
SS$254.70
Rackmount Power/Cooling, 11 Outlet, 20A & 2-Stage Surge
PDCOOL-1120R$918.00
1 RU Laminate Sliding Rackshelf
SSL$173.70

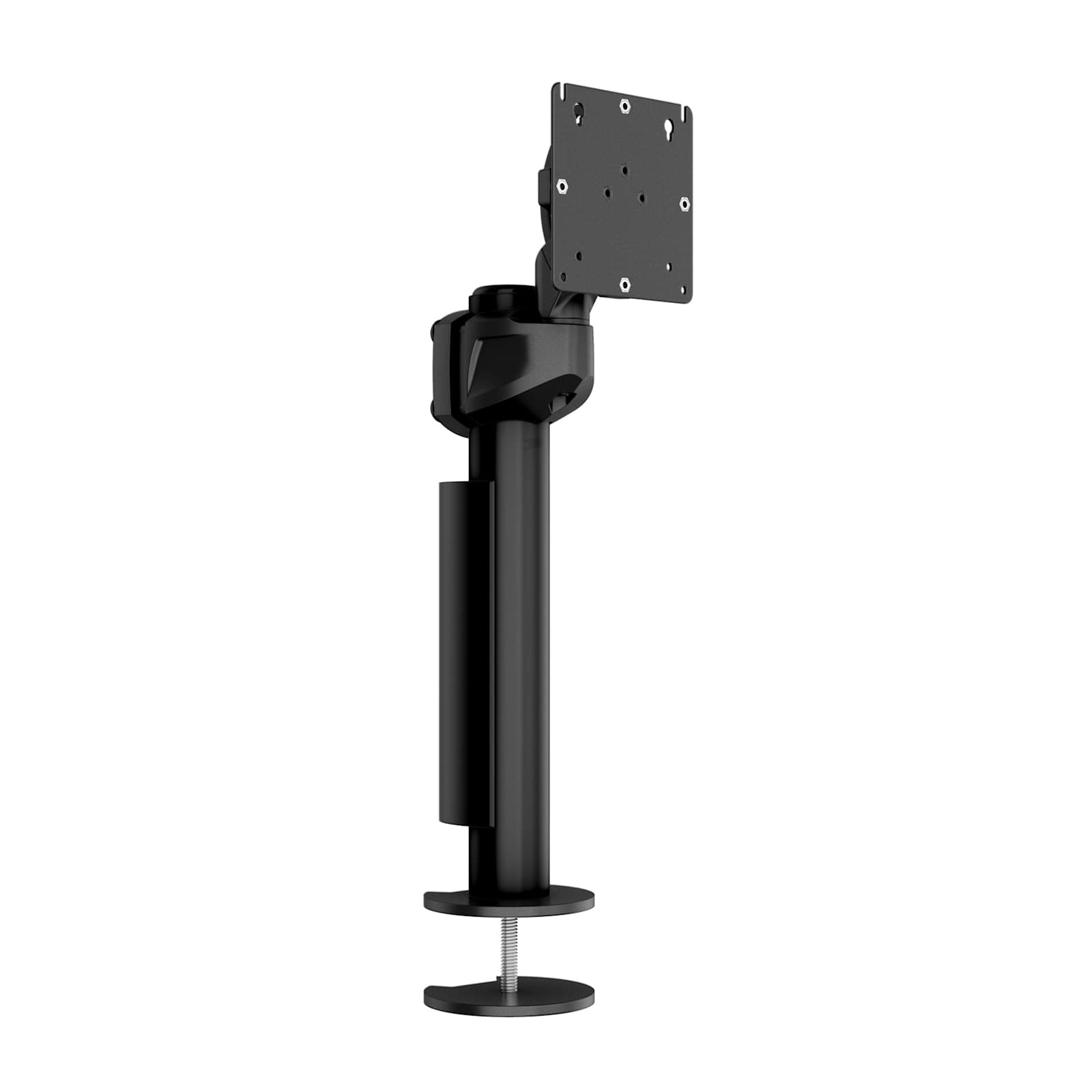

MM-P Series Single Monitor Pole Mount
MM-P-100-BK$224.10

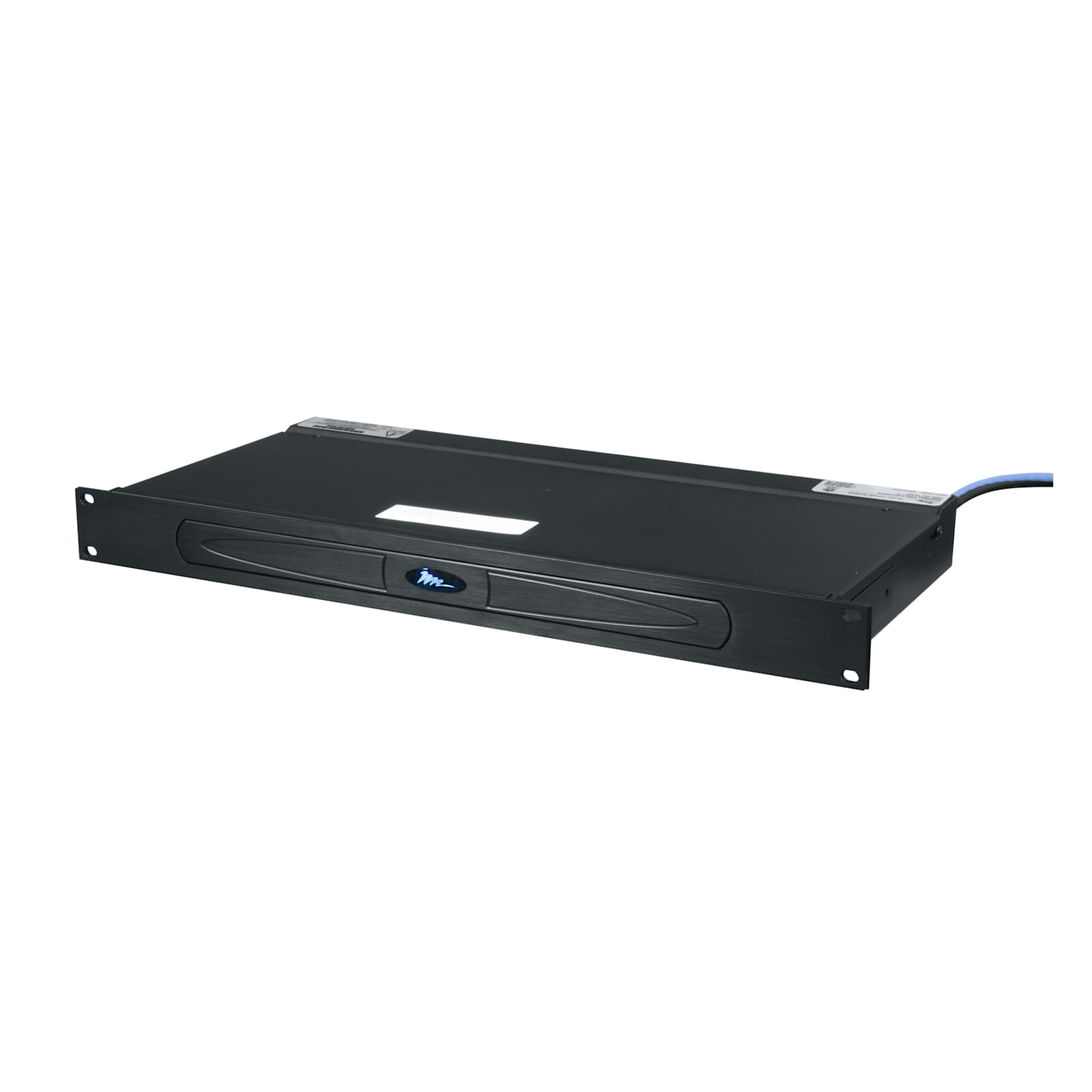

Rackmount Power/Lighting, 8 Outlet, 15A
PDLT-815RVA$648.90
Questions about this part
Can I mount a monitor on the RFR-2028A3?
Yes, this rack supports monitor mounting. You can add an optional MM-P Series Single Monitor Pole Mount to hold most monitors up to 32”.
What is the usable space inside the RFR-2028A3?
The RFR-2028A3 provides a usable height of 35 in (88.9 cm) and a usable depth of 23.31 in (59.2 cm).
